Head Coil Field Replaceable Units

Overview

This document identifies field replaceable units and additional accessories for the GE 1.5T Hde Split Head Coil..

Field Replaceable Units

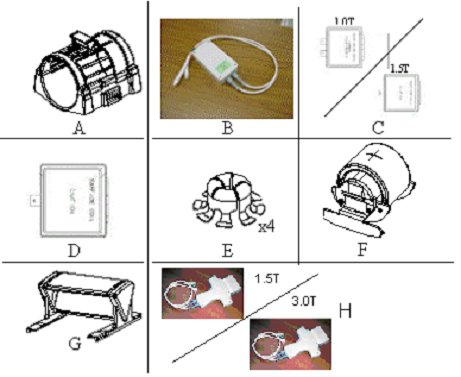

Figure 1. Field Replaceable Units
Table 1. Field Replaceable Units
Label Description GE Part# Comment
A1.5T ASSEMBLY HEAD COIL 2341973
BQUICK DISCONNECT BOX 1.5T(W/CABLE)2336560Not Used for HDe 1.5T System
CEXTREMITY ADAPTOR WITH COIL ID2383622Not Used for HDe 1.5T System
DSURFACE COIL ADAPTOR WITH COIL ID2383623Not Used for HDe 1.5T System
ESPRING CLIP KIT2355094
FDQA-HEAD SNR PHANTOM2321556
GMIRROR2145391
HQHTR BOX 1.5T(W/CABLE) (FOR HDx/Hde)5140886
