• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30FF8F20GYZ
  • Topic ID: id_13106029 Version: 4.0
  • Date: Feb 21, 2021 9:13:56 PM

1.5T Split Head Coil Field Replaceable Units

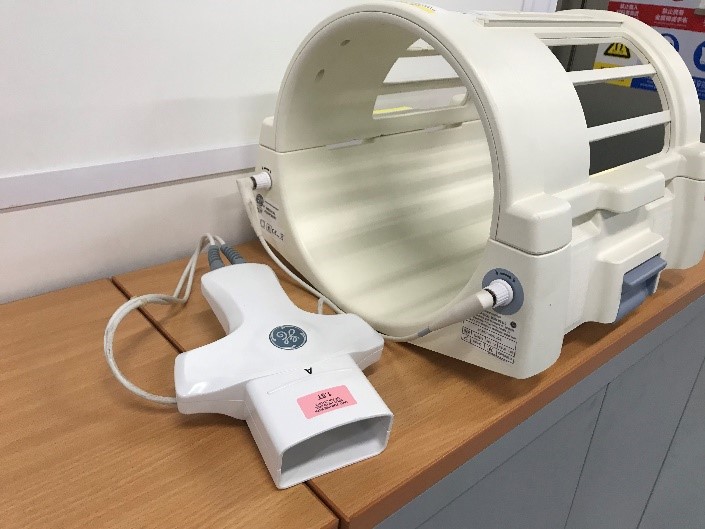

1.5T Split Head Coil Assembly - MCAT# G3335JZ/Part# 2341973

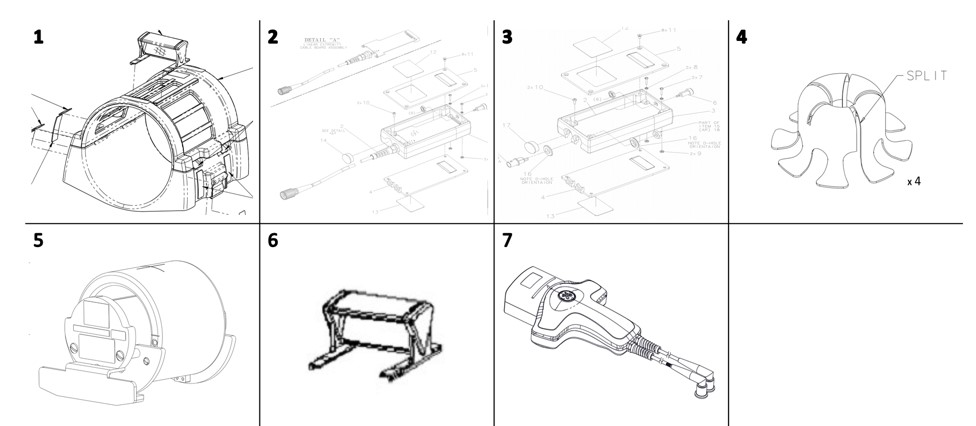

ItemPart NumberDescription
123419731.5T Head Coil Assembly
223836221.5T Linear Extremity Cable Assembly w/ Coil ID
323836231.5T Single Channel Receive Only Cable w/ Coil ID
42355094Spring Clip Kit
52321556DQA-Head SNR Phantom
62145391Mirror
751408861.5T Head Coil QHTR Assembly
