HD Body Array Coil Miscellaneous Items
Overview
Follow this process to review the miscellaneous items for Signa 1.5T HD 8 CH Body Array Coil (P/N: 2415366) by GE/USAI.
Miscellaneous Items
Product Identification and Shipping List
| Description | GE | USAI | Qty |
| Part# | Part# | ||

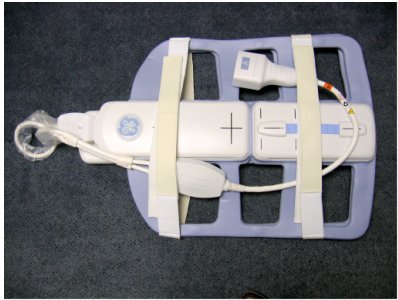

| HD 8 CH BODY Array Coil | 2415366 | NA | 1 |
| Body Pad Kit, 1.5T Coil | 2377425-6 | U1-150479 | 1 |
| ####### | |||
| Multi-Lingual Label Set,f Do not Pullf (English version applied to coil) | 2409227 | NA | 2 |
| Operatorfs Manual Set (Multilingual) | 2415429 | NA | 1 |
| Phantom Kit, Torso Coil, 1.5T | 2377425-3 | U1-1504480 | 1 |
Compatibility
The HD 8 Ch Body Array Coils are compatible with the following MR Systems configuration:
- · GE Signa HDx/HDe 1.5T Systems
Related Documentation
GE HDe/HDx 1.5T Service Methods CD-ROM
GE Healthcare Signa 1.5T HD 8 CH Body Array Coil Operator Manual
Environmental Requirements
Storage Requirements
Store the coil in an air-conditioned scan room or equipment room.
To store the coil, a storage space of (60cm) x (80cm) x (10cm) is required.
Dimensions
Anterior: 21.0” L X 27.9” W (53.5cm L x 71.1cm)
Posterior: 21.0” L X 30.5” W (53.5cm L x 77.4 cm)
Weight
Anterior: 4.4 lbs (2.0 Kg)
Posterior: 8.4 lbs (3.8 Kg)
