Guided Install Options

Note:

For item with default selection as blank, must be configured per hardware configuration list below/above. The additional selection choices are other 1.5T serial signa products. Incorrect selection of the hardware configuration would result in prohibition of proceeding.

Under [System Configure]

Hospital Name Site-entered (System ID is the same with Service ID)

Suite_ID Site-entered

Host_ID Site-entered

Unique / System ID Site-entered

Service ID Site-entered

Date Format Enter the date format to be used by the customer

Weight Unit Enter either Pounds or Kilograms

Keyboard Enter keyboard that is used for specific country

Language Enter language that will be used by customer

Video Card Not used at the introduction

Display type Enter the video mointor that will be used for the system

Legacy Image Type Should be set to [Yes]

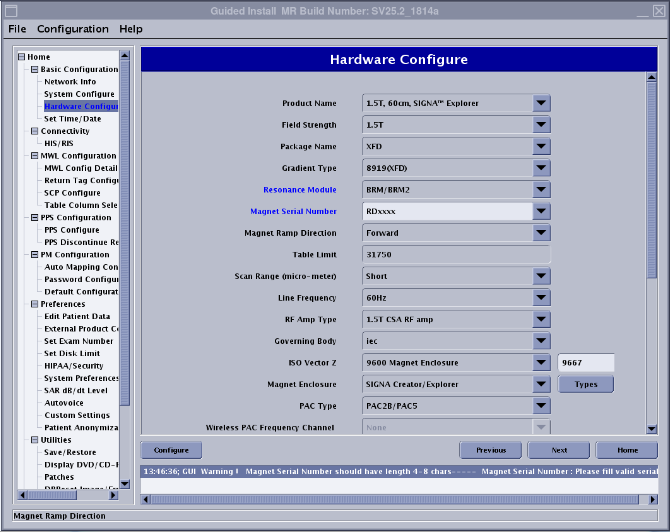

Under [Hardware Configure]

Product Name 1.5T, 60cm, SIGNATM Creator / Explorer

Field Strength must be 1.5T

Package Name must be XFD

Gradient type must be 8919(XFD)

Resonance Module BRM.
Note: BRM stands for BRMx coils

Magnet Serial Number Enter actual magnet serial number.

Magnet Ramp Direction Forward

Table Limit is default, cannot change

Scan Range Long

Line Frequency Set to either 50 or 60 hz

RF Amp Type must be 1.5T CSA RF Amp.

Governing Body Select IEC,MHLW-JIS,fda2,special1,special2.

ISO Vector Z 9600 Magnet Enclosure

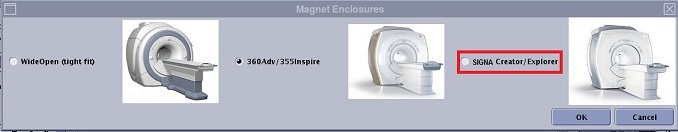

Magnet Enclosure shall select “SIGNA Creator/Explorer”

Figure 1. Hardware Selection

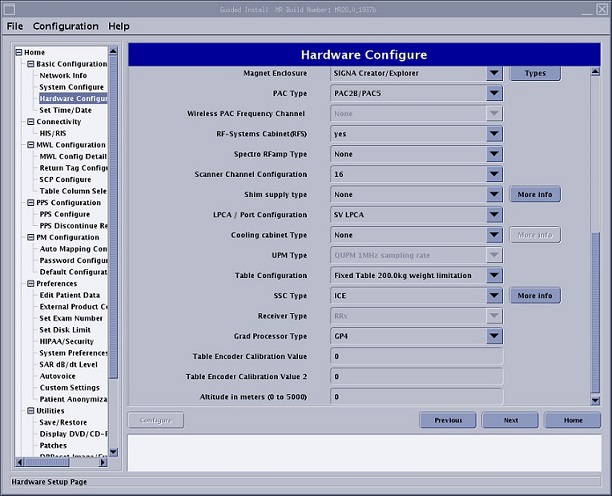

PAC type Select PAC2B/PAC5

Wireless PAC Frequency Channel None

RF-Systems Cabinet(RFS) Select [Yes]

Spectro RF Amp type Select [None]

Scanner Channel Configuration 16 for Explorer

Shim Supply type Default selection is None. Select Nav Shim Supply for using LLD function.

LPCA / Port Configuration SV LPCA

Cooling Cabinet Type None

UPM Type QUPM 1MHZ sampling rate

Table Configuration Select Detachable Table or Fixed Table 160.0 kg weight limitation or Fixed Table 200.0 kg weight limitation.

Detachable Table This is for motors table only, not applicable for SIGNA Creator and SIGNA Explorer.

Number of Tables This is for motors table only, not applicable for SIGNA Creator and SIGNA Explorer.

Note:

Table configuration selected by checking table part number

  • 5777777 for Fixed Table 160.0 kg weight limitation

  • 5777777–2 for Fixed Table 200.0 kg weight limitation

SSC Type [ICE]

Receiver Type Select [RRx]

Grad Processor type Select [GP4]

Table Encoder Calibration Value Not applicable for SIGNA Creator and SIGNA Explorer.

Table Encoder Calibration value 2 Not applicable for SIGNA Creator and SIGNA Explorer.

Altitude in meters (0 to 5000) Not applicable for SIGNA Creator and SIGNA Explorer.
