• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30935F20GYZ
  • Topic ID: id_13107240 Version: 3.0
  • Date: Aug 29, 2019 1:55:40 AM

Express Coil: 8Ch Head Neck Array Coil Introduction

Product Identification and Shipping List

This service manual is for the Express Coil: 16E Head Neck Array Coil. (See Figure 1)

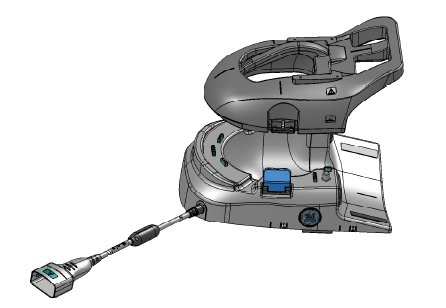

Figure 1. Express Coil: 16E Head Neck Array Coil

Table 1. Box Content 1
Description GE Part # Qty

1. HNA Posterior Array Assembly (w/ Cable)

2. HNA Anterior Assembly

3. Anterior Adaptor Block Assy

4. Mirror Assembly

54079911
4. PHANTOM POSITIONER, HNS 5344844 1
5. Operator Manual5407991-2991
Table 2. Box Content 2 - UNO-SV Pad Kit (5350515)
Description GE Part # Qty
HDsv fixed table pad 153438983
HDsv fixed table pad 253439091
HDsv fixed table pad 3 53439101

Compatibility

The 1.5T Express Coil 16E Head Neck Array Coil is compatible with the GE Brivo MR355 (1.5T) & GE Optima MR360 (with Fixed Table only) system.

Related Documentation

Operator’s Guide, GE Part Number 5407991-299 for Express Coil Suite

Environmental Requirements

Coil should be stored in the scanner room.

Accessories

Table 3. Accessories
Description GE Part #
LARGE CYLINDRICAL UNIFIED PHANTOM 5342679*
TL UNIFIED PHANTOM5343347*
* Not supplied with Coil. These parts are supplied with of MR Systems
