- SIGNA MR355 / SIGNA MR360
- Service Manual
- 5856356-3EN Revision 5.0
- Basic Service Documentation. Copyright General Electric Company.
- 00000018WIA30603F20GYZ
- id_131066421.14
- Mar 10, 2021 1:45:16 AM

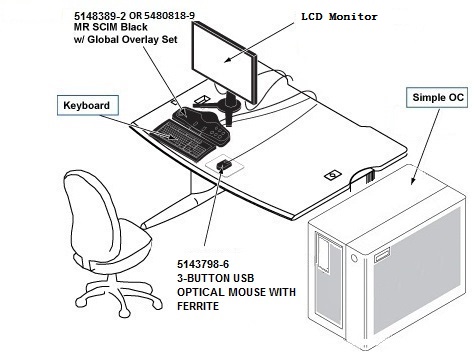

Desktop Collector
| Item | Part Number | Description | Qty | FRU | Lower |
| 1 | 46-317758P51 | PNEUMATIC PATIENT ALERT SYSTEM | 1.0 | Yes | PNEUMATIC PATIENT ALERT SYSTEM |
| 2 | 5245466 | WIDE-SCREEN 24 INCH COLOR MONITOR LCD BLACK | 1.0 | Yes | |
| 3 | 8771241 | 24INCH DATA AND IMAGE REVIEW DISPLAY HC240 | 1.0 | Yes | |
| 4 | 5373029 | Cable FRU kit for GOC | 1.0 | Yes | |
| 5 | 5763460 | Two-Button USB Scroll Mouse | 1.0 | Yes | |
| 6 | Global Language Parts | Global Language Parts | |||
| 7 | 5730742-1 | Software kit :SV25.1_R01 | 1.0 | Yes | Software FRU List |
| 8 | 5730742-2 | Software kit :SV25.1_R02 | 1.0 | Yes | |
| 9 | 5730742-3 | Software kit :SV25.1_R03 | 1.0 | Yes | |
| 10 | 5730742-4 | Software kit :SV25.1_R04 | 1.0 | Yes | |
| 11 | 5730742-5 | Software kit :SV25.1_R05 | 1.0 | Yes | |
| 12 | 5806945 | Software Kit :SV25.2_R01 | 1.0 | Yes | Table 5 |
| 13 | 5806945-2 | Software Kit :SV25.2_R02 | 1.0 | Yes |

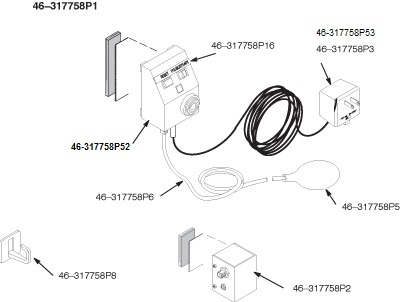

PNEUMATIC PATIENT ALERT SYSTEM
| Item | Part Number | Description | Qty | FRU | Lower Assy |
| 46-317758P11 | THREADED BRASS WAVEGUIDE TUBE W/NUTS | 2.0 | Yes | ||
| 46-317758P16 | NAMEPLATE, METALIZED STICK-ON TYPE | 1.0 | Yes | ||
| 46-317758P18 | 10 foot tubing, pneumatic, with bulb bonded to tubing | 1.0 | Yes | ||
| 46-317758P2 | EXTENDER BOX/WIRE FOR OPR ALERT SYS. | 1.0 | Yes | ||
| 46-317758P53 | MAGNACOUSTICS 12V DC POWER SUPPLY 100-240 VAC INPUT | 1.0 | Yes | ||
| 46-317758P3 | MAGNACOUSTICS 12V 60HZ POWER SUPPLY | 1.0 | Yes | ||
| 46-317758P6 | PNEUMATIC TUBING, 115FT LENGTH WITH SQUEEZE BULB BONDED TO TUBING | 1.0 | Yes | ||
| 46-317758P52 | ALARM UNIT CONTROL BOX | 1.0 | Yes | ||
| 46-317758P8 | SQUEEZE BULB HANGER, STICK-ON TYPE | 1.0 | Yes | ||
| 46-317758P9 | PLASTIC FEED-THRU CONNECTORW/CLIP | 1.0 | Yes |
Global Language Parts
| Item | Part Number | Description | Qty | FRU | Lower Assy |
| 5480818-2 | MR Scan Control and Intercom Module (SCIM) - IEC Black with English Overlay | 1 | Yes | ||
| 5480819-3 | MR Scan Control and Intercom Module (SCIM)- IEC Black with French Overlay | 1 | Yes | ||
| 5480819-4 | MR Scan Control and Intercom Module (SCIM)- IEC Black with German Overlay | 1 | Yes | ||
| 5480819-5 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Spanish Overlay | 1 | Yes | ||
| 5480819-6 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Italian Overlay | 1 | Yes | ||
| 5480819-7 | MR Scan Control and Intercom Module (SCIM)- IEC Black with European Portuguese Overlay | 1 | Yes | ||
| 5480819-8 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Scandinavia Overlay | 1 | Yes | ||
| 5480818-9 | Scan Control and Intercom Module (SCIM), Black Coordinated Global Overlay Set, RoHS IEC Third Edition | 1 | Yes | ||
| 5480819-10 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Mandarin Overlay | 1 | Yes | ||
| 5480819-11 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Japanese Overlay | 1 | Yes | ||
| 5480819-13 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Danish Overlay | 1 | Yes | ||
| 5480819-14 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Dutch Overlay | 1 | Yes | ||
| 5480819-15 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Norwegian Overlay | 1 | Yes | ||
| 5480819-16 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Finnish Overlay | 1 | Yes | ||
| 5480819-17 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Swedish Overlay | 1 | Yes | ||
| 5480819-18 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Korean Overlay | 1 | Yes | ||
| 5480819-19 | MR Scan Control and Intercom Module (SCIM)- IEC Black with Brazilian Portuguese Overlay | 1 | Yes | ||
| 5393370-2 | MR SCIM-Black with English Overlay RoHS | 1 | Yes | ||
| 5480818-2 | MR SCIM-Black with English Overlay RoHS IEC third edition | 1 | Yes | ||
| 5143798-7 | Standard USB US English Keyboard | 1 | Yes | ||
| 5143798-8 | Standard USB French Keyboard | 1 | Yes | ||
| 5143798-9 | Standard USB German Keyboard | 1 | Yes | ||
| 5143798-10 | Standard USB Spanish Keyboard | 1 | Yes | ||
| 5143798-11 | Standard USB ITALIAN Keyboard | 1 | Yes | ||
| 5143798-12 | Standard USB PORTUGUESE Keyboard | 1 | Yes | ||
| 5143798-13 | Standard USB Swedish Keyboard | 1 | Yes | ||
| 5183547-46 | Standard USB DANISH Keyboard | 1 | Yes | ||
| 5183547-47 | Standard USB DUTCH Keyboard | 1 | Yes | ||
| 5183547-48 | Standard USB Norwegian Keyboard | 1 | Yes |
Software FRU List
| Part Numbers | Description | Qty | FRU | Lower Assy |
|---|---|---|---|---|
| 5168656 | Common Part: DVD-R | 5 | No | |
| 5730743 | Host OS Software DVD | 1 | No | |
| 5730745 | VRE OS Software DVD | 1 | No | |
| 5730746-1 | Application software DVD | 1 | No | |
| 5736339-1 | Restrict Software DVD | 1 | No |
| Part Number | Description | Qty | FRU | Lower Assy |
|---|---|---|---|---|
| 5168656 | Common Part: DVD-R | 5 | No | |
| 5730745 | VRE OS | 1 | No | |
| 5803424 | Host OS | 1 | No | |
| 5806948-2 | Restricted SW DVD | 1 | No | |
| 5806947-2 | Application software DVD | 1 | No |
| Part Number | Description | Qty | FRU | Lower Assy |
|---|---|---|---|---|
| 5857314 | SV25.3_R01_1948.b | 1 | Yes | |
| 6806945 | SV25.3_R02_2018.a | 1 | Yes | |
| 5861958 | SV25.3_R03_2037.c | 1 | Yes | |
| 5868747 | SV25.3_R04 | 1 | Yes |
