- SIGNA MR355 / SIGNA MR360
- Service Manual
- 5856356-3EN Revision 5.0
- Basic Service Documentation. Copyright General Electric Company.
- 00000018WIA30274F20GYZ
- id_131060491.3
- Dec 19, 2019 3:33:11 PM

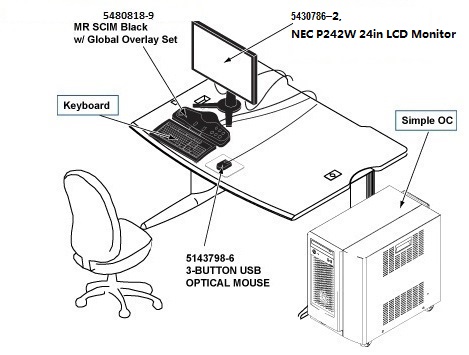

Desktop Collector
| Item | Part Number | Description | Qty | FRU | Lower |
| 2 | 46-317758P51 | Pneumatic Patient Alert System | 1.0 | Yes | PNEUMATIC PATIENT ALERT SYSTEM |
| 3 | 5430786–2 | NEC P242W 24in LCD Monitor | 1.0 | Yes | |
| 5373029 | Cable FRU kit for GOC with Z400. | 1.0 | Yes | ||
| 4 | 1.0 | Yes | |||
| Global Language Parts | Global Language Parts | ||||
| Software kit | Software FRU List |

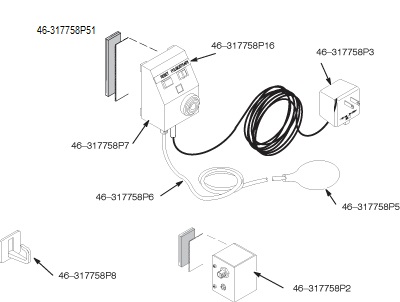

PNEUMATIC PATIENT ALERT SYSTEM
| Item | Part Number | Description | Qty | FRU | Lower Assy |
| 46-317758P11 | THREADED BRASS WAVEGUIDE TUBE W/NUTS | 2.0 | Yes | ||
| 46-317758P16 | NAMEPLATE, METALIZED STICK-ON TYPE | 1.0 | Yes | ||
| 46-317758P18 | 10 foot tubing, pneumatic, with bulb bonded to tubing | 1.0 | Yes | ||
| 46-317758P2 | EXTENDER BOX/WIRE FOR OPR ALERT SYS. | 1.0 | Yes | ||
| 46-317758P3 | MAGNACOUSTICS 12V 60HZ POWER SUPPLY | 1.0 | Yes | ||
| 46-317758P6 | PNEUMATIC TUBING, 115FT LENGTH WITH SQUEEZE BULB BONDED TO TUBING | 1.0 | Yes | ||
| 46-317758P7 | ALARM UNIT CONTROL BOX | 1.0 | Yes | ||
| 46-317758P8 | SQUEEZE BULB HANGER, STICK-ON TYPE | 1.0 | Yes | ||
| 46-317758P9 | PLASTIC FEED-THRU CONNECTORW/CLIP | 1.0 | Yes |
Global Language Parts
| Item | Part Number | Description | Qty | FRU | Lower Assy |
| 5148389-9 | MR SCIM Black w/ Global Overlay Set (French, German, Italian, Portuguese, Spanish, Mandarin, Danish, Dutch, Norwegian, Finnish, Swedish, Scandinavian, Japanese and Korean) | 1 | Yes | ||
| 5393370-9 | MR SCIM-Black coordinated global overlay set RoHS | 1 | Yes | ||
| 5480818-9 | MR SCIM-Black coordinated global overlay set RoHS IEC third edition | 1 | Yes | ||
| 5148389-2 | MR SCIM - Black with English Overlay | 1 | Yes | ||
| 5393370-2 | MR SCIM-Black with English Overlay RoHS | 1 | Yes | ||
| 5480818-2 | MR SCIM-Black with English Overlay RoHS IEC third edition | 1 | Yes | ||
| 5143798-7 | Standard USB US English Keyboard | 1 | Yes | ||
| 5143798-8 | Standard USB French Keyboard | 1 | Yes | ||
| 5143798-9 | Standard USB German Keyboard | 1 | Yes | ||
| 5143798-10 | Standard USB Spanish Keyboard | 1 | Yes | ||
| 5143798-11 | Standard USB ITALIAN Keyboard | 1 | Yes | ||
| 5143798-12 | Standard USB PORTUGUESE Keyboard | 1 | Yes | ||
| 5143798-13 | Standard USB Swedish Keyboard | 1 | Yes | ||
| 5183547-46 | Standard USB DANISH Keyboard | 1 | Yes | ||
| 5183547-47 | Standard USB DUTCH Keyboard | 1 | Yes | ||
| 5183547-48 | Standard USB Norwegian Keyboard | 1 | Yes |
Software FRU List
| Item | Part Number | Description | Qty | FRU | Lower Assy |
| 5432568 | Host OS SW DVD | 1 | Yes | ||
| 5406541 | OpenSuse OS DVD for VRE | 1 | Yes | ||
| 5432561 | 16BEAT App SW DVD | 1 | Yes | ||
| 5432561-2 | 16BEAT software App V02 DVD | 1 | Yes | ||
| 5432561-3 | 16Beat software application V03 DVD | 1 | Yes | ||
| 5432561-4 | 16BEAT software App V04 DVD | 1 | Yes | ||
| 5432561-5 | 16beat V05 application SW | 1 | Yes | ||
| 5432561-6 | 16Beat V05 rev2 Application | 1 | Yes | ||
| 5493020 | 16BEAT V04 SP01 | 1 | Yes |
