• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30B51F20GYZ
  • Topic ID: id_13107050 Version: 4.0
  • Date: Feb 21, 2021 9:13:15 PM

8CH Body Array Coil Field Replaceable Units

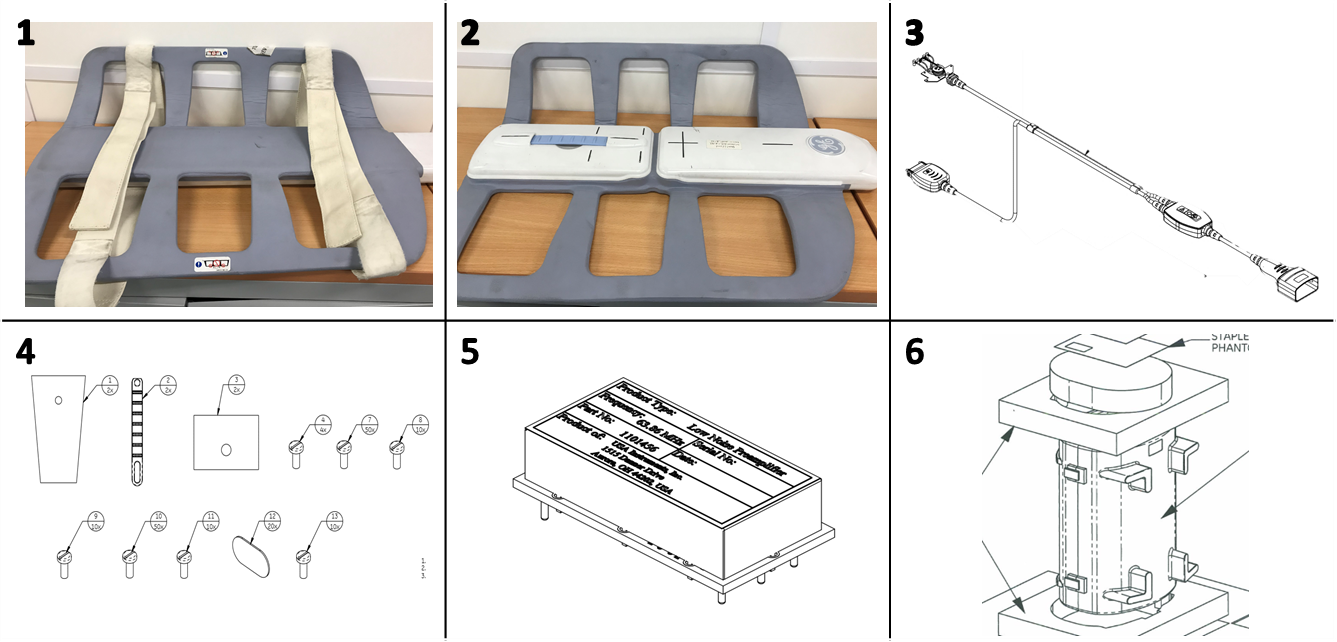

Figure 1. 8CH Body Array Coil Field Replaceable Units - MCAT# M3335MC/Part# 2415366
ItemPart NumberDescription
12416759Lower Coil
22418093Upper Coil
32417162Cable Assembly
424184371.5T Torso Hardware
554494241.5T Preamp Large Footprint
62377425-3Phantom Kit (Phantom, Annular Rings, Positioners)
72377425-8Torso Array Strap Set
