1.5TGP Flex Coil Miscellaneous Items

Follow this process to review the miscellaneous items for the Signa Horizon 1.5T /Signa Horizon LX 1.5T /Signa Twin Speed 1.5T/Signa Infinity 1.5T/ Signa Infinity Twin Speed 1.5T/Signa CV/i 1.5T/Signa MR/i 1.5T /Signa HDe 1.5T GP Flex coil

GE catalog Part number :M1085GF

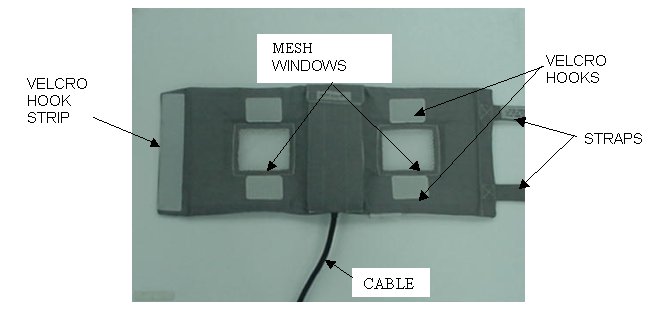

The coil consists of one major assembly (see Illustration 1-1). The unit is 56 cm long (not including straps) by 22 cm wide. It has two mesh "windows" which indicate the open center of the two coils and which aid in positioning. Two 76 cm (30 in) long straps are attached to one end of the coil fabric. The undersides of these straps are covered with Velcro, which attach to a Velcro hook strip at the other end of the coil and to four Velcro hooks located above and below the mesh windows

A 183 cm (72 in) long RF cable exits the material on one of the long sides and has a BNC connection that attaches to the Surface Coil quick-disconnect box.

• Signa Horizon 1.5T

• Signa Horizon LX 1.5T

• Signa Twin Speed 1.5T

• Signa Infinity 1.5T

• Signa Infinity Twin Speed 1.5T

• Signa CV/i 1.5T

• Signa MR/i 1.5T

• Signa HDe 1.5T

• Signa LX Service Methods CD, 2160623-1

• 1.5T GP Flex Coil Operator Manual, 2336151
