1.5T Phased Array Shoulder Coil Miscellaneous Items

Product Identification and Shipping List

Figure 1 shows the label of the Phased Array Shoulder Coil

Figure 1. coil label

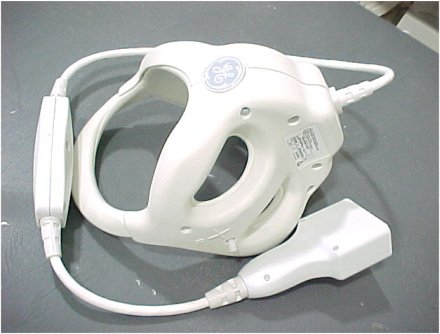

Figure 2 shows a picture of the Phased Array Shoulder Coil.

Figure 2. Phased Array Shoulder Coil
Table 1. Shipping List
Part NameGE Part #Qty
FRU Coil24167571
Patient Comfort PadU1-1503501
Spacer Pad 24119461
Phantom PositionerU1-1550801
Positioning Straps (Set of 2)U1-1503751
Operatorfs Guide24154211

Compatibility

The coil is compatible with the Signa HDe and HDx 1.5T system and requires 14.0 or greater software.

Related Documentation

Signa HDe 1.5T Class A Service Methods CDROM, GE Part Number 5144306

Operator’s Guide, GE Part Number 2415421

Environmental Requirements

Storage Requirements

Coil should be stored in the scanner room.

Dimensions

8.5” L x 9.1” W x 12.4” H (21.7 cm x 23.2 cm x 31.6 cm)

Weight

7.0 lbs. (3.2 kg)
