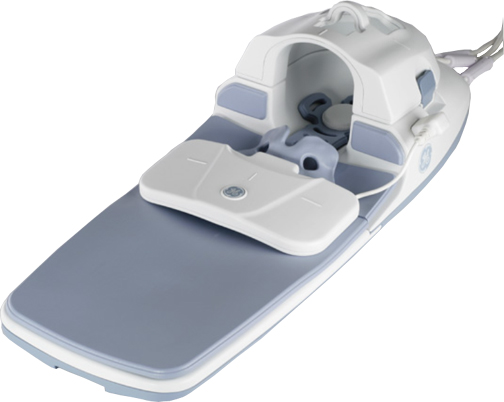

1.5T Head Neck Spine (HNS) Coil Introduction
Product Identification and Shipping List
HNS Rev 02 Coil:
To identify the 1.5T Head, Neck and Spine Coil, refer to the coil labels in Figure 1.
Each of the coils (5) subcomponents contains it own label.
Shipping Contents and Packaging List: 3-Connector Coil for Upgrade System
| Part Name | Part Number | Quantity |
| Head Unit - Posterior | 2417438 | 1 |
| Head Unit - Anterior or Face Piece | 2417422 | 1 |
| TL Spine Unit | 2417444 | 1 |
| Chest Piece | 2417445 | 1 |
| Horseshoe | 2417441 | 1 |
| Patient Comfort Pad - Transition | 2417243 | 1 |
| Right Shoulder Pad | 2417244 | 1 |
| Left Shoulder Pad | 2417245 | 1 |
| Patient Comfort Pad - TL | 2417246 | 1 |
| Patient Comfort Pad - Head | 2417247 | 1 |
| Wedge Pad | 2417649 | 2 |
| Head Unit Cable - B Connector (Attached to Coil) | 2417443 | 1 |
| Head Unit Cable - Legacy (Attached to Coil) | 2417446 | 1 |
| TL Cable (Attached to Coil) | 2417442 | 1 |
| Operator Manual | 2417746 | 1 |
| HNS Phantom Positioner | 5344844 | 1 |
Shipping Contents and Packaging List : 2-Connector Coil for Forward Production System
| Part Name | Part Number | Quantity |
| Head Unit - Posterior | 2417438 | 1 |
| Head Unit - Anterior or Face Piece | 2417422 | 1 |
| TL Spine Unit | 2417444 | 1 |
| Chest Piece | 2417445 | 1 |
| Horseshoe | 2417441 | 1 |
| Patient Comfort Pad - Transition | 2417243 | 1 |
| Right Shoulder Pad | 2417244 | 1 |
| Left Shoulder Pad | 2417245 | 1 |
| Patient Comfort Pad - TL | 2417246 | 1 |
| Patient Comfort Pad - Head | 2417247 | 1 |
| Wedge Pad | 2417649 | 2 |
| Head Unit Cable - Labeled B (Attached to Coil) | 2417440 | 1 |
| TL Cable (Attached to Coil) | 2417442 | 1 |
| Operator Manual | 2417746 | 1 |
| HNS Phantom Positioner | 5344844 | 1 |
HNS Rev 03 Coil
Shipping Contents and Packaging List: 3-Connector Coil for Upgrade System
| Part Name | Part Number | Quantity |
| 2423192 | 1 |
| TL Spine Unit | 2423194 | 1 |
| Neck-Chest Unit | 2423193 | 1 |
| Patient Comfort Pad - Transition | 2417243 | 1 |
| Right Shoulder Pad | 2417244 | 1 |
| Left Shoulder Pad | 2417245 | 1 |
| Patient Comfort Pad - TL | 2417246 | 1 |
| Patient Comfort Pad - Head | 2417247 | 1 |
| Wedge Pad | 2417649 | 2 |
| Head Unit Cable - B Connector (Attached to Coil) | 2423004 | 1 |
| Head Unit Cable - Legacy (Attached to Coil) | 2423006 | 1 |
| TL Cable (Attached to Coil) | 2423005 | 1 |
| Operator Manual | 2423588-500 | 1 |
| HNS Phantom Positioner | 5344844 | 1 |
Shipping Contents and Packaging List: 2-Connector Coil for Forward Production System
| Part Name | Part Number | Quantity |
| 2423192 | 1 |
| TL Spine Unit | 2423194 | 1 |
| Neck-Chest Unit | 2423193 | 1 |
| Patient Comfort Pad - Transition | 2417243 | 1 |
| Right Shoulder Pad | 2417244 | 1 |
| Left Shoulder Pad | 2417245 | 1 |
| Patient Comfort Pad - TL | 2417246 | 1 |
| Patient Comfort Pad - Head | 2417247 | 1 |
| Wedge Pad | 2417649 | 2 |
| Head Unit Cable - Labeled B (Attached to Coil) | 2423003 | 1 |
| TL Cable (Attached to Coil) | 2423005 | 1 |
| Operator Manual | 2423588-500 | 1 |
| HNS Phantom Positioner | 5344844 | 1 |
Related Documentation
Operator’s Guide, GE P/N 2417746 for HNS Rev 02 coil and 2423588-500 for HNS Rev 03 coil.
Environmental Requirements
Storage Requirements: Coil should be stored in the scanner room.
