1.5T HD Vibrant Bilateral Breast Array Coil FRU

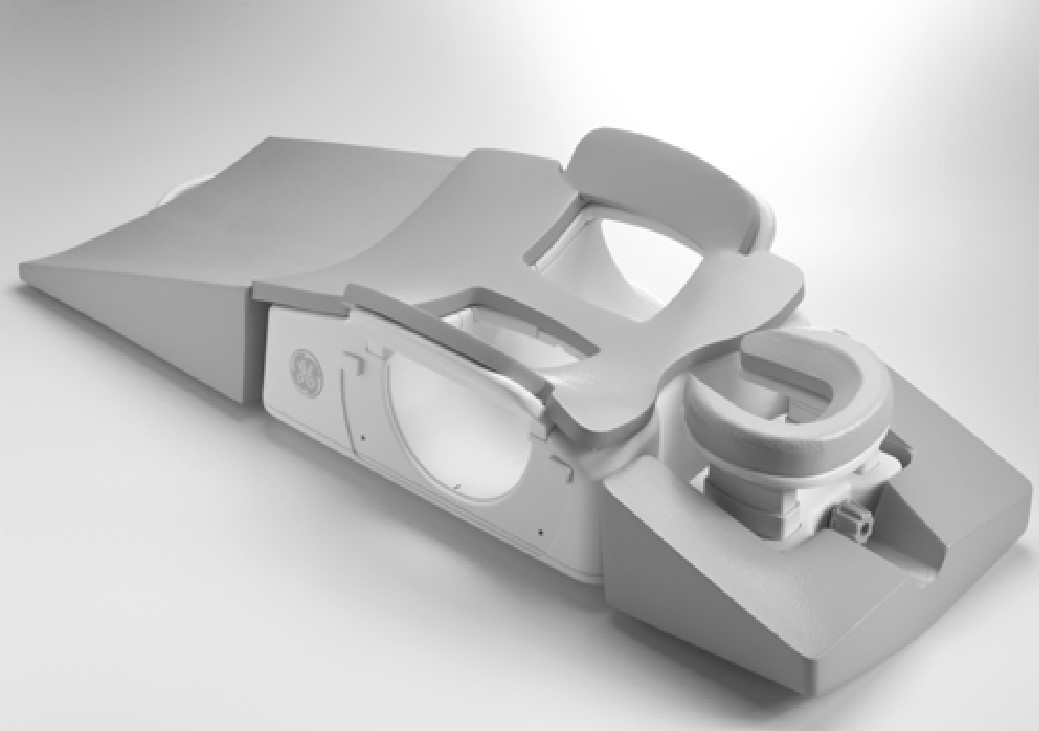

Figure 1. 1.5T HD Vibrant Bilateral Breast Array Coil - MCAT# M3087JG/Part# 2422892

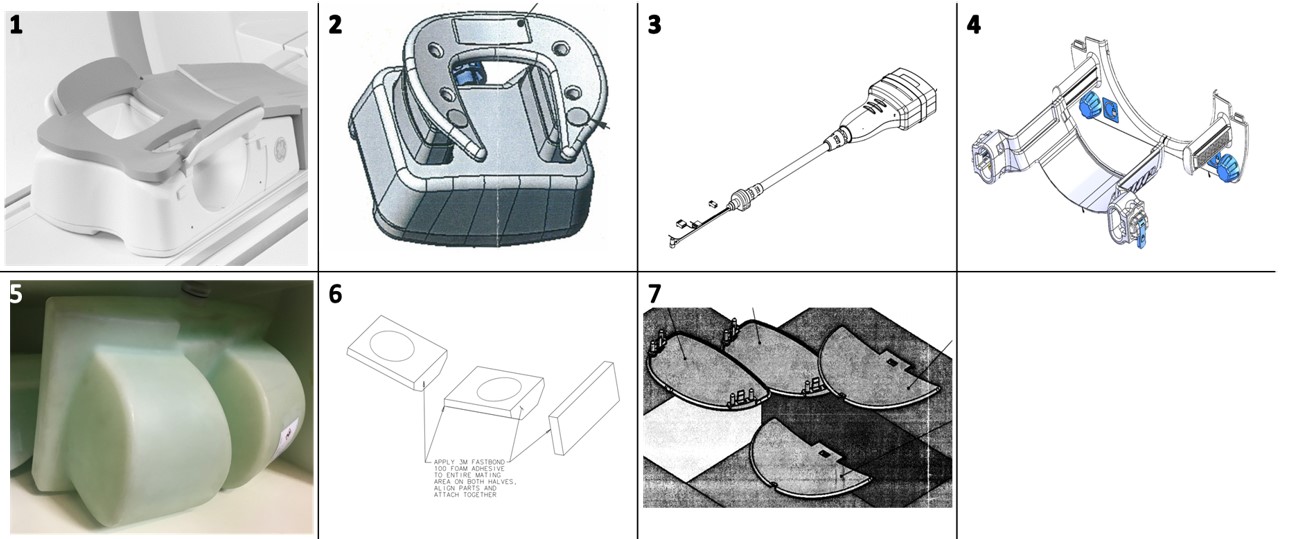

ItemPart NumberDescription
12412286 1.5T Breast Coil w/o Cable
22412281Headrest Assy
32412283Cable
45416940Biopsy Mechanism Assembly
52412282QA Phantom
65343432Phantom Positioner, Breast
72419203Lateral and Medical Compression Plates
85404927Breast Coil Small Parts Kit
