1.5T HD Knee Array Coil Field Replaceable Units

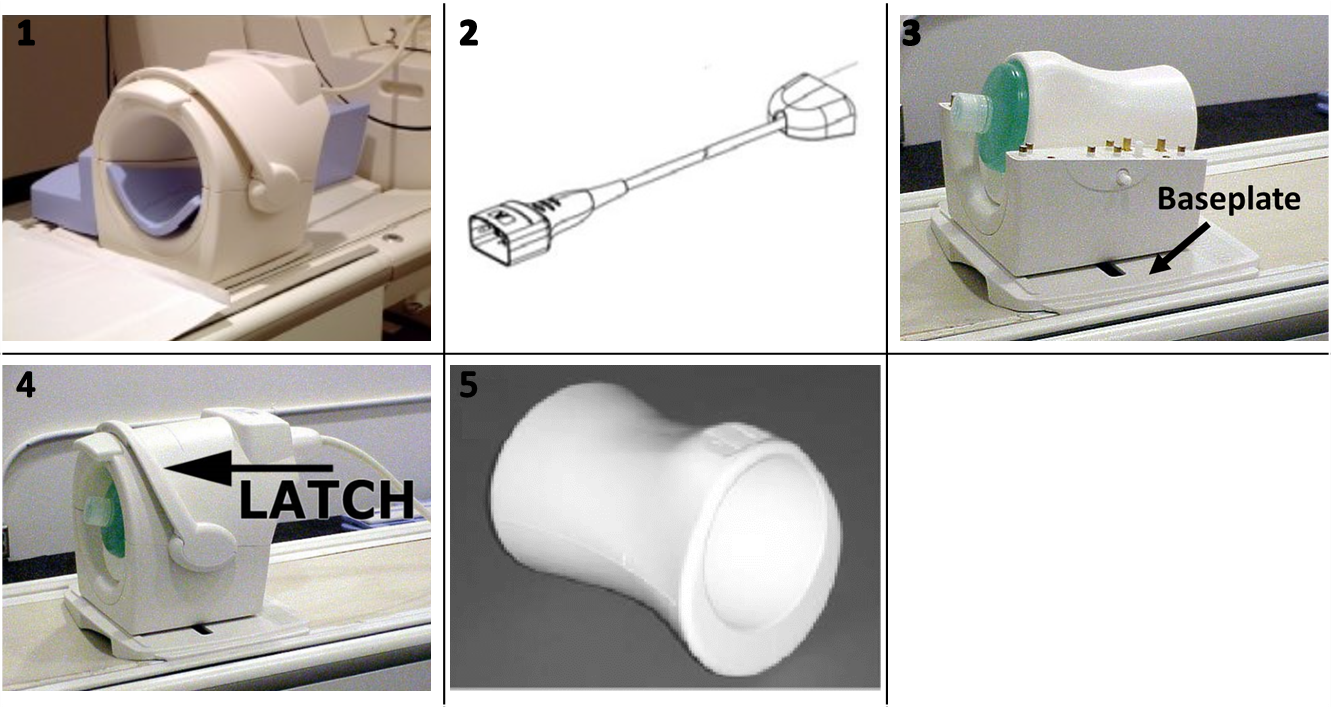

Figure 1. 1.5T HD Knee Array - MCAT# M3087JF/Part# 5114356-2
ItemPart NumberDescription
15114356-141.5T HD Knee Array
25114356-151.5T HD Knee Array Cable
35114356-41.5T HD Knee Array Baseplate
45114356-13Latch Kit
55114356-12Phantom Positioner
65114356-11Phantom
