• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30EE2F20GYZ
  • Topic ID: id_13105896 Version: 4.0
  • Date: Feb 21, 2021 9:14:29 PM

1.5T HD 8CH Shoulder Array Coil FRU list

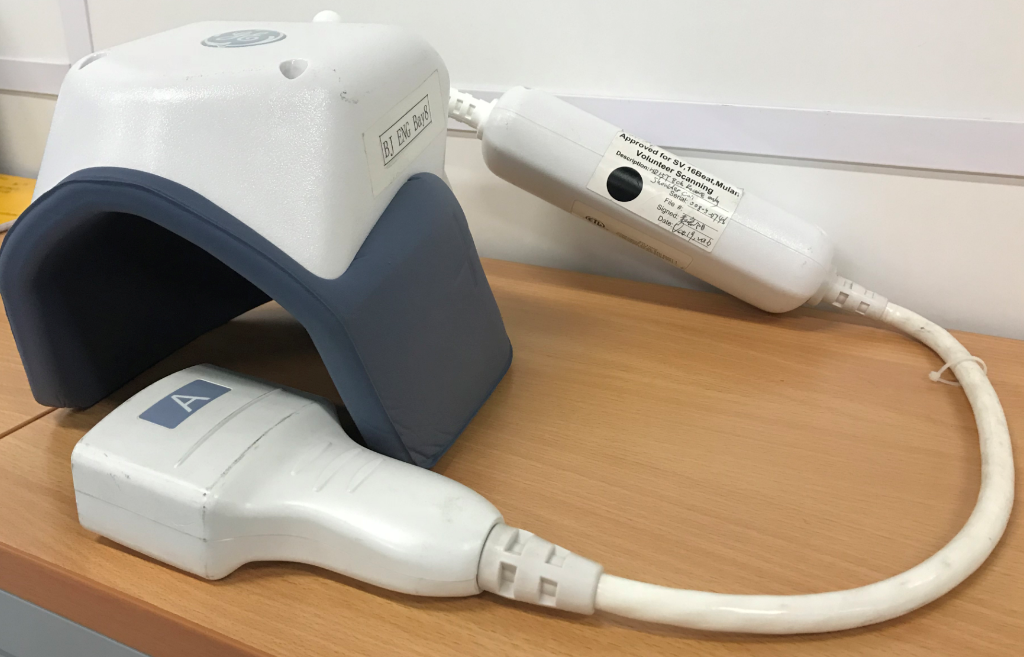

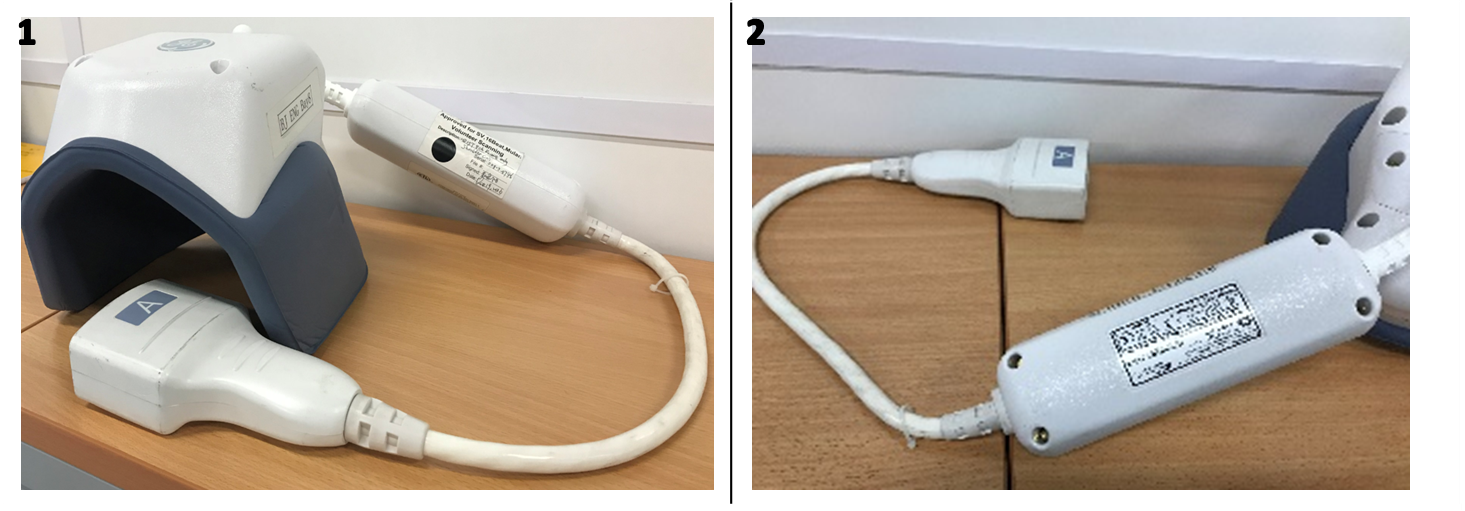

HD 1.5T 8CH Receive Only Shoulder Coil - MCAT# M3340CE/Part# 5308343-3

ItemPart NumberDescription
15308343-31.5T HD 8CH Shoulder Coil Assembly w/ Cable
25271265-3Cable Assembly
35271265-5Phantom Holder Assembly
45723825Shoulder Coil Strap Assembly
