1.5T HD 8-Channel Wrist Array Field Replaceable Units

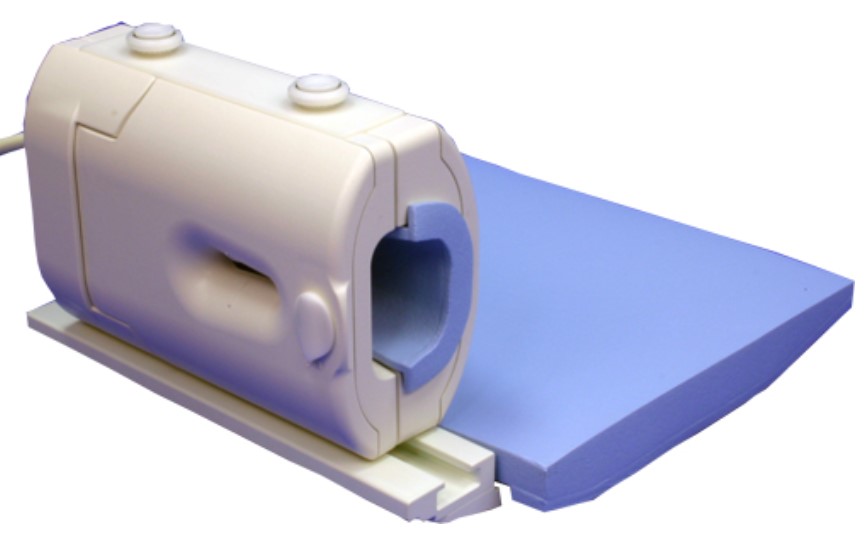

Figure 1. 1.5T HD 8-Channel Wrist Array - MCAT# M3335LJ/Part# 5160986-2

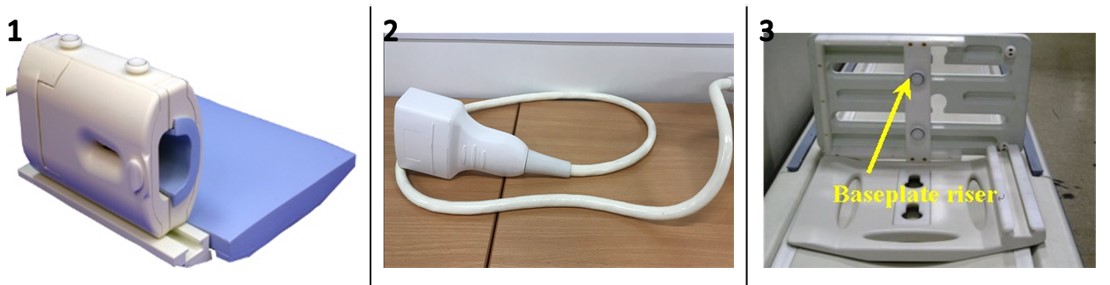

ItemPart NumberDescription
15160986-21.5T HD 8CH Wrist Array with Cable and Base
25160986-31.5T HD 8CH Wrist Array Cable Assembly
35160986-121.5T HD 8CH Wrist Array Base with Riser
45406395-4Spare Kit (2 knobs, latch w/ screws, parts and screws to replace 2 posts)
55160986-51.5T HD 8CH Wrist Array Legacy Phantom
65342681Cubical Unified Phantom
