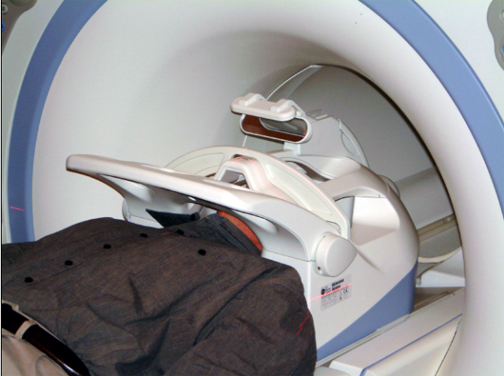

1.5T HD 8 Channel Neurovascular Array Introduction
This service manual is for the 1.5T HD 8 Channel Neurovascular Array by Invivo catalog number M3335M.
| Description | GE Part # | Invivo # | Qty |
| 1.5T HD 8 Channel Neurovascular Array | 5147135-2 | 107629 | 1 |
| Operator Manual | 5147135-4 | 500193 | 1 |
| HNC Pad | 2317115-6 | 102955 | 1 |
| Wedge Pad | 2317115-8 | 101407 | 2 |
| Phantom Kit | TBD | 108047 | 1 |
| Phantom Warning Label Sheets | 5147135-6 | 106764 | 4 |
| MSDS | 5147135-7 | 103421 | 1 |
Compatibility
This coil is compatible with the following hardware configurations:
-
Signa HDx (Version 14.X)
-
Signa HDe (Version 14.X, M4 SP1 and later)
Related Documentation
1.5T HD 8 Channel Neurovascular Array Operator’s Manual, 5147134-4
Environmental Requirements
Storage
This equipment must be stored under the following conditions:
-
Ambient temperature range of +10°C to +40°C.
-
Relative humidity range of 10% To 90%, non-condensing.
-
Atmospheric pressure range of 500 hPa TO 1060 hPa.
To store the coil, a storage space of 45.7 cm/18.0 in (width) x 72.4 cm/28.5 in (depth) x 42.7 cm/16.8 in (height) is required.
Dimensions
| Coil Dimension: | 724.0 mm x 457.0 mm x 427.0 mm | (28.50 in x 18.00 in x 16.80 in) |
| Phantom: | 609.6 mm x 114.3 mm x 114.3 mm | (24.0 in x 4.5 in x 4.5 in) |
| Phantom Positioner: | 393.7 mm x 200.9 mm x 115.8 mm | (15.5 in x 7.91 in x 4.56 in) |
Weight
| Coil Weight: | 9.675 Kg | (21.5 lb) |
| Phantom: | 6.975 Kg | (15.5 lb) |
| Phantom Positioner: | 0.167 Kg | (0.37 lb) |
