1.5T HD 8 Channel High Res Brain Array Introduction

Product Identification and Shipping List

This service manual is for the 1.5T HD 8 Channel High Res Brain Array. (SeeFigure 1)

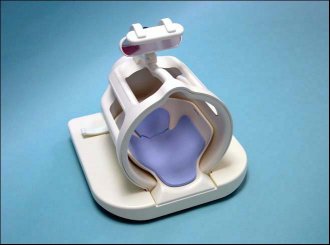

Figure 1. Invivo 1.5T HD 8Ch Foot Ankle Coil

Table 1. Shipping List
Description GE Part # Invivo # Qty
1.5T HD 8 Channel High Res Brain Array5306772-2 1100451
Phantom Positioner2317112-31025581
Operator Manual5306772-45002871
Thick Head Pad2317112-9102985 1
Thin Head Pad2317112-10 1029841
Spacer Pad 2317112-71016221
Wedge Pad 2317115-81014071
MSDS, Nickel Chloride Phantom Solution 5273235-10 1091112

Compatibility

This coil is compatible with the following hardware configurations:

Signa HDe (Version 15.X and above.)

Related Documentation

1.5T HD 8 Channel High Res Brain Array Operator’s Manual, 5306772-4

Environmental Requirements

This equipment must be stored under the following conditions:

  • Ambient temperature range of +10°C to +40°C.

  • Relative humidity range of 10% To 90%, non-condensing.

  • Atmospheric pressure range of 500 hPa TO 1060 hPa.

To store the coil and baseplate, a storage space of greater than 40.4 cm/15.9 inch (width) x 30.6 cm/12.0 inch (length) x 34.1 cm/13.5 inch (height) is required.

Table 2. Dimensions (Width x Length x Depth)
Coil: 417.6 mm x 393.4 mm x 406.4 mm(16.44 in x 15.49 in x 16.00 in)
Phantom Positioner: 225.6 mm x 228.6 mm x 23.9 mm(8.88 in x 9.00 in x 0.94 in)
Table 3. Weight
Coil : 7.20 Kg(16.0 lb)
Phantom: 2.83 Kg (6.25 lb)
Phantom Positioner: 0.45 Kg(1.0 lb)

See the images of more details of the dimensions of 1.5T HD 8Ch Foot Ankle Coil below:
