1.5T 8-Channel Cardiac Coil Introduction
This document describes the HD 8-Channel Cardiac Coil made by GE/USAI, Catalog Number M3335MD.
Product Identification and Shipping List
To identify the 8-Channel Cardiac Coil, refer to the coil label in Figure 1).

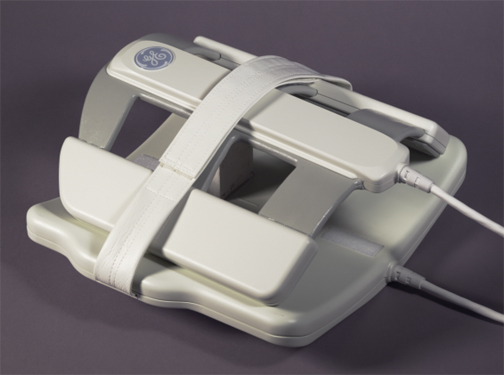

Figure 2 shows a picture of the 8-Channel Cardiac Coil.
| Box # | Part Name | GE Part Number | USAI Part Number | Quantity |
| 1 | Coil | 2415376 | 2416900 | 1 |
| 3 | Patient Comfort Pad | 2304255-6 | 155164 | 1 |
| 3 | Patient Headrest Pad | 2304255-6 | 155165 | 1 |
| 3 | Patient Lower Body Pad | 2304255-6 | 155166 | 1 |
| 1 | Operator Guide | 2417404 | 2417404 | 1 |
| 1 | Service Manual | 2415376TPH | 2415376TPH | 1 |
Related Documentation
Operator Guide, Direction 2417404
Environmental Requirements
Storage Requirements: Coil should be stored in the scanner room.
| Environmental Factor | Transport/Storage | Operating Conditions |
| Barometric Pressure | 872 hPa to 1060 hPa | As established by the GE recommended MR Suite conditions. |
| Humidity | 20% to 95% noncondensing | 45% to 75% noncondensing |
| Temperature | -15°C to 55°C (5°F to 131°F) | 15°C to 35°C (59°F to 95°F) |
Dimensions: 19.4 in. (L) x 16.5 in. (W) x 4.7 in. (H), 49.4 cm x 42.0 cm x 11.9 cm
Weight: 12 lbs (5.4 kg)
