1.5T 12-Channel Body Array Coil Introduction
Product Identification and Shipping List
To identify the 12-Channel Single Connector HDx/HDxt or the 12-Channel P-Connector MR450/MR450w Body Array Coil, refer to the coil label.
To identify the 12-Channel Dual Connector HDx/HDxt Body Array Coil, refer to the coil label.
The anterior and posterior of the 12-Channel Body Array Coil is the same for the HDx, HDxt, MR450, and MR450w systems. The only difference is the system end connector. The HDx system uses a Hypertronics Connector and the MR450/MR450w systems use a P-Connector.

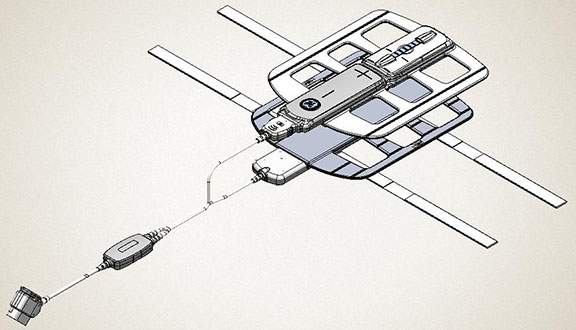

The figure below shows the 12-Channel HDx/HDxt Single Connector Body Array Coil.

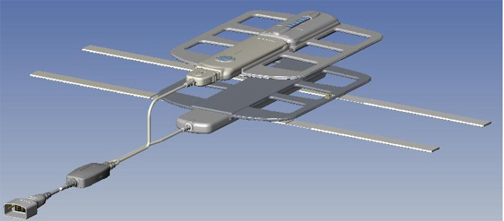

The figure below shows the 12-Channel HDx/HDxt Dual Connector Body Array Coil.

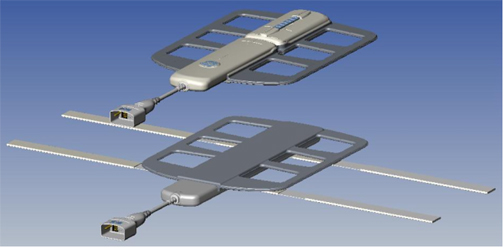

The figure below shows the 12-Channel MR450/450w P-Connector Body Array Coil
| Description | GE Part Number | Quantity |
| Filler Pad, 1.5T Body Array | U1-150510 | 1 |
| Transition Pad | U1-150460 | 1 |
| Main Positioning Pad | U1-150448 | 1 |
| Posterior Center Pad, 1.5T Torso | U1-150521 | 1 |
| Operator Guide CD PKT, 12-Channel (Single, Dual and P-Connector) | 2422149-500 | 1 |
| Single Connector HDx 12-Channel Body Array Coil 1.5T (with Cable) | 2421093 | 1 |
| Description | GE Part Number | Quantity |
| 12-Element Body Array Coil HDMR2 | 2415561 | 1 |
| Filler Pad, 1.5T Body Array | U1-150510 | 1 |
| Transition Pad | U1-150460 | 1 |
| Main Positioning Pad | U1-150448 | 1 |
| Posterior Center Pad, 1.5T Torso | U1-150521 | 1 |
| Operators Guide CD PKT, 12-Channel (Single, Dual and P-Connector) | 2422149-500 | 1 |
| 1.5T 12 Channel Body Array Translation Label | 5490496-7 | 1 |
| Coil Name Language Translation Label Instruction Sheet | 5492658 | 1 |
| Description | GE Part Number | Quantity |
| Filler Pad, 1.5T Body Array | U1-150510 | 1 |
| Transition Pad | U1-150460 | 1 |
| Main Positioning Pad | U1-150448 | 1 |
| Posterior Center Pad, 1.5T Torso | U1-150521 | 1 |
| Operator Guide CD PKT, 12-Channel (Single, Dual and P-Connector) | 2422149-500 | 1 |
| P-Connector for 1.5T 12-Channel Body Array Coil (with Cable) | 2419065 | 1 |
| 1.5T 12-Channel Body Array Translation Label | 5490496-7 | 1 |
| Coil Name Language Translation Label Instruction Sheet | 5492658 | 1 |
Related Documentation
Operator Guide CD PKT, GE PN 2422149-500
Environmental Requirements
Storage Requirements: Store the coil in the scanner room.
Dimensions: 21.0 inch (L) x 30.5 inch (W) x 2.2 inch (H), 53.5 cm x 77.4 cm x 5.7 cm
Weight: 12.8 lb (5.8 kg)
