1.5T 12-Channel Body Array Coil FRUs

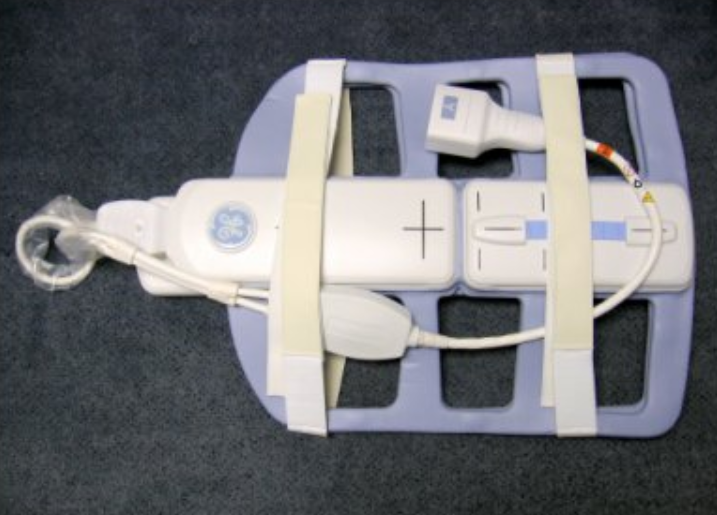

Figure 1. 1.5T 12-Channel Body Array Coil - MCAT# M3335LE/Part# 2416616

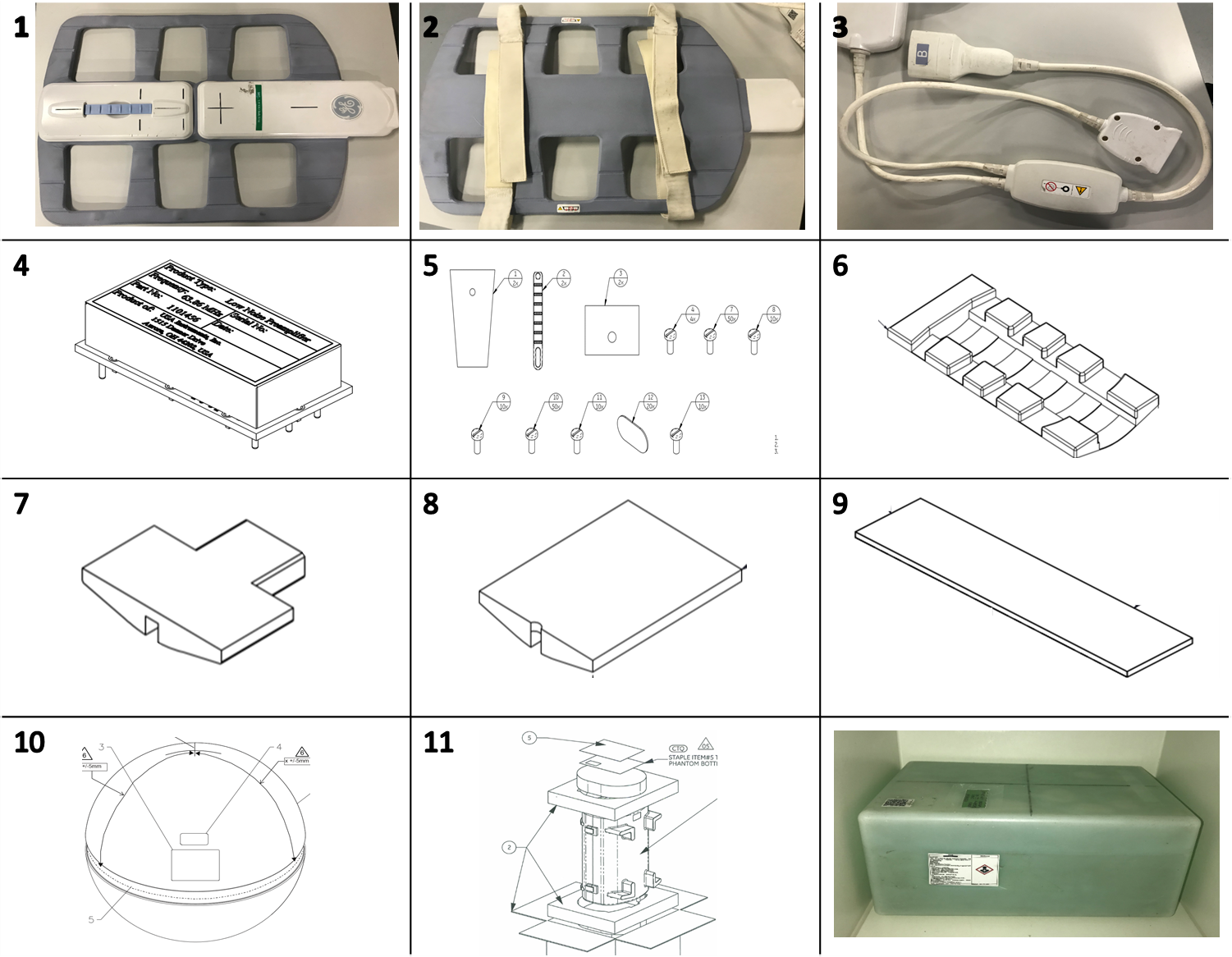

ItemPart NumberDescription
153961531.5T 12CH Anterior Body Array Coil (Single Connector)
253961571.5T 12CH Posterior Body Array Coil
3241732812CH Torso System Cable
454494241.5T Preamp Large Footprint
524184371.5T Torso Hardware
6U1-155174Patient Comfort Pad
7U1-155175Ramp Pad
8U1-155176Filler Pad
9U1-155203Posterior Center Pad
10

2135652

2274476

2135650

MR450 System Phantoms
112377425-3USAI 8CH BODY ARRAY PHANTOM KIT
125343347TL Unified Phantom
132377425-8Torso Array Strap Set
145440960Vinyl and Foam Repair Kit
