Optima MR450w BASE 1.5T System Service Methods
5690012-2EN Revision 3
Object ID: 00000018WIA3092C630GYZ
Topic ID: id_2011632 Version: 4.0
Date: Jul 19, 2019 10:54:58 AM

Installing the blower box filter

Procedure

Install the EMC filter to the blower box housing.
Install the charcoal air inlet filter(s).
Install and hand-tighten each nut.
Tighten each nut securely using a non-ferrous 7 mm wrench.

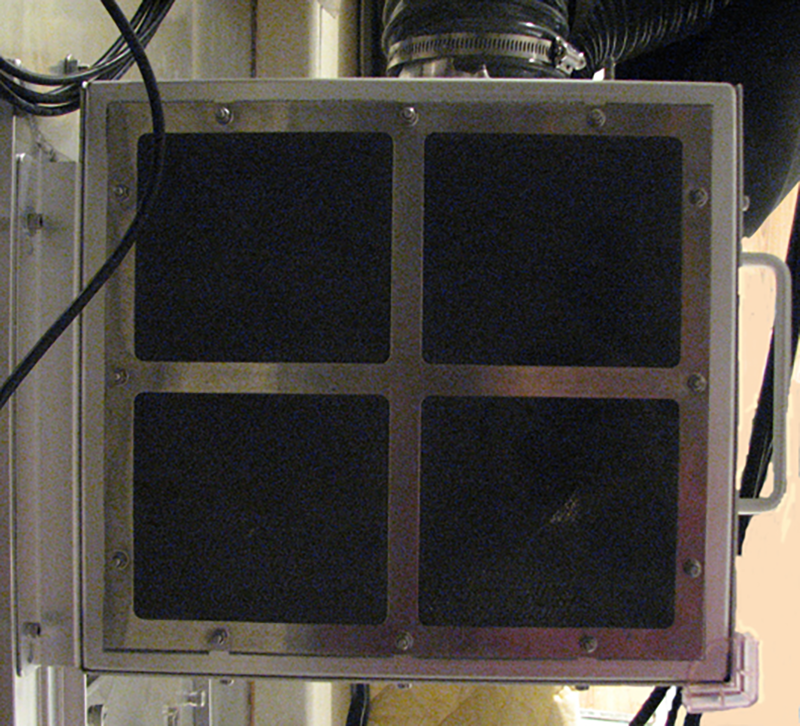

Figure 1. Blower box filter - patient air side
