SRPS and eSRPS Unit and Fan Replacement

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	2 hours	20 minutes

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Hoist Service Kit (service tool needed for complete SRPS replacement only)	1	-	5196226	-
Non-Magnetic Tool Kit (or equivalent)	1	-	5112581	-

Table 3. Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
SRPS Unit	1	-	See FRU Manual	-
eSRPS Unit	1	-	See FRU Manual	-
SRPS Control Board Assembly	1	-	See FRU Manual	-
Fan for SRPS or eSRPS	1	-	See FRU Manual	-

Table 4. Safety

Warning

Possible personal injury or equipment damage!

This unit could fall when using The hoist tool.

Before putting weight on the hoist chain, be sure that the links are aligned properly. This helps keep the chain from binding up, or becoming kinked, which is nearly impossible to correct when the chain is under tension.

Note:

An open (bad) fuse indicates a catastrophic failure. Do not replace the fuse. Replace the SRPS.

About this task

Overview

This document describes the procedure for replacing the Scan Room Power Supply (SRPS) and EcoPower Scan Room Power Supply (eSRPS).

Because of its weight, removing the SRPS from the PEN cabinet requires you to use the hoist service tool. The hoist service tool allows one person to perform this procedure. This is the preferred method to avoid injury.

The eSRPS is light enough to be removed by one person without the use of a hoist.

This procedure also describes fan replacement for both the SRPS and eSRPS.


SRPS	eSRPS

Table 5. SRPS and eSRPS Procedures
SRPS Procedures	eSRPS Procedures
SRPS Removal SRPS Replacement SRPS Fan Replacement	eSRPS Removal eSRPS Replacement eSRPS Fan Replacement

SRPS Replacement

SRPS Removal

Procedure

Perform LOTO on the PEN cabinet. See the MR Service Safety Manual, PN 5452735.
Remove the cables from the front of the SRPS.

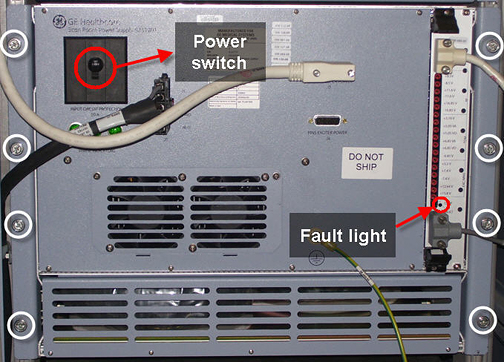

Figure 1. SRPS Front
Loosen the 8 thumb screws on the front of the SRPS.
Set up the hoist service tool according to Hoist Service Kit and Lifting Accessories.

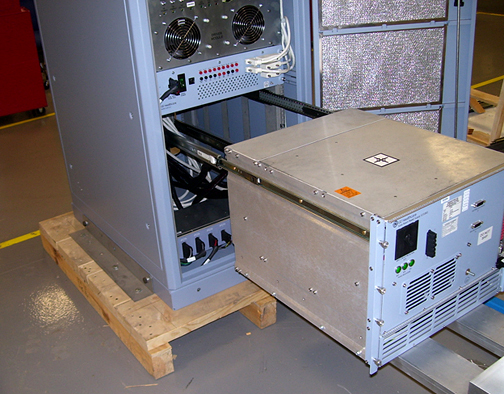

Pull the SRPS out from the PEN cabinet until the slide rails lock into position.

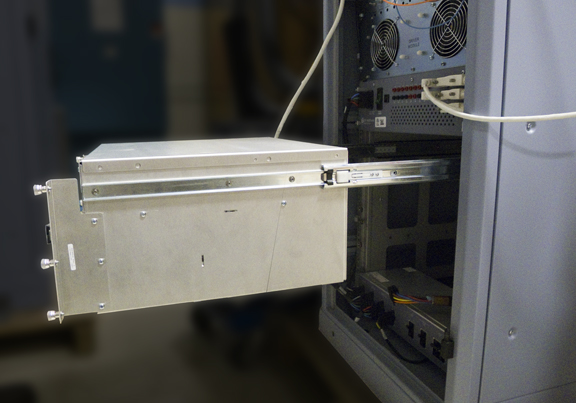

Figure 2. Pull Out SRPS
Remove the cables from the rear of the SRPS.

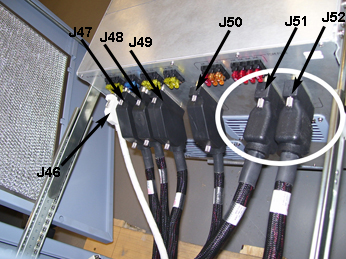

Figure 3. SRPS Rear with J51 and J52 Highlighted
Attach a lifting bracket from the FRU container to each side of the SRPS.

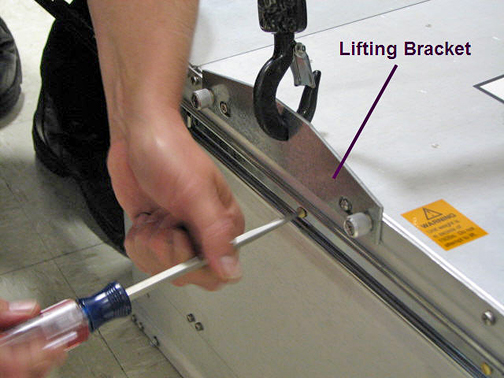

Figure 4. Attach Lifting Brackets
Attach the spreader bar (hoist kit) to the lifting brackets. Attach the spreader bar to the hoist chain.

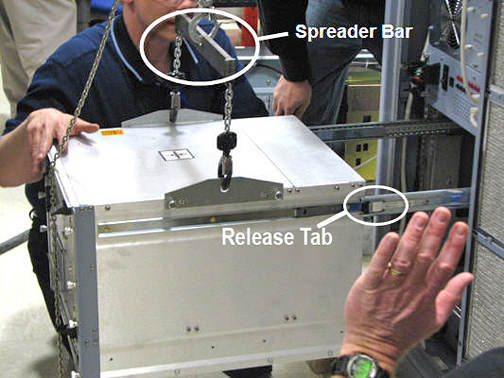

Figure 5. Spreader Bar - Hoist Kit
Ratchet the winch to tighten the hoist chain.

Before putting weight on the hoist chain, be sure that the links are aligned properly. This helps keep the chain from binding up, or becoming kinked, which is nearly impossible to correct when the chain is under tension.
Press the release tab and pull out the SRPS to release it from the rail.
Release the PEN cabinet outer slide rails and slide them back into the cabinet.

You may want to use a screwdriver to release the outer slide rail.

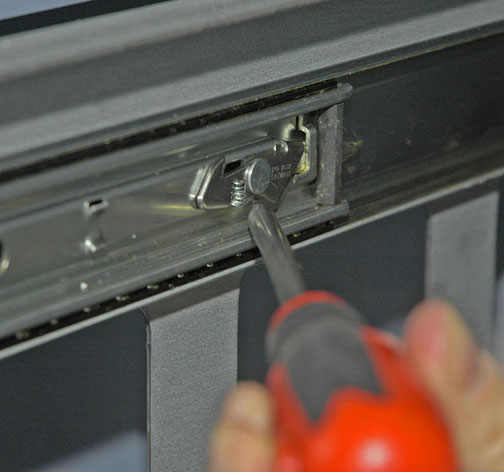

Figure 6. Release Outer Slide Rail Locking Levers
Lower the SRPS onto the FRU packaging platform for removal.

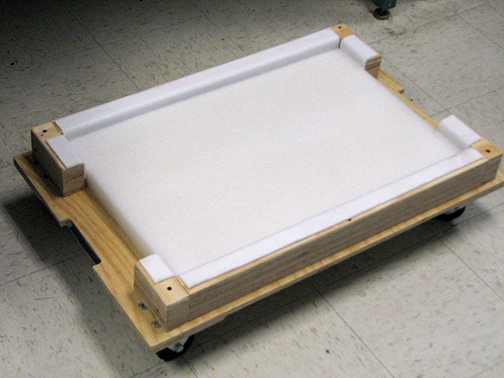

Figure 7. SRPS FRU Packaging
Loosen the hoist chain and remove the spreader bar.
Remove the lifting brackets.

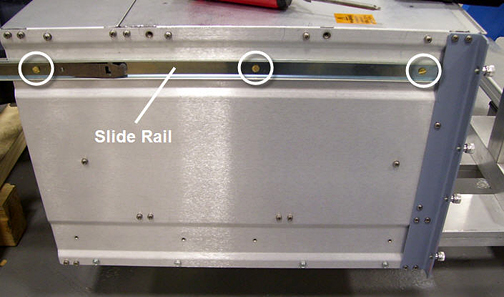

Remove both slide rails from the SRPS.

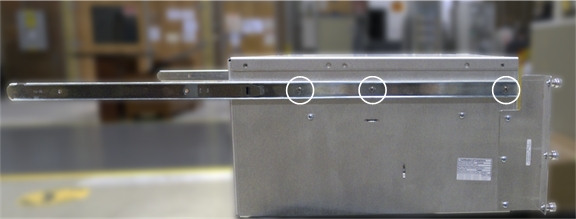

Figure 8. Remove Slide Rails
If present, remove the dongle from J50 of the failed SRPS unit to transfer to the new SRPS unit.

SRPS Replacement

Procedure

Note:
After the SRPS is replaced, the final system configuration should have a dongle (5172838-2) on the new SRPS at J50, or on the PEN panel at J50 from the magnet room side.

Attach both slide rails to the new SRPS.
Attach both lifting brackets to the new SRPS. See Figure 4.
Attach the spreader bar (hoist kit) to the lifting brackets. Attach the spreader bar to the hoist chain. See Figure 5.
Ratchet the winch to tighten the hoist chain and begin lifting the SRPS.
Slide out the PEN cabinet slide rails a short distance to see how high to lift the module.
Notice

The slide rails for both the SRPS and PEN cabinet must be aligned for proper insertion. Take care not to damage the roller bearings on the mounted slide rails.
After the SRPS is aligned with the outer rails, pull out each PEN cabinet outer slide rail fully, until each locks into position.
Attach the cables to the rear of the SRPS. See Figure 3. Ensure that J51 and J52 are installed correctly.
Loosen the chain tension with the winch.
Remove the spreader bar from the lifting brackets.
Remove the lifting brackets.
Press the release tab on each rail and carefully slide the SRPS completely into the PEN cabinet slide rails until they lock into position.
Tighten the 8 thumb screws on the front of the SRPS.
Refer to the Finalization section for checkout and proper operations.

SRPS Fan Replacement

Procedure

Perform LOTO on RF and PEN cabinets. See the MR Service Safety Manual, PN 5452735.
Determine which fan you are replacing (see Figure 9 and Figure 10).
- If replacing fan 5 or 6 (front fans), see Replacing Front Fans.
- If replacing fan 1, 2, 3, or 4 (rear fans), see Replacing Rear Fans.

  Note:
  If replacing fan 1, 2, 3, or 4, use the lifting fixture and remove the SRPS from the cabinet. Service access to fans is restricted when the power supply is left on the rails; fan replacement is possible but difficult.

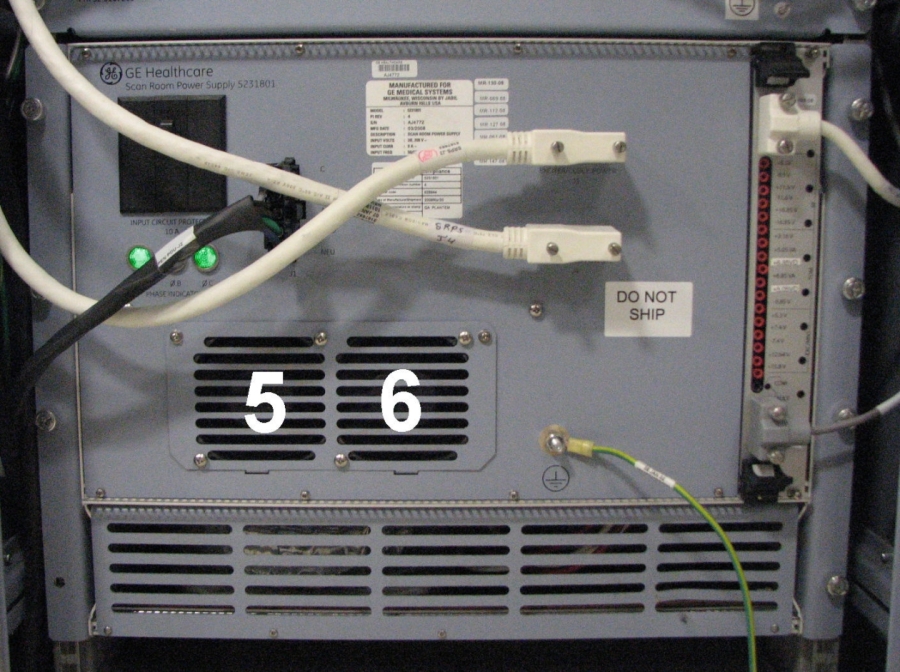

Figure 9. SRPS Front Fans

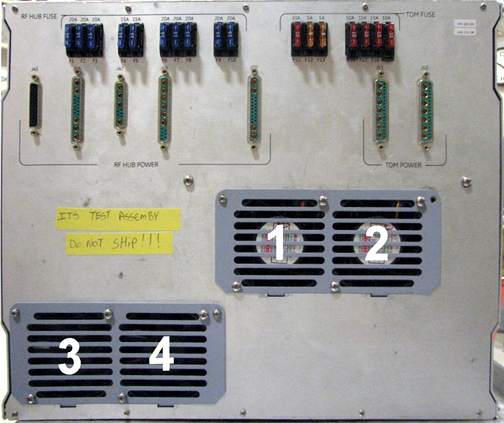

Figure 10. SRPS Rear Fans

Replacing Front Fans

Procedure

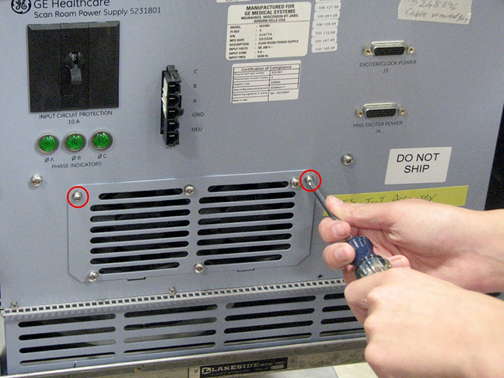

Remove the top 2 screws from the fan cover.

Figure 11. Removing Fan Cover

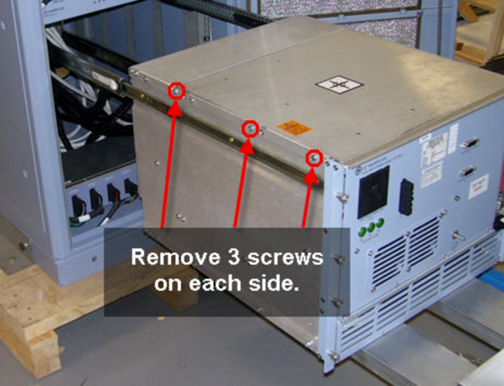

Disconnect the appropriate cable using quick release. If you are unable to access the cable, first disconnect all cabling routed to the front of the SRPS. Then, remove the top cover by sliding the SRPS out of the cabinet and removing 3 screws on each side.

Figure 12. Removing Top Cover from Front End of SRPS
Remove the fan assembly from the fan cover by removing 2 screws.

Figure 13. Removing Fan Assembly

Note:
Pay careful attention to the label orientation on the fan. When installing the new fan, verify that the label is in the same orientation.
Install the new fan.
Reconnect all cabling appropriately.
Replace all covers.
Restore power. See the MR Service Safety Manual, PN 5452735.
Check the Fault light on the SRPS to verify that it is not lit.

If the Fault light is lit, check all cable connections.
Refer to the Finalization section for checkout and proper operation.

Replacing Rear Fans

Procedure

Disconnect all cables routed to the front of the SRPS. See Figure 1.
Slide the SRPS completely out of the PEN cabinet by removing 8 thumb screws.
Note:
When replacing fan 1, 2, 3, or 4, use the lifting fixture and remove the SRPS from the cabinet. Service access to fans is restricted when the power supply is left on the rails; fan replacement is possible but difficult.

Disconnect the cable connections in the rear to access the fans.
Remove the top 2 screws from the fan cover.
Disconnect the appropriate cable using quick release. If you are unable to access the cable, remove the top cover by loosening a screw on each side.

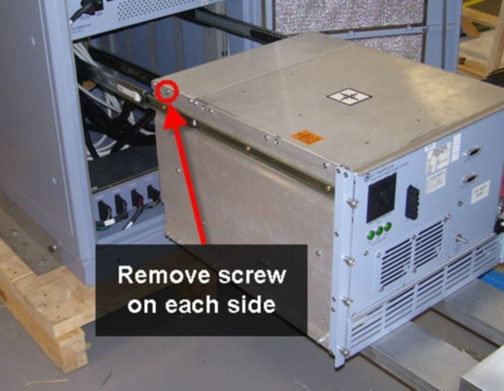

Figure 14. Removing Top Cover from Back of SRPS
Remove the fan assembly from the fan cover by removing 2 screws. An example is shown in Figure 13.

Pay careful attention to the label orientation on the fan. When installing the new fan, verify that the label is in the same orientation.
Install the new fan.
Reconnect all cabling appropriately
Replace all covers.
Restore power and remove LOTO from RF/PEN cabinets. See the MR Service Safety Manual, PN 5452735.
Check the Fault light on the SRPS to verify that it is not lit.

If the Fault light is lit, check all cable connections.
Refer to the Finalization section for checkout and proper operation.

eSRPS Replacement

eSRPS Removal

Procedure

Perform LOTO on the PEN cabinet. See the MR Service Safety Manual, PN 5452735.
Remove the cables from the front of the eSRPS.

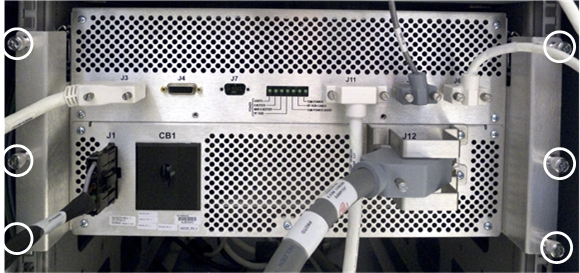

Figure 15. eSRPS Front
Loosen the 6 thumb screws on the front of the SRPS.
Pull out the eSRPS from the PEN cabinet until the slide rails lock into position.

Figure 16. Pull Out eSRPS
Press the release tabs and pull out the eSRPS to release it from the rails.
Remove both slide rails from the eSRPS.

Figure 17. Remove Slide Rails

eSRPS Replacement

Procedure

Install the slide rails on the new eSRPS unit.
Connect the eSRPS rails to the mounting rails in the PEN cabinet, and slide the eSRPS into the cabinet.
Use the thumbscrews on the front of the eSRPS to secure the unit to the cabinet mounting rails.
Connect the cables to the front of the eSRPS.
Restore power to the PEN cabinet. See the MR Service Safety Manual, PN 5452735.

eSRPS Fan Replacement

Procedure

Perform LOTO on the PEN cabinet. See the MR Service Safety Manual, PN 5452735.
Remove the eSRPS from the PEN cabinet. See eSRPS Removal.

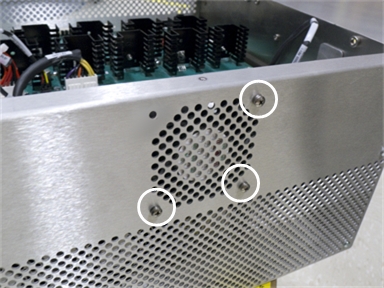

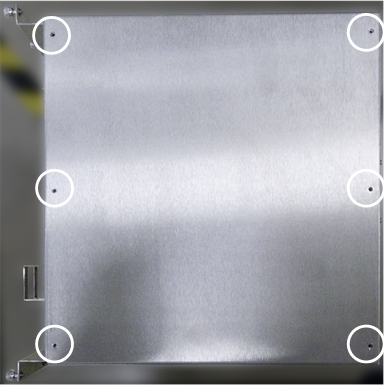

Remove the top cover of the eSRPS by removing the screws securing it to the power supply.

Figure 18. eSRPS Top Cover Screw Locations
Disconnect the fan cable.

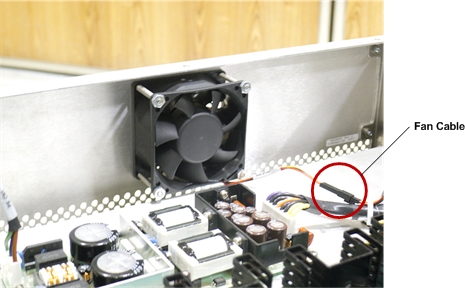

Figure 19. eSRPS Fan Cable
Remove the screws securing the fan to the rear of the eSRPS.

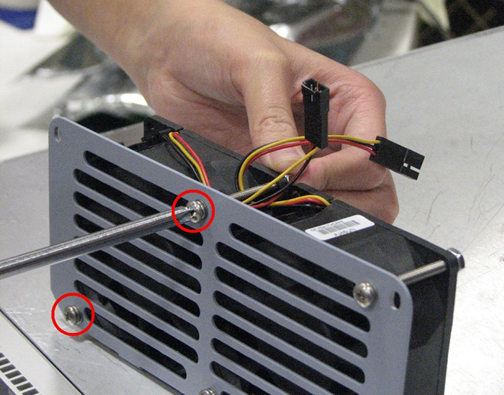

Figure 20. eSRPS Fan Screws
Attach the new fan to the inside rear of the eSRPS.
Connect the fan cable. See Step 4.
Attach the top cover of the eSRPS with screws.
Install the eSRPS in the PEN cabinet. See eSRPS Replacement.
Restore power to the PEN cabinet. See the MR Service Safety Manual, PN 5452735.

Finalization

Procedure

After replacing the unit, perform a quick scan to ensure proper functionality.
After fan replacement, check the error log to verify that there is no longer a fan failure.
