Doing the Universal Power Monitor (UPM) I/O data diagnostic

The Universal Power Monitor (UPM) I/O data diagnostic reads the power supply information from the UPM board.

Topic ID: id_SL11817511-1224745

Disclaimer

Depending on your service agreement, not all service tools, diagnostics, and utilities referenced in this document may be accessible. Contact your sales person for information on available service license packages.

Topic ID: id_SL14077538-1224745

Diagnostic description

Topic ID: id_SL14077539-1224745

Diagnostic path

Diagnostics > System Function > RF > UPM Diagnostics

Diagnostics > Hardware Location > Integrated System Cabinet > RF > UPM Diagnostics

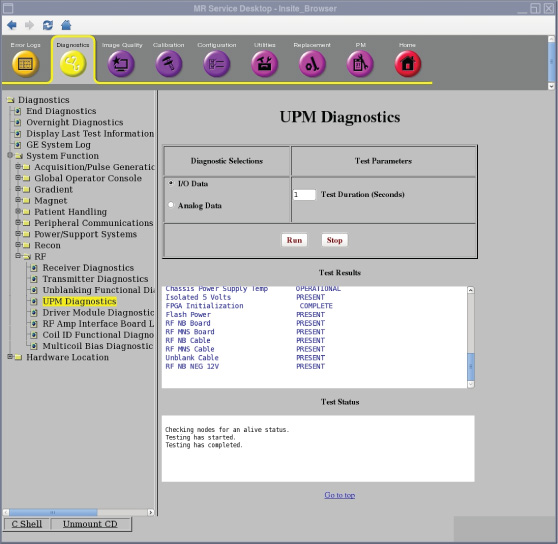

Figure 1. I/O status
Topic ID: id_SL14077540-1224745

Purpose

The UPM diagnostic reads the power supply information from the UPM board.

Topic ID: id_SL14077541-1224745

Components tested

  • Chassis Power Supply
  • Isolated 5 Volts
  • FPGA Initialization
  • Flash Power
  • RF NB Board and Cable
  • RF MNS Board and Cable
  • Unblank Cable
  • RF NB Negative 12 Volt
  • RF MNS Negative 12 Volt
Topic ID: id_SL14077542-1224745

Requirements

  • No special requirements.
Topic ID: id_SL14077543-1224745

Test sequence

  1. On the UPM Diagnostics screen, select I/O Data.
  2. Modify Test Parameters as necessary.
  3. Click Run.
Topic ID: id_SL14077544-1224745

Results

A blue color indicates a normal result. A red color indicates an error.
