Front Top Cover
Prerequisites
Procedure
- Remove following assembly and covers.
- Remove the three (3) M10 x25mm screws and M10 Nylon flat washers
on each side of the Front Top Cover.

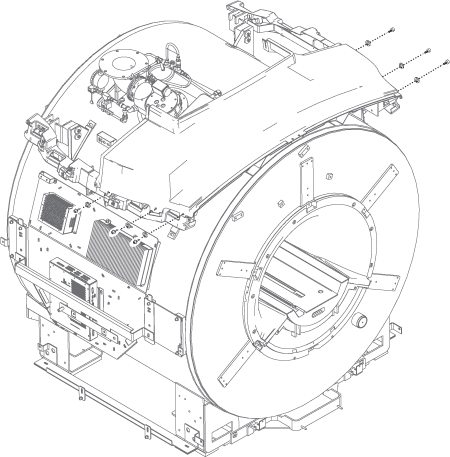

Figure 1. Remove screws and washers
- With one person holding each side, slide the Front Top Cover
toward the rear far enough to lift it off.

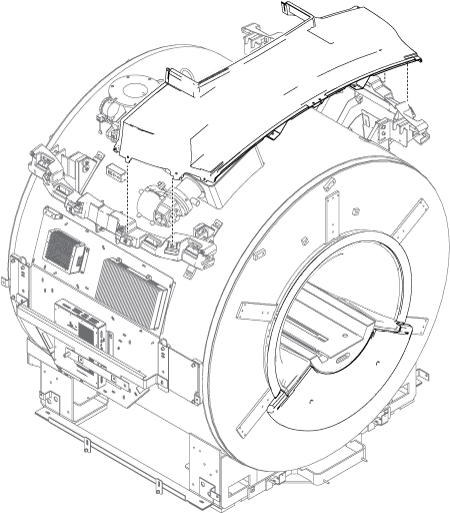

Figure 2. Side Cover Removal
- Installation is reverse order of removal.
- Screw the adjusting screw to touch on the magnet.

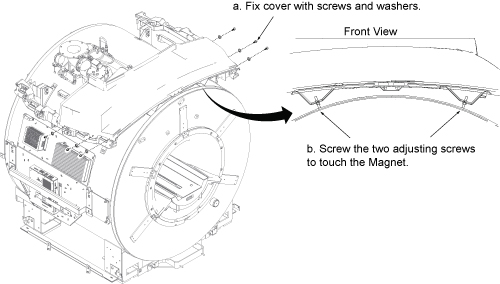

Figure 3. Adjusting screws
Finalization
No finalization steps.
