Right and Left Side Cover

Prerequisites

note: Please check the part number when you order the FRU.

Procedure

  1. Remove Side Middle Cover(Left or Right).
  2. Remove the screws of side cover as shown.
    note:

    The illustration is left side cover. The right side cover is same as left side cover.

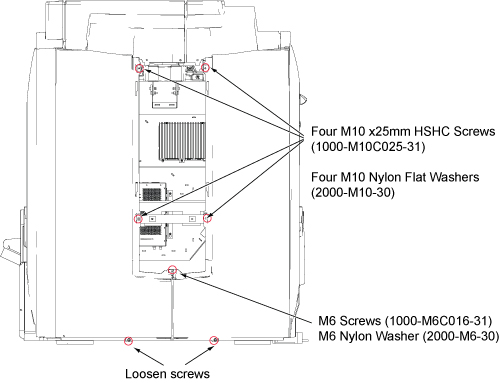

    Figure 1. Screw

  3. Lift the cover up and bring it backward to remove the cover.

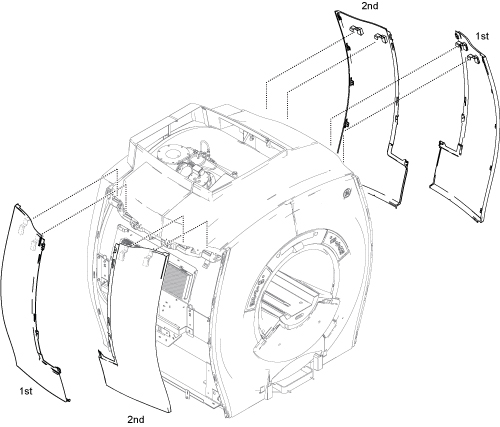

    Figure 2. Side Cover Removal

  4. Installation is reverse order of removal.

Finalization

No finalization steps.
