Right and Left Side Center Cover

Prerequisites

1 Removing the Left Side Center Cover

Procedure

  1. Remove the M6 x 16mm HSHC screw and M6 Nylon Flat Washer at the bottom of the Left Side Center Cover.

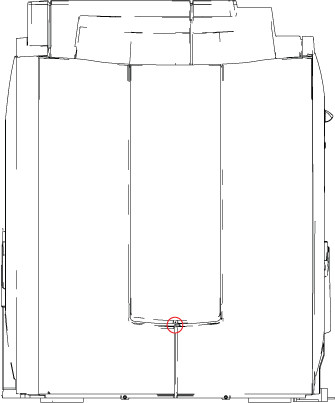

    Figure 1. Left Side Center Cover

  2. Holding the cover on each side, lift cover up and off its two support brackets.

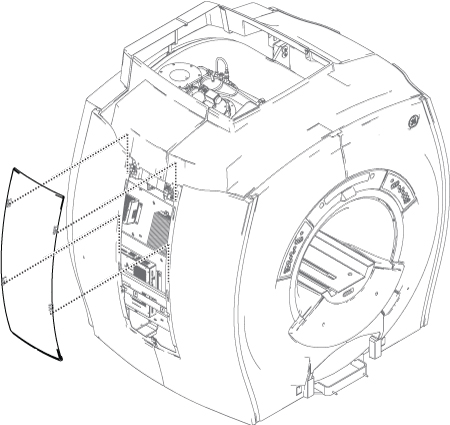

    Figure 2. Left Side Middle Cover Removal

  3. Installation is reverse order of removal.

2 Removing the Right Side Center Cover

Procedure

  1. Label locations as needed and disconnect all cables except for the top PG cable.
    note:

    The PG cable is fiber optic and should be handled with care.

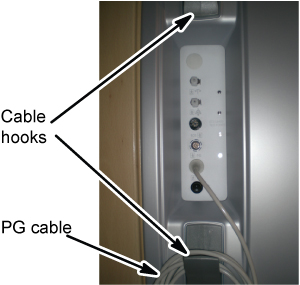

    Figure 3.

  2. Remove the Right Side Center Cover by the same methods as “Left Side Center Cover”.
  3. Installation is reverse order of removal.

Finalization

No finalization steps.
