16CH RRx

Prerequisites

Table 4. Safety

danger

STRONG MAGNETIC FIELD!
FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Notice Image

warning

ELECTROCUTION HAZARD!
DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.
LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Procedure

Remove right middle side cover and right side covers.
- Side Middle Cover (Left side Only)
- Side Covers (Left Front side Only)

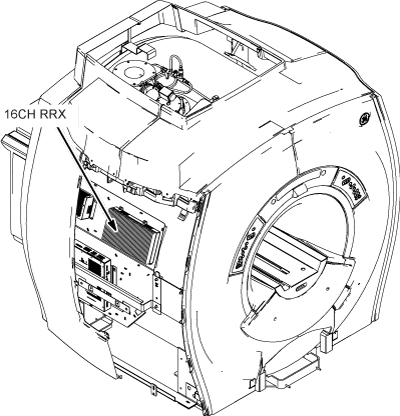

Figure 1. RRX Location
Disconnect all connectors from RRX.

note:
Handle the Fibre Optic cables with care, they are very fragile.

Figure 2. RRX Cable Removal

caution

RRx contains ferrous materials.
Do not bring it very close to magnet bore during replacement.
If it is very close to the magnet bore, it will be attracted to the bore with great force.

Loosen 4 screws and remove RRX.

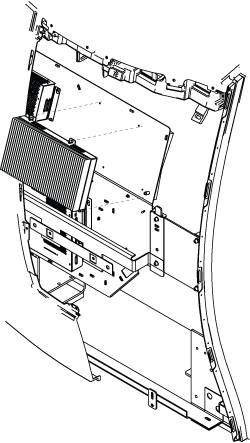

Figure 3. RRX Removal
Restore it by the reverse order of the removal.

Finalization

Restore the Power. Refer to System Cabinet PDU Main Breaker LOTO Procedure.
Perform the following Diags and confirm that all of the tests are passed.
Perform System Gain Calibration.
Perform one Body or Head Scan.
Perform SPT Coherent Noise Test .
note:
Perform SPT Coherent Noise Test Only by selecting 'No' for 'Select All Tests?' and 'ON' for 'Coherent Noise'. No need to perform SPT Full test.
