Rear end bell removal and installation

Prerequisites

Table 1 Personnel requirements
Required persons Preliminary requirements Procedure Finalization
2 Not Applicable 135 minutes 15 minutes
Table 2 Tools and test equipment
Item Quantity Effectivity Part number Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set 1 - 5112581 -
Table 3 Replacement parts
Item Quantity Effectivity Part number Manufacturer
Rear End Bell Assembly 1 -

Refer to the FRU Manual

 -
Table 4 Safety
  • warning
  • Strong magnetic field
  • Ferrous materials can become dangerous projectiles in the presence of the magnetic field that the magnet produces.
  • Do not bring any ferrous tools or equipment into the magnet room.

Procedure

  1. Perform LOTO on the PDU. See the MR Service Safety Manual, PN 5452735.
  2. Remove the front portion of the split bridge Bridge and Longitudinal Drive Belt Replacement.
  3. Remove the rear cosmetic covers Rear Cosmetic Cover Removal and Installation.
  4. Remove the nuts and washers holding the rear pedestal to the magnet, and move the rear pedestal away from the magnet.

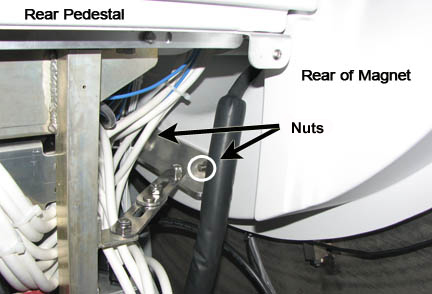

    Figure 1. Remove nuts securing pedestal to magnet enclosure

    5. Notice Image
    • caution
    • Risk of injury
    • The part in this procedure is heavy.
    • Avoid awkward body positioning. Use proper lifting techniques when handling the rear end bell.
  5. Remove the five screws holding the rear end bell to the turtle bracket.

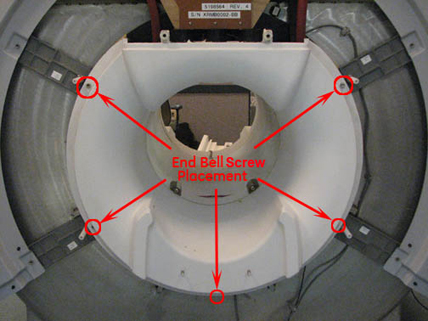

    Figure 2. Rear end bell screws

    6. Notice Image
    • notice
    • Risk of product damage
    • Damage to the cables may occur
    • Several cables and hoses, including fiber optic cables,are located behind the rear end bell. Take care when removing the end bell not to force or pull on any cables.
  6. Remove the two RF transmit cables from the RF body coil.
  7. Remove the patient air hose from the rear end bell.
  8. Remove the two RF coil cooling air hoses.
  9. Remove the rear end bell.
  10. Reverse the above steps to install the rear end bell. Confirm the gap between the rear end bell and the RF body coil is 2.5 +/- 0.5 mm with a desired gap of 2.0 mm.

    If the gap measurement is outside the desired range, see RF Body Coil Replacement.

  11. Verify proper fit of the covers.

Finalization

  1. Remove LOTO from the PDU. See the MR Service Safety Manual, PN 5452735.
  2. Verify that the speaker, patient air, and bore lights work.
  3. Do a body scan to ensure the system is working properly (see Doing a check scan).
