Rear cosmetic cover removal and installation

Prerequisites

Table 1 Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	1 hours	Not Applicable

Table 2 Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set	1	-	5112581	-

Table 3 Safety

Strong magnetic field
Ferrous materials can become dangerous projectiles in the presence of the magnetic field that the magnet produces.
Do not bring any ferrous tools or equipment into the magnet room.

Removing the rear cosmetic cover is needed when replacing the gradient coil, rear bell, split bridge, and busbar.

Remove the rear pedestal cover.
Remove the two hose cover screws and remove the hose cover.

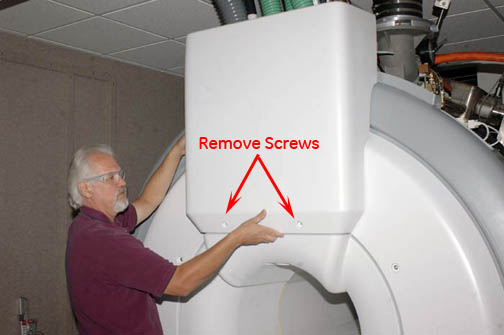

Figure 1. Removing hose cover
note: To remove the left side rear cosmetic cover, disconnect the RF Hub blower air hoses from the top and bottom of the cover.
Remove the four rear cosmetic cover screws.

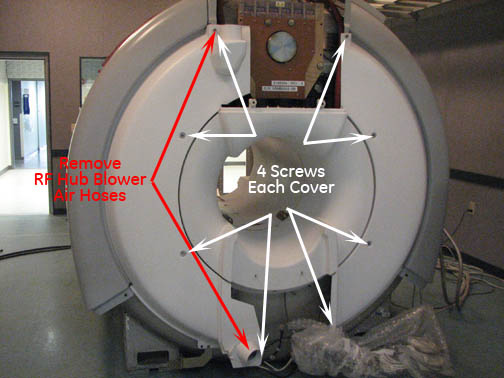

Figure 2. Rear cosmetic covers
Pull the cosmetic cover away from the magnet to release the cover from the poppers.

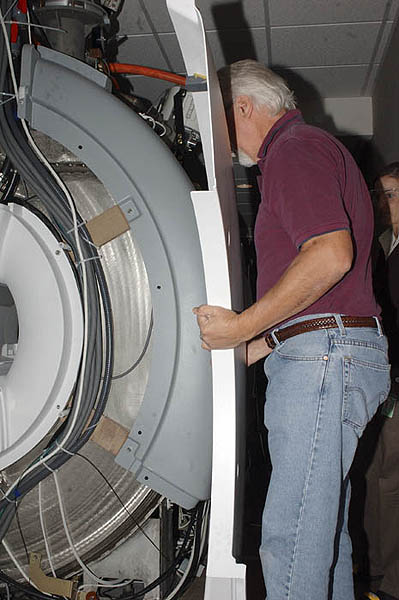

Figure 3. Removing cosmetic cover
To install the cosmetic cover, reverse the removal procedures.

No finalization steps.
