• Optima MR450w BASE 1.5T System Service Methods
  • 5690012-2EN Revision 3
  • Object ID: 00000018WIA30002130GYZ
  • Topic ID: id_15271091 Version: 3.0
  • Date: Aug 29, 2019 1:47:22 AM

Cradle release from carriage adjustment

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1 -15 minutes -
Tools and test equipment
ItemQuantityPart numberManufacturer
Non-ferrous Medium Slotted Screwdriver1--

About this task

Overview The LPCA mechanism allows the cradle to be released from the LPCA by twisting the handle located at the rear of the patient cradle. The threaded actuator on the LPCA must be adjusted properly so that the LPCA latch hook engages cradle sufficiently, yet allows hook to be raised to release cradle.

Procedure

  1. Unlatch LPCA from cradle and drive LPCA to rear of magnet.
  2. Remove LPCA cover by unscrewing four top screws.

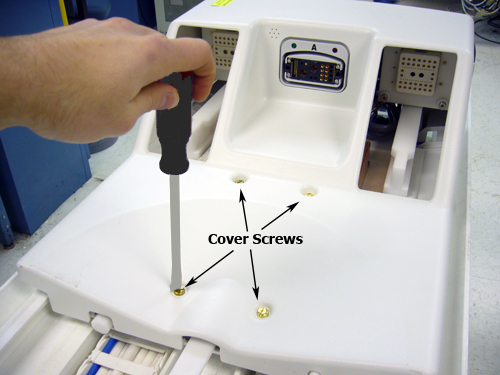

    Figure 1. LPCA cover screws
  3. Dock patient transport, if necessary.
  4. Latch LPCA to cradle.
  5. Ensure that the LPCA meets the following criteria:
    1. LPCA latch hook must be low enough to positively engage cradle.
    2. LPCA latch hook must be high enough to be disengaged from cradle when cradle handle is twisted. Verify that the LPCA can be moved into the bore without moving the cradle.
  6. If adjustment is needed, see Cradle Release Block Adjustment.
  7. Replace LPCA cover.

Finalization

No finalization steps.
