Field Replaceable Units

Cables may be listed as individual FRUs or as part of a cable collector. Collectors may be LONG or SHORT. SHORT cables are used when equipment room cabinets are located near the rear of the magnet room. LONG cables are used when equipment room cabinets are located near the front of the magnet room.

Some FRUs are optional or have multiple options available. Check the full description for different sizes, finishes, or system features (such as GEM or non-GEM).

Some parts are identified as RoHS compliant. When ordering a replacement part, request the same number, if possible. If the original part is not available, an RoHS part may be substituted.

FRUs that are part of option catalogs are typically shown in the area where they would be installed.

Select a category from the table to display FRUs.

Coil FRUs are listed separately as Coil Information.

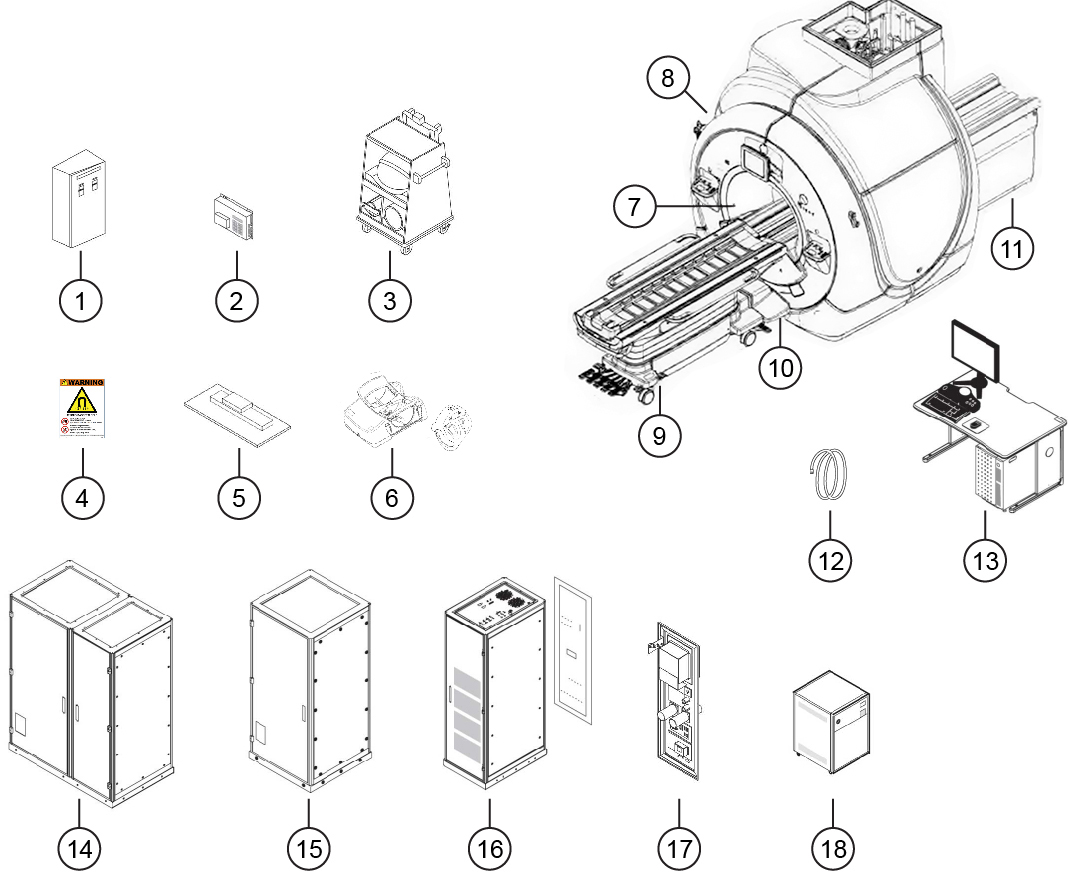

Table 1. FRU Categories

1	Main Disconnect Panel
2	Magnet Rundown Unit and Monitors
3	Miscellaneous Repair Kits, Service Phantoms and MRE Hardware
4	Warning Signs and Labels
5	Patient Handling and Pneumatic Patient Alert System
6	Coils
7	Gradient and RF Body Coils
8	Magnet Enclosure and Components
9	Patient table
10	Magnet Docking Parts
11	Rear Pedestal
12	Interconnect Cables
13	Operator Workspace
14	PGR Cabinet
15	Heat Exchanger Cabinet (HEC)
16	Penetration Cabinet
17	Secondary PEN Wall (SPW)
18	Shield Cooler
19	Options
