SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30E00E20GYZ
Topic ID: id_13106599 Version: 9.20
Date: Jan 21, 2022 12:33:34 PM

ISC FRU

ISC FRU List

Table 1. ISC FRU
Item Number	Part Number	Description
1	5490171	ASC CHASSIS with BP-PS
2	5554633	ASC Fan Assembly
3	5496754	ASC Power Supply FRU
4	5250156-51	NB Dual Drive AIF - RoHS
4	5250156-61	NB Dual Drive AIF Board with Cyclone 10 Note: Requires PX29.1 or later.
5	6250264	Quiet RF Detector Board
6	6250266	Quiet MR UPM Processor RoHS
6	6250266-10	QUPM Processor Board
7	2329754-51	Terminator, 50 OHM SMB, RoHS
8	5502071	ISC Top Fan Assembly
9	6859110	Exciter DCPS
10	6859111	Driver Module DCPS
11	6859112	ICE DCPS
12	6859113-2	DPP LED DCPS
13	6859114-2	IRD DCPS
14	N/A	N/A
15	5800078-2 5758591	3.0T Narrowband Dual Drive Exciter Reference Clock Assembly FRU Twinax 100 Ohm Terminator (for use with exciters on systems that have DS DPP configuration)
16	N/A	N/A
17	5138526-3	Driver Module_Lite3 for BAMBOO
18	5789922	Cabinet Monitor 3 ISR Assembly
	5749299-2	Contactor PWR Cable Kizuna - CMON 109
	5748353	Cable Unblank, Exciter J7 To Cabinet Monitor 3 (J4) - CMON 118
	5763050-2	Contactor Status Cable, SYS PDU To Cab Mon, Kizuna - CMON 108
	5749855-2	Cable ISC Leak Sensor - CMON 102 / CMON 103
	5749872-2	Cable ISC TMP SENS To Cabmon Kizuna - CMON 104 / CMON 105
	5795457-5	Cable Hub Port5 to Cabinet Monitor 3 (J8)
	5737697-2	Cabinet Monitor 3 Main IO Interface Cable - CMON 201
	5750815-2	Cabinet Monitor 107 ISC IO (J108) - CMON 107
	5829258	Cable AC Trigger, Cabinet Monitor 3 ISR To ICE (J43) - CMON 117
	5749870	Ethernet Switch to Cabinet Monitor Cable
19	5139480-2	8-port Switch Kit with 4 Cushions
20	6200100-102	ICE Assembly: PSC, No_XGP, 3 REPs
21	5485930	ICE Fan (60 x 60)
22	See the ICN table below.
23
24
25
26	5167111-52	Patient Handling Power Supply 2 (RoHS)
27	6859116	Power Quality Event Sensor Assembly
28	5675002	PDU Main Breaker
29	5675052	EMI Filter 100A for PDU FRU
30	5351040	System Contactor
31	5675053	Emergency Off contactor, System contactor
32	5675050	1 Pole Breakers for PDU
33	5675051	3 Pole Breakers for PDU
34	5539116	Splash Guard Assembly 1
35	5539117	Splash Guard Assembly 2
36	5539118	Leak Sensor Under Bracket Assembly
37	5539119	Leak Sensor Cable Tray Assembly 1
38	5539120	Leak Sensor Cable Tray Assembly 2
39	5342542-2	Dual Drive Radio Frequency Amplifier FRU
40	6237000	GP4 (SFP not included) Note: If 6237000 is installed on the system but is no longer stocked, order the following: 6237000-3, GP4 (SFP not included)
41	5453107-2	SSSA with FRU Packing
42	5451437-2	FRU for SSSA Control Board Assembly in Chassis
43	5475892	Gradient Filter Assembly
44	5442168-2	SSSPS with FRU Packing
45	5474302-2	FRU for SSSPS Control Board Assembly in Chassis
46	5561291	Temperature Sensor Assembly
47	5317298	ISC iButton Collector
48	5309197	1kV Dynamic Disable Filter Module
49	6859100	ISC Penetration Wall Filter Box
50	5561298	Feed thru Panel for RF Bias
51	5561574	Gradient Cable Asm PS to AMP X
52	5561574-2	Gradient Cable Asm PS to AMP Y
53	5561574-3	Gradient Cable Asm PS to AMP Z
54	5487275	PP GP4 PL
55	5499906	RF shield for KIZUNA ISC.
	5764096-2	Fiber Optic Transceiver FRU
	5266756	Hoist Beam, HDv Equipment Room, Extrusion Profile
	5677000	PDU Frame Assembly with Breakout

ICN

Table 2. ICN
ICN Type	ICN Part Number	Description	Supported Software		Low Level FRUs
ICN Type	ICN Part Number	Description	Min SW	Max SW	Power Supply	HDD	SDD	SD Card (ICN Vflash Diagnostics Card)
Dell R640 (Gen7-DL) Performance	5941000-9	Dell R640 (Gen7-DL) Performance ICN with Dolphin 1 Interface Card and GPU Card	PX29.1_R03	N/A	5931100-21	N/A	5941100-23	N/A
Dell R640 (Gen7-DL) Performance	5941000-10	Dell R640 (Gen7-DL) Performance ICN with Dolphin 2 Interface Card and GPU Card	PX29.1_R03	N/A	5931100-21	N/A	5941100-23	N/A
ICN PCIe Transition Cable X4-X8 for Dolphin 1 ICN (system with ICE)	5725719	-	-	-	-	-	-	-
PCIe Cable for Dolphin 2 ICN	5887762	-	-	-	-	-	-	-

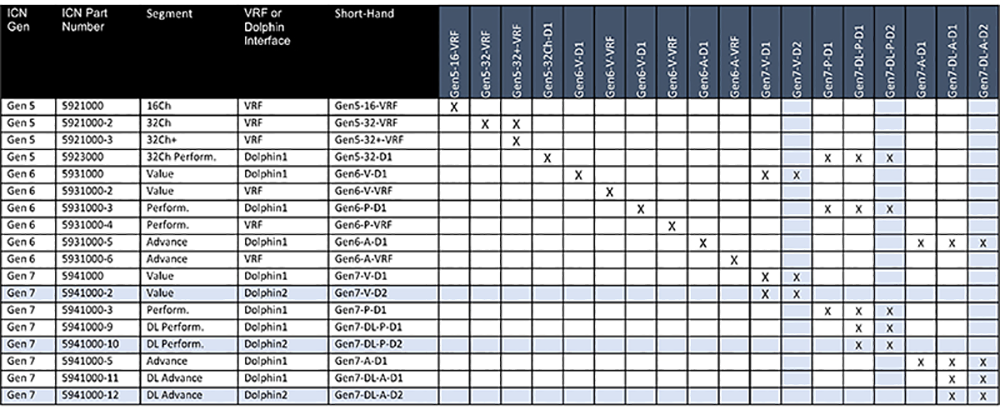

Note: This table represents the possible replacement ICNs for each model. Find the installed model on the left and see what models can be used to replace it. Make sure you have the proper software level to support all possible options as well as PCIe cable if changing dolphin board types.
