TABLE CONTROL BOARD CABLES

Prerequisites

Procedure

  1. System Power must be turned OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker...;
  2. Disconnect the Table from MR Magnet; take it out from the Magnet room. Refer to TAKE TABLE OUT FROM THE MAGNET ROOM
  3. Remove the scissor covers from the table. SCISSOR COVERS
  4. Remove the spiral tube wounded to all Assemblies.

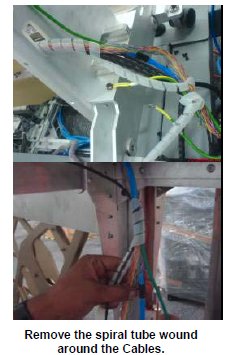

    Figure 1. Remove the spiral tube

  5. Disconnect the Cables from the Control Box extension cable.

    Figure 2. Disconnect the Cables

  6. Remove the cables connected to the Up sensor Limit switch.

    Figure 3. Remove the cables

  7. Remove the Tabletop RH panel in the tabletop assembly.

    Figure 4. Remove the Tabletop RH panel

  8. Remove the cables connected to the Limit switch of the home sensor.

    Figure 5. Remove the cables

  9. Now the Control board cable assembly is free to remove from table.
  10. Now take the new Control Cable assembly.
  11. Rout the lengthier end of the cable in the tabletop.

    Figure 6. Rout

  12. Connect the cable lengthier end to the Limit switch of the home sensor.

    Figure 7. Connect the cable

  13. Fix the Tabletop RH panel in the tabletop assembly.

    Figure 8. Fix the Tabletop RH panel

  14. Connect the Shorter length end of the cable to the Limit switch.

    Figure 9. Connect the Shorter length end of the cable

  15. Rout the cables in the table and wind the spiral tube around all Assemblies.

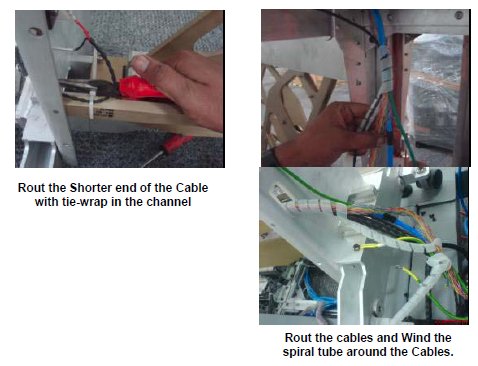

    Figure 10. Rout the cables

  16. Fix the scissor covers to the table. Refer to SCISSOR COVERS.
  17. Move the Fixed Table and install to Dock Frame.
  18. Connect the Cables to the MR Gantry.
  19. Fix the FRP Covers of the Table.

Finalization

  1. Turn the system Power ON. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.
  2. Level the Table and perform Height Adjustment. Refer to LEVELING FIXED TABLE and TOP HEIGHT ADJUSTMENT.
  4. Perform Fixed Table Functional Check. Refer to TABLE CHECKS AFTER INSTALLATION .
