Leak Sensor 2 (Bottom)

Prerequisites

Procedure

  1. Remove L Upper Front Cover. Refer to SC Cover Removal.
    2. Notice Image
    • notice
    • Pay attention for leak sensor not to be wet when pulling out the XFD-PS.
  2. Remove XFD-PS. Refer to XFD-PS Replacement.
  3. Remove bottom leak sensor tray.
    1. Cut tie wraps.
    2. Disconnect Connector.
    3. Remove two screws.
    4. Slide out the tray.

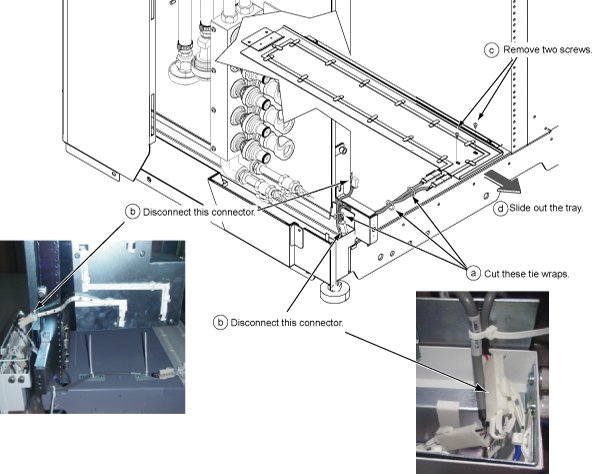

    Figure 1. Leak Sensor (Bottom)

    4. Notice Image
    • notice

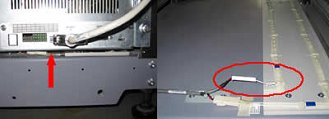

    • The space between XFD-PS and base plate is very small. When inserting the XFD-PS, be careful not to damage the sensor cable.
  4. Installation is reverse order of removal.
