SC Cover Removal

Prerequisites

This procedure describes all of SC cover removal. Refer to the related cover removal only according to the replacement procedure.

L Cover: L Cover

R Cover: R Cover

Rear Cover (Magnet Room Side): Rear Cover (Magnet Room Side)

Water Manifold Access Cover: Water Manifold Access Cover

1 L Cover

Procedure

  1. Raise the handlebar on L Cover.
  2. Unlock 6 fasteners with the coin.
  3. Remove L Cover. Refer to Figure 1

    Figure 1. SC Cover Removal

2 R Cover

Procedure

  1. Remove L Cover.
  2. Raise the handlebar on R Cover.
  3. Unlock 3 fasteners with the coin.
  4. Remove R Cover. Refer to Figure 1

3 Rear Cover (Magnet Room Side)

Procedure

  1. Remove rear cover by removing 6 screws.

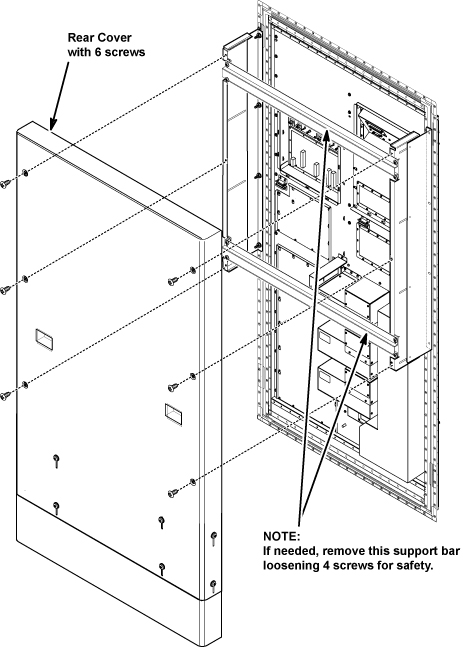

    Figure 2. Rear Cover (Magnet Room Side)

4 Water Manifold Access Cover

Procedure

  1. Remove L Cover.
  2. Remove Water Manifold Access Cover by removing 2 screws. Refer to Figure 3

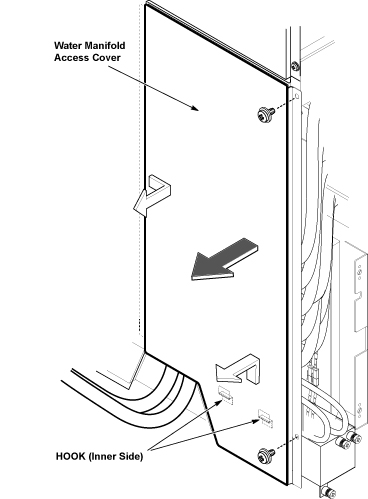

    Figure 3. Water Manifold Access Cover

5 Finalization

Finalization

No finalization steps.
