System and hardware configuration

This topic describes the values and explanation of each parameter for system configuration and hardware configuration in Guided Install.

The MR System is configured for the various hardware interactions within the system using the Guided Install System Configure and Hardware Configure tabs.

Below are the examples of the System Configure and Hardware Configure tabs, respectively (these are only examples and are subject to change based on software revision).

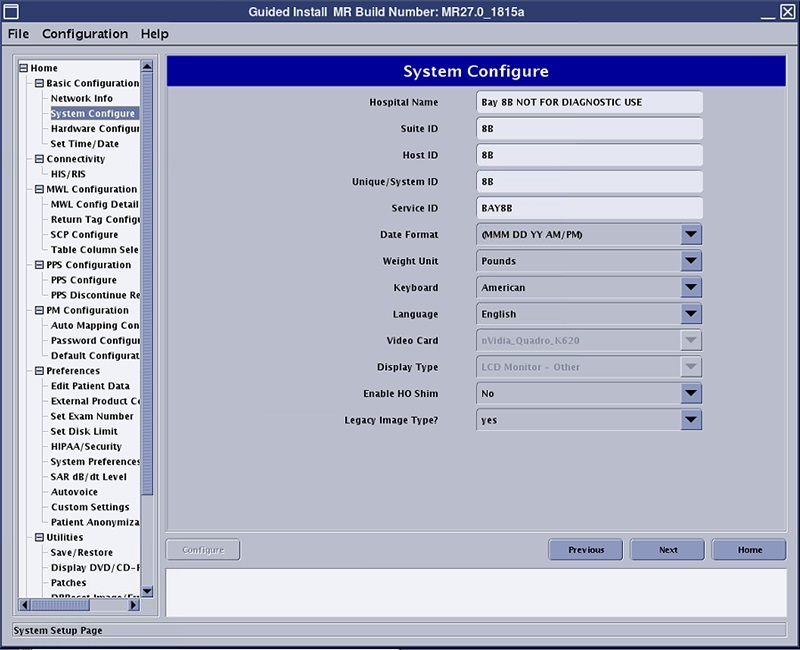

Figure 1. System Configure tab (example)

The following table provides guidance to fill out the various system configuration parameters.

System configuration
ParameterExplanationValue
Hospital NameEnter the name of the hospital or site that will appear at the top of filmed images.Site-entered
Suite_IDEnter the name of the suite to which the scanner will be connected. If the system is connected to a suite of systems, the name may need to be acquired from the site's system administrator. If the system is stand-alone (not connected to a suite or hospital network), the name is at the option of the installer.Site-entered
Host_IDEnter the name of the system host. If the system is connected to the site's network, the name may need to be acquired from the site's system administrator. If the system is a stand-alone (not connected to a suite or hospital network), the name is at the option of the installer.Site-entered
Unique / System IDThis is the GE CARES Unique system ID. This information is generated through the GEMS local area service manager. A dummy ID can be entered if the correct ID is unknown to speed up installation. The installer can go back and update this field with the correct code later when the correct information is known. An example of a dummy ID could be 123.Site-entered
Service IDThis is the GE CARES System ID. This information is generated through the GEMS local area service manager. A dummy ID can be entered if the correct ID is unknown to speed up installation. The installer can go back and update this field with the correct code later when the correct information is known. An example of a dummy ID could be 123. However it should be noted that the entire GE back office connectivity suite, including Remote Software Download (RSD), is highly dependent on this entry being accurate. Site-entered
Date FormatThis is the date structure to be used/displayed by the system. A choice of one of six options are available. Each with date format and standard time (AM/PM) or military time (24 hour clock). Japanese ERA time format is also provided.(MMM DD YY AM/PM) [(MMM DD YY AM/PM), (DD MMM YY AM/PM), (YY MMM DD AM/PM), (MMM DD YY 0-23), (DD MMM YY 0-23), (YY MMM DD 0-23)]
Weight UnitSelect the unit of measurement desired by the site's staff: kilograms or pounds.Pounds (Pounds, Kilograms)
KeyboardChoose the keyboard language that will be used for this system.American (American, French, German, Italian, Portuguese, Spanish, Swedish, Danish, Dutch, Norwegian, Finnish)
LanguageChoose the language that will be used where the system is being installed.English (English, French, German, Italian, Portuguese, Spanish, Japanese, Chinese, Danish, Dutch, Norwegian, Finnish, Swedish)
Video CardVideo card value is selected automatically.N/A
Display TypeLCD Monitor - Other is selected as default.LCD Monitor - Other
Legacy Image TypeLegacy Image Type: Select the legacy image type for the system being installed: Yes, No.Yes (Yes, No)

The following table provides guidance to fill out the various hardware configuration parameters.

The Guided Install Product Based Selection feature lets you select the product that you are installing during the Load From Cold procedure. The fields in the Guided Install hardware tab are automatically populated based on the product that you select.

Table 1. Hardware configuration
ParameterExplanationValue
Product Name (Parameter available on DV26 and later)Select the product name for the product being installed.

1.5T, 70 cm, Optima MR450w GEM

1.5T, 70 cm, SIGNA Artist T

Field Strength-1.5T
Package Name Gradient driver-coil package name.

XGD

XG2

Gradient TypeGradient driver type.

8920(XGD)

8921(XG2)

Resonance ModuleGradient coil type.XRMW
Magnet Serial NumberEnter the magnet serial number for the installed system. The serial number can be found on the rating plate on the magnet.HM
Magnet Ramp Direction-Forward
Table Limit--
Scan RangeLong is the default value. Select Short if there is not enough room for the cable overhang between the rear ped and the customer wall.

For DV25.0 and earlier, this parameter is seen in the System Configure tab.

Long

Short

Line FrequencySelect the incoming power line frequency under which the installed site will operate. Selections are:
  • 50 Hz
  • 60 Hz

50 Hz

60 Hz

RF Amp Type-

1.5T SRFD2 RF amp

1.5T 16 KW XRFD

Governing BodySelect the governing body according to the Region rule. Selections are:
  • iec
  • MHLW-JIS
  • fda2
  • special1
  • special2
fda2, iec, MHLW-JIS, special1, special2
ISO Vector ZEnclosure and Iso-Z value.1.5T 70 cm magnet enclosure
Magnet Enclosure-

450W GEM: GEM enclosure

Artist T: Artist/Architect

PAC Type-PAC2B/PAC5
RF-Systems Cabinet (RFS)Yes is the default value.Yes
Scanner Channel ConfigurationSelect the channel configuration as applicable.
Note: Some channel configurations may require option keys.
32
Shim Supply TypeNone is the default value.

Select NAV Shim Supply if the system is configured with HO Shim.

None
LPCA/Port Configuration-1 P-port on LPCA
HEC Type/Cooling Cabinet TypeCheck the part number of the HEC at the site and configure. To identify the HEC type, see Identifying HEC type.

G6001EN

G6000EN

UPM Type-

QUPM 1 MHz sampling rate

UPM 100 KHz sampling rate

Table Configuration-None
SSC Type -

MGD

ICE

Receiver Type -RRx
Grad Processor type-None
Table Encoder Calibration Value-None
Altitude in metersThe altitude of the installation site determined using a website. To determine the altitude, see:None
