Tightening connections

About this task

When tightening connections, make note of any that are very loose (for example, two full rotations or more on a single lug). Record this as part of the ePM documentation.

Procedure

Open left front door of the PGR cabinet to expose the front of the PDU.

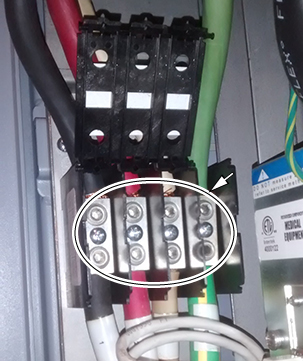

Figure 1. Tighten Connections
Flip up the input power block lid to expose the connections as shown in the illustration below. Test the connections with a multimeter to make sure there is no AC voltage prior to continuing.
Tighten the incoming power and ground connections on the input power block of the PDU with a socket wrench with a 3/16 hex key extension.

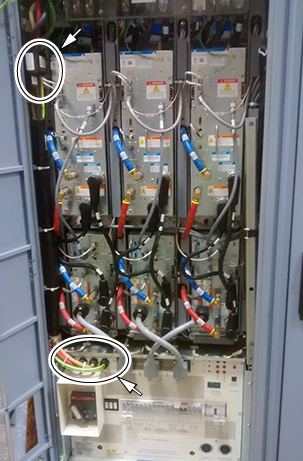

Figure 2. Tighten Incoming Power and Ground
Remove the front PDU panel to expose connections to CB1.
Tighten the L1, L2, and L3 connections at CB1 inside the PDU.

Finalization

If any of the connections were very loose (for example, two full rotations or more on a single lug), record this as part of the ePM documentation.
Make sure all subsystems have powered up successfully.
