Checking and adjusting the patient intercom functionality

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Safety
Before working in any GE Healthcare MR suite or performing any GE Healthcare service procedure, you must: Have read and understood all hazard conditions and safety requirements in the latest revision of the GE Healthcare MR Service Safety Manual (5452735). Have successfully completed all relevant GE Healthcare Environmental Health and Safety (EHS) courses (or for non-GE employees, equivalent workplace training courses). Comply with all site-specific training and workplace safety requirements. If you have any safety concerns at any time, do not begin work or immediately stop work and move to a safe location. Immediately contact your supervisor or site safety officer for instructions on how to proceed.

About this task

Adjustment of GOCAA should only be necessary if:

Field Engineer or customer determines that adjustment is required after performing checks or usage.
GOCAA factory ideal settings are lost as a result of a past adjustment on the site.

Two types of speaker volume settings can be adjusted during checks:

Operator Volume - Controls the speaker volume in the bore (Operator’s voice).
Patient Volume - Controls the volume of the speaker from the Scan Control and Intercom Module (SCIM)/keyboard (Patient’s voice)

Perform all available checks for Operator Volume and Patient Volume before making any adjustments.

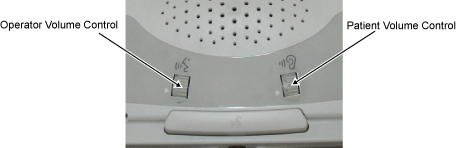

Figure 1. Volume on SCIM

Procedure

Advance the cradle from the Home location 500 mm onto the bridge.
Press Landmark, then Advance to Scan to position the cradle in the bore.
