Observing system tray status icons

The system tray status icons provide information on the status of the Remote Software Download (RSD).

About this task

After the scanner starts, the status system tray shows the availability of software updates and/or connectivity status.

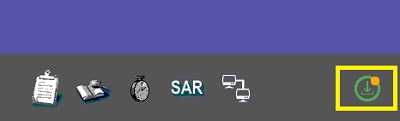

Figure 1. Software download icon
IconStatus

The Download icon displays when a software is available for download () and percentage of completion when the download begins.

Click the icon to see an information screen about the Service Pack. Click Close to close the information screen.

After you start the download, the icon updates as the download progresses, for example:

  • 25% completion
  • 50% completion
  • 75% completion
  • 100% completion

The Resume icon displays if you have paused an install by clicking the Pause Download icon. You can toggle between the Pause Download and Resume icons.

Figure 2. Pause Download
Figure 3. Resume Download

The Install icon displays when a Service Pack has been successfully installed. The icon automatically turns off 20 seconds after it is displayed.

The Fail icon displays when a Service Pack has failed to install. The icon automatically turns off 20 seconds after it is displayed.

The Backoffice icon displays when the MR system is connected to Backoffice. The frequency at which the system checks Backoffice for software updates is every 24 hours.
