LFC Procedure (13BW29.5) for LCGOC/GOC4 Console

1. Record Autovoice Volume control settings (ALT-F3 by Toolchest, upper right corner).

2. Write down all of the system INFO information on the reconfig screens, including the network information (use the appropriate information sheet, found in Console Information Sheets ).

3. Verify and record specific system hardware configuration.

   1. Open a shell and type the following:

      {ctuser@hostname} cat  /usr/g/config/INFO

   2. Record screen information in Console Information Sheets.

      For an example output, see Example Config/INFO Output.

4. If the console has Connect Pro installed, write down the information when you run installhisris so it can be entered on the new console when installing the Connect Pro option.

5. Close the Service Desktop window in the upper left corner of the screen.

If your system does NOT have “Exam Split” option, skip this section.

Perform these steps before powering down your current Operator Console:

1. Open a Unix Shell and type the following:

   1. {ctuser@hostname} su  –

   2. Password: #bigguy

   3. [root@hostname] ls  –l  ~ctuser/ves/.hesMode

      note:

      There are no spaces in the phrase ~ctuser/ves/.hesMode

2. Examine the results.

   • If the results are similar to:

     -rw-r--r-- 1 ctuser users 0 Apr 3 12:43

     /usr/g/ctuser/ves/.hesMode

     Then HES (Hard Exam Split) mode is configured.

   • If the results show ‘No such file or directory’, then VES (Virtual Exam Split) mode is configured.

3. Record Exam Split Mode (Hard or Virtual). This info will be used during the LFC Options Installation.

4. Close the Unix Shell

Save the Jedi Runtime parameters, refer to Software-> HV Subsystem Utilities Jedi Generator Tool for how to save them.

1. Open a Unix Shell and become root:

   {ctuser@ hostname }   su  -

2. Password: #bigguy

   note:

   If the Password has not been modified by the site and is not known, the correct course of action is to contact Local GE Service.

3. To determine the Host Computer BIOS version, type the following:

   {root@ hostname }   dmidecode  |  grep  Ver

   Authorized BIOS versions

      Version: JQ.W1.13US v1.13 for xw8000

      Version: 786B8 v2.10 for xw8200

      Version: 786D5 v2.24 for xw8400

4. Ensure that the Host Computer BIOS version is shown above. If correct, skip the following step. If not correct, perform step 5.

5. If the Host BIOS version is not correct or if you suspect incorrect Host BIOS settings (changes specified by GE from default), follow the instructions for your specific Host type:

   • For HP xw8000, see PC BIOS Install & Setup for HP xw8000 Console REQUIRED: Manually configure all BIOS settings at this time.

   • For HP xw8200, see PC BIOS Install & Setup for HP xw8200 Console REQUIRED: The HP xw8200 has the ability to place the BIOS 2.10 Configuration Floppy into the Host and configure all BIOS settings without any manual entries. Load the BIOS 2.10 Configuration Floppy at this time.

   • For HP xw8400, see xw8400 Host PC BIOS Setup

1. Remove the Operator Console's front cover.

2. Remove the Hospital Backbone Ethernet cable from the Console Bulkhead Assembly, located at the rear of the Operator Console.

3. Insert the OS disk into the DVD-ROM drive on the Host Computer. See the following illustration.



4. Select one of the following methods to re-power the Operator Console:

   1. If Applications are up:

      1. Select the Shut Down button.



      2. Select Restart then OK to restart the system.



   2. If Application Software is down, at the toolchest open a Unix Shell and type:

      1. {ctuser@hostname} sync

      2. {ctuser@hostname} sync

      3. {ctuser@hostname} halt

      4. The Operator Console monitor will display a System halted message when it is acceptable to power OFF the Operator Console.

      5. Power OFF the Operator Console at the front panel switch.



      6. Wait 30 seconds to allow the disk drive to settle; then power ON the Operator Console at the front panel switch.

5. As the computer restarts, the booting process messages appear. After the booting process completes, the boot: prompt appears.

6. At the boot prompt, type the following depending on system type:

   GEHC2 Enter

   note:

   The Console Operating System load takes approximately 20 minutes. If the boot: prompt does not appear, then either the DVD-ROM is bad or the Console Operating System DVD is not installed in the drive.

   Typing GEHC will result in both scan and display being on one monitor and require a LFC.

7. After the OS is loaded, a red button appears and displays Reboot.

8. Remove the OS disk, when it ejects.

9. Press ENTER to reboot.

10. The Host Computer reboots.

    note:

    Do not insert the Application disk into the Host Computer until the system reboots and the [root@localhost] window appears, displaying the [root@localhost root]# prompt.

There is a single Application DVD used for both the Host Computer and the DARC. All applications software will be loaded to the Host Computer during this process.

notice FAILURE TO INSTALL THE CORRECT APPLICATION SOFTWARE AND SELECT THE CORRECT SYSTEM DAS HARDWARE CONFIGURATION WILL RESULT IN SYSTEM DOWNTIME AND DCB CIRCUIT BOARD REPLACEMENT. (THIS FAILURE WILL OCCUR AFTER THE FLASH DOWNLOAD PROCEDURE FLASHES THE FIRMWARE.)

1. After the Host Computer reboots, verify that the window appears with the [root@localhost root]# prompt.



2. In the root@localhost Window, verify the SCSI Tower MOD and DVD are present after the OS load:

   [root@localhost root]# cat  /proc/scsi/scsi

3. Insert the Application DVD into the DVD-ROM drive on the Host Computer. See the illustration below.



4. After approximately 15 seconds a pop-up box appears:



   note:

   If the pop-up box Warning does not appear after two minutes, type the following and wait approximately one minute for the pop-up box to appear.

   mount  /media/cdrom Enter

   /media/cdrom/autorun Enter

5. Select Run Command to run / media / cdrom/ autorun..

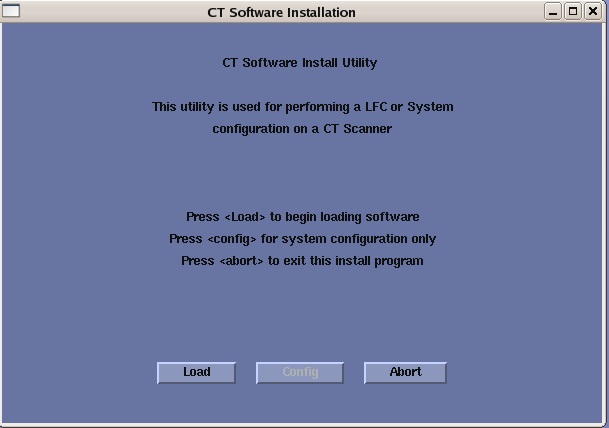

6. After approximately 15 seconds, an Installation Utility window appears. (See illustration, below.)



7. Select Load. A prompt message appears asking if you wish to load the INFO file from the System State DVD.



   • If you do NOT have a System State or the System State is unusable, select No.

   • If you have a System State DVD, select Yes.

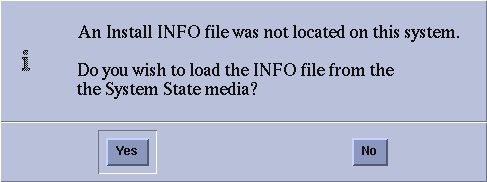

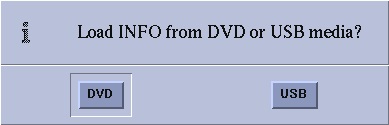

8. A prompt window appears asking if you wish to load INFO file from DVD or USB media. Select DVD or USB where you save system state.

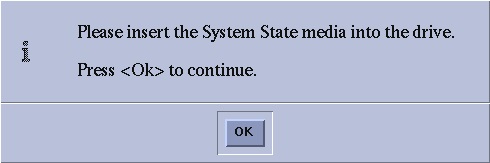

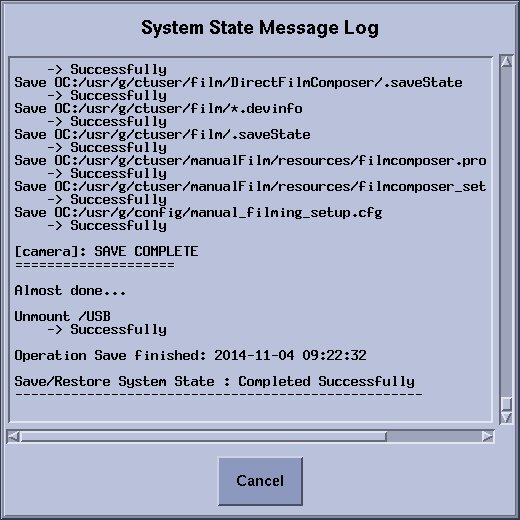

9. A prompt window appears as follows. Ensure the System State DVD is in the DVD drive in the tower (on top of the console) or USB disk is in the USB port. then select ok.



   An “unMount media” pop-up may appear. No action is required.

10. Select the System tab.

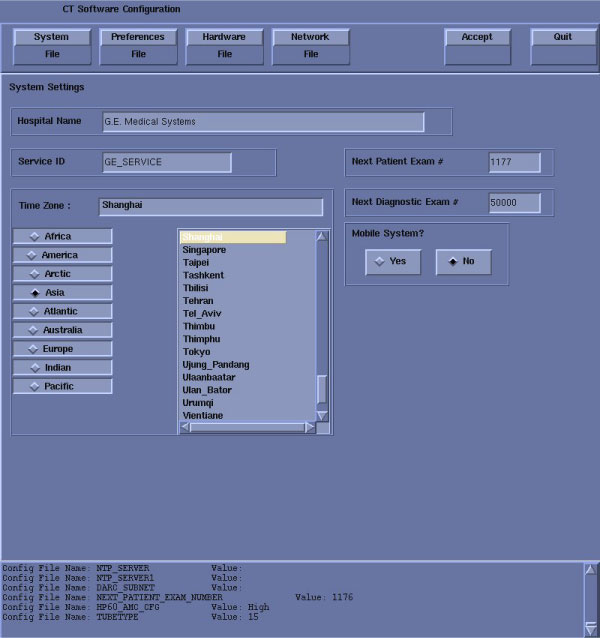

    See example System Settings screen, below.



11. Verify that the Next Patient Exam # on the System Settings screen is the value restored from Save System State. Otherwise, set to 1.

12. Verify that the proper Time Zone is selected

    Select/enter information as required for your system configuration.

13. Select the Preferences tab.

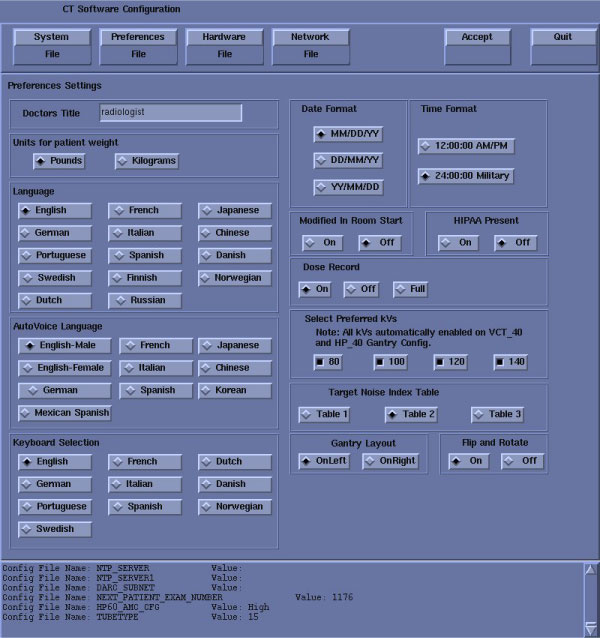

    See the illustration below, for an example Preference Settings screen.



14. Select the units for patient weight.

15. Select Language: (English or other).

    note:

    To select additional 6 languages: Danish, Swedish, Finnish, Norwegian, Dutch or Euro Portuguese, please select English during LFC. After complete all LFC procedures, perform language selection again to preferred language.

16. Select Preferred FastCal KV - select the kV to be calibrated during FastCal. These kVs should include all kVs that the site uses for patient scanning.

17. Select Target Noise Index Table.

    (Default is Table 2.)

18. Verify proper Date Format is selected.

19. Verify proper Time Format is selected.

20. Select AutoVoice Language.

21. Verify Modified in Room Start is set to Off. Sites in Japan must be set to On.

22. Set HIPAA Present to OFF unless the customer requests HIPAA to be ON.

23. Select the site-preferred Dose Record option for the site. Default is ON. The dose information is saved in a DICOM structured report. The DICOM standard defines a new DICOM X-RAY Radiation SR SOP class, which the other systems must support. The Dose SR feature saves an exam’s dose information in this format.

    ON = Saves the dose information in a DICOM Enhanced SR SOP Class.

    OFF = Turns off the option.

    FULL = Saves the dose information in a DICOM X-Ray Radiation Dose SR SOP Class.

24. Set Flip and Rotate to OFF as default. Configures the preference for allowing the Flip and Rotate feature to be turned on in the User Interface on the (Left) SCAN monitor. This preference allows the customer to apply custom orientation changes based on Exam Type and reconstructions methods on the DICOM images that will be transferred to PACS and related systems.

25. Select the Hardware tab. The Main Hardware screen appears.

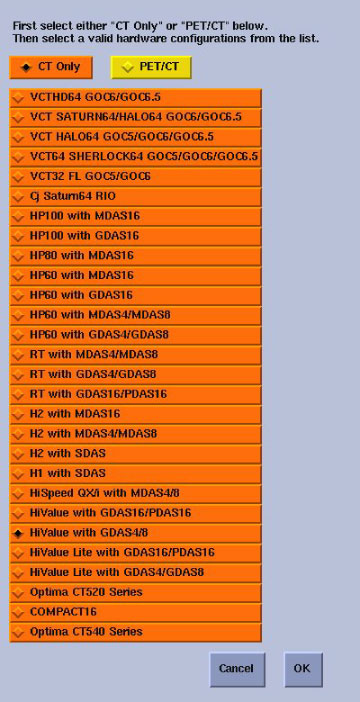

26. Click on the Hardware Settings (orange button) to access the Select hardware configuration screen. Below illustration only an example, please select appropriate system on site, refer to Table 3



    note:

    FAILURE TO INSTALL THE CORRECT APPLICATION SOFTWARE AND SELECT THE CORRECT SYSTEM DAS HARDWARE CONFIGURATION WILL RESULT IN SYSTEM DOWNTIME AND DCB CIRCUIT BOARD REPLACEMENT. (THIS FAILURE WILL OCCUR AFTER THE FLASH DOWNLOAD PROCEDURE FLASHES THE FIRMWARE.)

    Click on the CT ONLY. then Select your System types HW Parameters, and select OK.

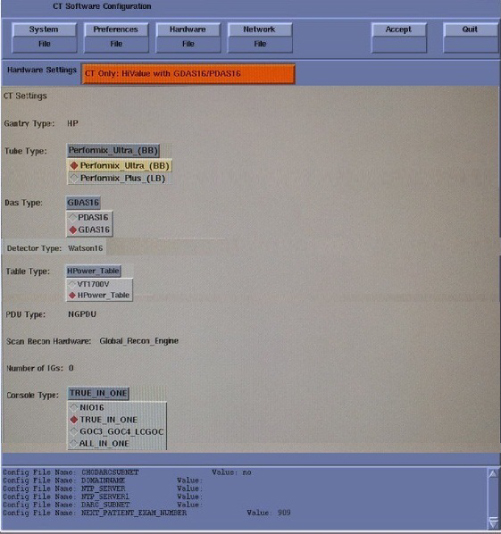

27. On the Hardware Settings screen, select Tube Type, DAS Type, Table Type and Console Type. The screen will appear as below:



28. Select the Network tab.

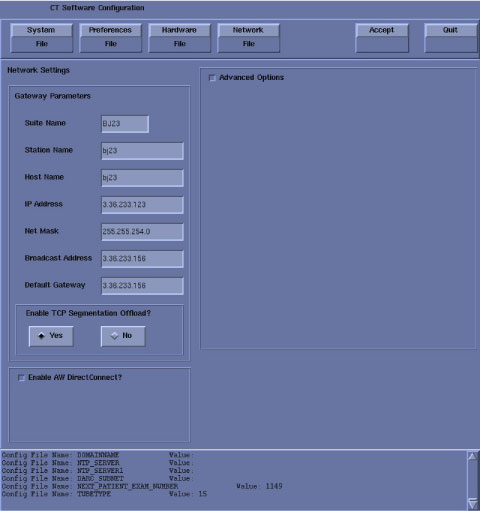

    See example Network Settings screen, below.



29. Configure Network Settings:

    1. Suite Name - The Suite Name must utilize uppercase letters. It must start with a letter, followed by 3 alphanumeric characters. The total must be four characters long. It is suggested that you choose CT01 for the first scanner (CT02....), unless a different Suite Name is required.

    2. Station Name - The Station Name identifies the text that is stored in the DICOM attribute “Station Name” (DICOM TAG 0008,1010) in all CT images created. Some PACS systems may use the Station Name attribute or system tracking for identification of the scanner where the CT images were generated. Typically, the Host Name and Station Name are the same.

       note:

       The Station Name defaults to the Host Name if it is left blank. If entered it:

       • MUST NOT exceed 16 characters

       • MUST only contain the following characters: a through z, A through Z, 0 through 9, - and _

       • MUST have at least one Alpha Character (A-Z or a-z) or Special Character (_ or -)

    3. Host Name

       note:

       The Host Name identifies the hostname and AE Title of the scanner. It:

       • MUST NOT exceed 16 Characters.

       • MUST only contain the following characters: a through z and 0 through 9

       • MUST have at least one Alpha Character (A-Z or a-z) or Special Character (_ or -)

    4. IP Address - Site supplied address.

       The following procedure should be performed if your customer Ethernet hospital backbone begins with 172.16.0.xx, OR if the scanner will connect to a device with an IP address of 172.16.0.xx.

       1. If hospital backbone starts with 172.16.0.xx and this is a first time install, change the DARC subnet by checking the Change DARC subnet box, and fill in the following value: 169.254.0. Continue and complete the software load on the HOST and DARC.

       2. If the hospital backbone starts with 172.16.0.xx, and the DARC subnet was already changed, verify that the Change DARC subnet box is checked and a subnet is already filled. Continue and complete the software load on the HOST and DARC.

       3. If the DARC subnet was already changed and needs to be set to the 172.16.0 subnet, deselect the Change DARC subnet box. Continue and complete the load on HOST and DARC.

    5. IP Address - Site supplied address.

       1. If hospital backbone starts with 10.0.1.xx and this is the first time install, change the IG subnet by checking the Change DARC subnet box, and fill in the following value: 169.254.0. Continue and complete the software load on the Host computer.

       2. If hospital backbone starts with 10.0.1.xx, and the IG subnet was already changed, verify that Change DARC subnet box is checked and a subnet is already filled. Continue and complete the software load on the Host computer.

       3. If the IG subnet was already changed and needs to be set to the 10.0.1 subnet, deselect the Change DARC subnet box. Continue and complete the software load on the Host computer.

    6. Net Mask - Site supplied address.

       note:

       If the hospital backbone IP address is 192.9.220.xx, then the Net Mask must be set to 255.255.255.252.

    7. Broadcast Address - Site supplied address.

    8. Default Gateway - Site supplied address.

       note:

       Make sure the NUM LOCK button on the keyboard is not active. If it is, deselect it to enable the ACCEPT button in the next step. Failure to deactivate the NUM LOCK results in load issues.

    9. If your customer has AW Direct Connect, then select Enable AW Direct Connect?. Complete the LFC, making certain to configure this feature in AW Direct Connect. (Do not configure AW Direct Connect now.)

    10. If there is an Internal Option - Internal Subnet setting displayed and checked, then un-check it. (This option might not appear on your system.)

    11. Verify with customer’s network administrator if they have NIS. If they do, ensure the Advanced Options and Use NIS? boxes are checked. If they don’t, ensure these selections are not checked.

        1. Domain Name: add your name here (get name from customer’s network administrator).

        2. Enter the IP Address of Internal Server: add your IP address here (get IP address from customer’s network administrator).

    12. If your customer wants to synchronize the system time to their NTP server, then select Enable Network Time Protocol, and enter the Primary Server IP address.

    13. At Enable TCP Segmentation Offload?, the default selection is On. In some situation, TCP Segmentation Offload can't work normally. Please select No at this time.

30. Select the ACCEPT button at the right corner of the User Interface.

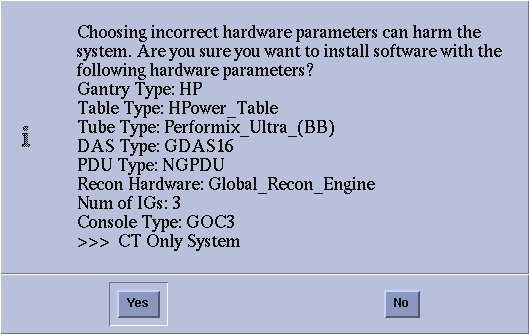

31. An Install INFO pop-up box is displayed.

    See the following illustration, for a typical Install INFO message (the Install INFO message is different for each system configuration, example as below).



    note:

    In Hardware setting screen, if select console type as GOC3_GOC4_LCGOC, above Install INFO message screen shown as GOC3 on Console Type.

32. Select yes, if correct, and wait for system to reboot.

    note:

    If the information is not correct, select the NO button. This returns you to the Hardware screen. Select the Hardware Parameters Selection button and select the correct system configuration from the displayed list. Select the Accept button again, followed by the YES button on the Install INFO pop-up to accept the new hardware configuration.

33. The following pop-up message appears:

    Please make sure the CT Application SW is in the drive - the system will be rebooted.

    No action is required for this pop-up. The system will automatically reboot after approximately 10 seconds if the OK button is not selected.

    note:

    Do not remove the Apps DVD from the Host Computer until instructed to do so.

34. As the system reboots, the following shell Installation screen appears and the application software starts loading.



35. After the system reboot automatically, the pink pop-up box appears, stating CT Software Auto-Start Disabled. In this box, select OK.



    note:

    Follow the next procedure, Do NOT type “startup” at this time

36. Press the button on the DVD-RAM drive to remove the Apps DVD from the Host Computer.

Confirm the Host Computer Software type. The software section of the version output should match example shown.

1. Open a Unix Shell and type the following to see software and hardware Config information:

   {ctuser@hostname} cd  /usr/g/bin

   {ctuser@hostname} swhwinfo

2. Confirm that the swhwinfo results match the software revision shown on the Applications Disk.

   • If the revisions match, continue with this procedure.

   • If the revisions do NOT match, reload the software (Host Computer LFC).

3. Type: cat  /GEHC*

   Release: GEHC/CTT Linux 6.3.11

4. Confirm that the cat result matches the Operating System version shown on the OS disk.

5. Close the Unix Shell.

1. Log into the DARC and determine hardware type (Westville = WV or Jarrell = JR):

   {ctuser@ hostname }   ipmitool -H darc -P '' fru | grep -i "Board Product" (P means upper case)

   (Example) Board Product : SE7520JR23

   Board Product : Intel(R) Management Module - Professional Edition

2. To determine DARC Node type, view the first line at the top of the response. (See examples below.)

   • Westville DARC Nodes will contain a WV string (example, SWV25)

   • Jarrell DARC Nodes will contain a JR string (example, SE7520JR23)

     Westville DARC2 Node (Front)



     Jarrell DARC2 Node (Front)



This section describes the steps necessary to change the DARC Node BIOS to enable the OS load onto DARC Node from the Host Computer.

1. Open a Unix Shell and type the following:

   1. {ctuser@hostname} su  -

   2. Password: #bigguy

   3. [root@hostname] service  cliservice  start

   4. [root@hostname} telnet  localhost  623

   5. At Server Prompt type: darc

   6. username Enter

   7. password Enter

      Login successful

   8. dpccli> reset

      ok

      dpccli> console

      note:

      A slight delay here is normal. Be patient.

2. Interrupt the DARC boot process to enter the BIOS Setup mode. When the message “Press <F2> to enter setup” appears, press F2.

   note:

   F2 may have to be pressed many times before BIOS setting screen can be seen. There will be a short delay before the DARC BIOS setup screen is displayed.



3. Select Boot Menu, using arrow keys.

4. Select Boot Device Priority Menu, using arrow keys, then press Enter.



5. Select 1st Boot Device, using arrow keys, then press Enter.

6. A small window will appear with the options available. Using the down-arrow key, scroll down to highlight IBA 1.1.08 Slot 0338 (for a Westville DARC) or IBA GE Slot 0320v (for a Jarrell DARC), then press Enter.



7. Using the down-arrow key, scroll down to highlight the 2nd Boot Device entry. Press Enter.

8. A small window will appear with the options available. Using the down-arrow key, scroll down to highlight the ATAPI CD-ROM entry (for a Westville DARC) or PS -slimtype COMBO entry (for a Jarrell DARC). Press Enter.

9. Using the down-arrow key, scroll down to highlight the 3rd Boot Device entry. Press Enter.

10. A small window will appear with the options available. Using the down-arrow key, scroll down to highlight the Hard Drive entry (for a Westville DARC) or PM-ST94813A entry (for a Jarrell DARC). Press Enter.

11. (For Westville)

    Verify the Boot device Priority is set to:

    IBA 1.1.08 Slot 0338

    ATAPI CD-ROM

    Hard Drive

    IBA 1.1.08 Slot 0339

    Removable Devices

    note:

    The removable devices might not be present. This is OK.

12. (For Jarrell)

    Verify the Boot device Priority is set to:

    IBA GE slot 0320v

    PS -Optiarc CDROMDVD

    PM -ST940815A

    IBA GE slot 0321v

    EFI Boot Manager

    note:

    Above shown information only the example, the name should be related to the actual hardware using in DARC

13. Press Esc to exit back to Boot menu.

14. Save DARC BIOS settings:

    1. From Boot menu, arrow to (move to) Exit menu.

    2. Highlight Save Changes and Exit, and press Enter



    3. Highlight [OK], and press Enter, to “Save configuration changes and exit setup.”

       Wait one minute. If the pop up window still appeared, you can close the terminal window directly.



    note: (For Westville)

    After saving the DARC BIOS, the DARC BIOS Setup Utility will disappear (within one minute) and the DARC will begin to Reboot. If the BIOS SETUP UTILITY window does not disappear within a minute, perform the steps within this section again.

    note: (For Jarrell)

    After saving the DARC BIOS, the DARC BIOS Setup Utility will NOT disappear and the DARC will begin to Reboot. Open another shell:

    • {ctuser@hostname} su  -

    • Password: #bigguy

    • [root@hostname] rsh  darc

    • [root@localhost root]

      (If the prompt is displayed exactly as shown, then the login was successful and the DARC was up.)

    • [root@localhost root] exit

15. Close the Terminal Window.

OS will be loaded onto the DARC Node from the Host Computer as long as the DARC BIOS Boot Order is configured for Enable Load.

For details on Serial Over LAN CD Usage, refer to VDARC/DARC Node OS Load Troubleshooting.

1. Open a Unix Shell and type the following:

   1. {ctuser@hostname} su  -

   2. Password: #bigguy

   3. [root@hostname] cd  /usr/g/scripts

   4. [root@hostname]   ./load_darc_subsystem

   An Attention window appears. See the illustration below.

   note:

   DO NOT follow the instructions in the Attention window. Insert the OS in the Host, Apps DVD does NOT work.



2. Select OK.

3. The Unix Shell will display output during the DARC load (approximately 33 minutes). Example output is as follows:

   [root@hostname scripts]# ./load_darc_subsystem

   [load_darc_subsystem] [Start time] Loading the darc subsystem(OS + Apps) takes 30 minutes

   [load_darc_subsystem] [Start time] Loading the darc OS

   [load_darc_subsystem] [Time] Loading the darc OS is complete

   [load_darc_subsystem] [Time] Loading the darc apps

   [load_darc_subsystem] [End time] Loading the darc is complete

   [load_darc_subsystem] [End time] Load started: (Date)   (Start time)

   [load_darc_subsystem] [End time] Load ended: (Date)   (End time)

   [load_darc_subsystem] [End time] Finished loading darc subsystem.

   [root@ hostname]#

4. A sh window displays the OS load messages and Apps load messages.

   note:

   The DARC OS Load will stop prematurely ONLY if an error is encountered (refer to VDARC/DARC Node OS Load Troubleshooting). An Error Dialog Box will appear with a brief description of the error. Select OK after reading the instructions displayed on the Monitor. Refer to DARC OS Load Pop-Up Boxes for additional information on these error pop-up windows. Also, if any problems arise, verify the correct software disk is installed and verify BIOS Setup Utility Boot Order is correct.

   note:

   A %done status is displayed during the DARC OS load. This is only a timed countdown sequence and does not provide status of the actual load process.

5. When the DARC load has completed, the sh window will close. DVD drive on host computer automatically ejected. Remove the OS DVD from the DVD drive.

Verify the OS and Application Software has loaded on the DARC.

1. Open a Unix Shell and type the following:

   1. {ctuser@hostname} ping darc

   2. [Ctrl C] to stop ping

   3. {ctuser@hostname} rsh darc

   4. [ctuser@darc]

2. If ping is successful but the prompt [ctuser@darc] does not appear, then the OS is loaded but the DARC Apps load process was not successful.

3. Verify the OS and Application Software has loaded correctly.

   1. [ctuser@darc] cd  /usr/g/bin

   2. [ctuser@darc bin] ./swhwinfo

   3. [ctuser@darc bin] cat  /GEHC*

4. Confirm that the swhwinfo results match the software revision shown on the Applications disk.

   • If the revisions match, continue with this procedure.

   • If the revisions do NOT match, reload the software (Host Computer LFC).

5. Verify that cat results match the Operating System version and Software Build Date.

   Release: GEHC/CTT Linux 6.3.11

6. Close the Unix Shell.

(For Jarrell DARC Node) Continue with Set Time and Date

(For Westville DARC Node) The Westville DARC BIOS must be returned to the Restore Settings (operational mode) to avoid a known Intel PXE boot problem, which can occur ramdomly and prevent the DARC Node from booting.

This section describes the steps necessary to restore the BIOS on the Westville DARC Node to its original settings for normal operation. This is a required section for all Westville DARC Nodes.

1. Open a Unix Shell and type the following:

   1. {ctuser@hostname} su  -

   2. Password: #bigguy

   3. [root@hostname] service  cliservice  start

   4. [root@hostname] telnet  localhost  623

   5. server: darc

   6. username Enter

   7. password Enter

      Login successful

   8. dpccli>   reset

      ok

      dpccli>   console

      GEHC/CTT Linux 6.3.11

      Kernel 2.6.15-2.5 smp...

      See you on the darc side of the moon

      darc login:

   note:

   A slight delay here is normal. Be patient.

   note:

   If the "reset” and “console" commands fail and the "Active SOL failed" message is displayed, connect to the DARC via SOL, and then type the command "console". With the SOL session connected to the DARC Console, press the "reset" switch (not the power switch) on the front of the DARC and proceed with the instructions below.

2. Interrupt the DARC boot process to enter the BIOS Setup mode. When the message “Press <F2> to enter setup” appears, press F2.

   note:

   F2 may have to be pressed many times before BIOS setting screen can be seen.

   There will be a short delay before the DARC BIOS setup screen is displayed.



3. Select Boot Menu, using arrow keys.

4. Select Boot Device Priority Menu, using arrow keys, then press Enter



5. Select 1st Boot Device, using arrow keys, and press Enter.



6. Continue setting Boot Device Priority.







7. Verify the Boot device Priority is set to:

        ATAPI CD-ROM

        Hard Drive

        IBA 1.1.08 Slot 0339

        IBA 1.1.08 Slot 0338



8. Press Esc to exit back to Boot menu.

9. Save BIOS settings:

   1. From Boot menu, arrow to (move to) Exit menu.

   2. Highlight Save Changes and Exit, and press Enter.



   3. Highlight OK, and press Enter, to “Save configuration changes and exit setup.”

      Wait one minute.



   note:

   After saving the DARC BIOS, the DARC BIOS Setup Utility will disappear (within one minute) and the DARC will begin to Reboot. If the BIOS SETUP UTILITY window does not disappear within a minute, perform the steps within this section again.

   • {ctuser@hostname} su  -

   • Password: #bigguy

   • [root@hostname] rsh  darc

   • [root@localhost root]

     (If the prompt is displayed exactly as shown, then the login was successful and the DARC was up.)

   • [root@localhost root] exit

10. When the darc login: prompt appears, close the Terminal Window.

1. Open a Unix Shell.

2. If Application software is up, perform{ctuser@hostname}cleanMon.

3. In the Unix Shell, become root:

   {ctuser@ hostname }   su  -

   Password: #bigguy

4. Check which Service Pack is installed, type {root@hostname}#swhwinfo.

5. Insert the Service Pack CD into DVD drive in the host.

   note:

   Service Pack CD will include any new service pack and all previous released service packs that are still applicable. Load all of the Service Packs included in the latest Service Pack CD in sequence.

6. Perform the following steps to install the Service Pack CD:

   1. Type the following install script:

      [root@ hostname ]# patch_install -c

      Any Service Packs on the Service Pack CD will be listed. Before installation of each pack, the window will wait for user's confirmation as follows:

      I will install update Patch Name , is this ok ? [y/n]

   2. Input y to install this patch or n to cancel installation of this patch.

   3. After installing the Service Pack CD, type patch_status (Class M service key inserted is required to use this command) in the Shell window to determine which Service Pack patches were installed (if any). The following is an alternate command to verify the Service Pack load:

      [root@ hostname ]# showprods | grep  -i ServicePack

   4. Type:[root@hostname]#reboot

      note:

      A reboot is always required after a pack is installed. Additional processes may be required for installing certain Service Pack media. Refer to the instructions sent with the Service Pack.

For general information on Product Network Filters, please see Product Network Filter Theory.

If your customer has special network requirements, then proceed toConfigure Product Network Filters now. When PNF configuration is complete, return to this procedure.

If the site requires the configuration of AW Direct Connect, then configure it now (see AW Direct Connect). When configuration is complete, return to this procedure.

notice NEVER Use CTRL - ALT - DELETE to reboot the host computer. This technique will NOT reboot all console subsystems, and as such is an unacceptable practice.

To restart the system:

1. Replace the Hospital Backbone Ethernet cable to the Console Bulkhead Assembly (located at the rear of the Operator Console).

2. Shutdown Application, then Open a Unix Shell:

   1. {ctuser@hostname}su -

   2. Password: #bigguy

   3. Type reconfig

   4. Select config and confirm the all configuration is correct

   5. Click Accept

   6. Select Yes to Reboot system, Startup Application.

When the system comes up the following screen will be displayed if HIPAA Present was set to On during the LOAD process. Verify the admin screen below has the following 'Select user':

• Select user: root

• Password: #bigguy
