Discovery MR750 3.0T System Service Methods
5690009-2EN Revision 4
Object ID: 00000018WIA301F0550GYZ
Topic ID: id_2024464 Version: 1.12
Date: Jul 22, 2021 10:46:47 PM

Importing third-party certificates - public keys

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	20 to 30 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
USB Flash Drive	1	-	-

About this task

The keys that are used in the certificate management process are private keys and public keys. A public key is provided to clients who send a request to the host. A private key is sent back to the host from the client, which is encrypted using the public key.

Third-party certificates are provided by a Certificate Authority (CA) to the host after a request by the IT professional. When the client attempts to connect to the host, the host will provide the third-party certificate to the client upon the request for connection. This is in conjunction with/as the certificate.

Procedure

Insert the USB containing the third-party certificates into the Global Operator Console (GOC).
On MR Service Desktop, click Service Browser.

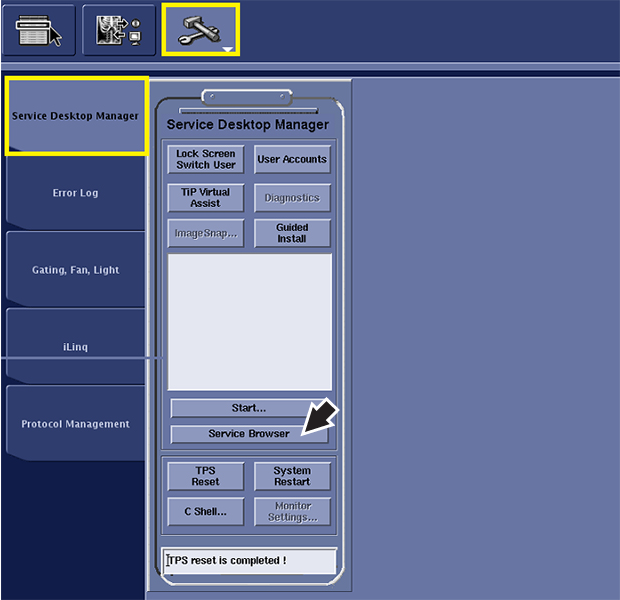

Figure 1. Service Browser button

Result
The Certificate Management browser displays.
Click the Utilities tab.
In the left toolbar, select Security Tools > Certificate Management.

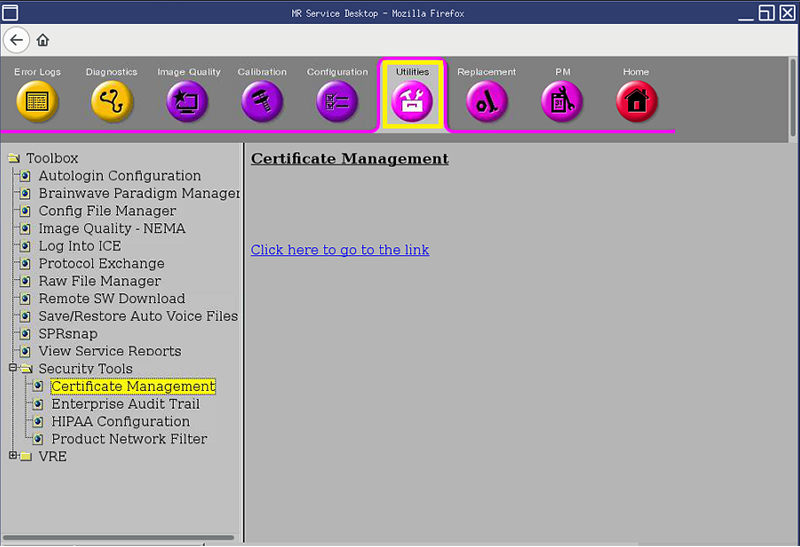

Figure 2. Certificate Management browser
Click Click here to go to the link.
Result
The Certificate Management window displays.

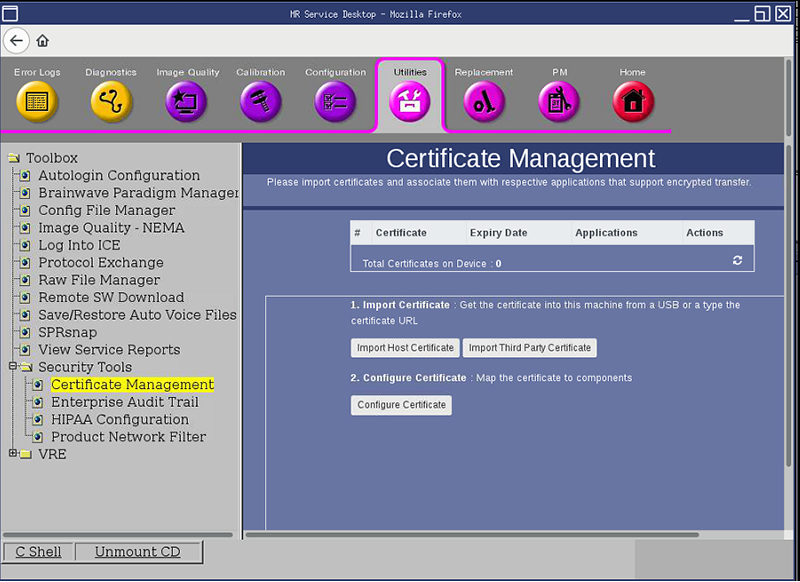

Figure 3. Certificate Management window
Click Import Third Party Certificate.
Result
The window refreshes with the applicable fields to populate.

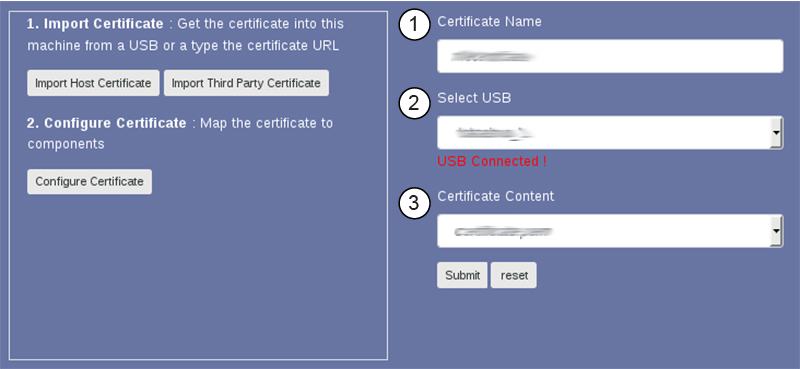

Figure 4. Submit third-party information
1 Certificate Name
2 Select USB
3 Certificate Content
Select the correct storage device from the Select USB menu.
Enter the file name of the certificate as it will be stored on the client's server into the Certificate Name field.
Select the certificate type from the Certificate Content menu.
Click Submit.
When the dialog confirmation window appears, click Accept.
Result
The message Certificate Saved Successfully displays below the Submit button that confirms the certificate was successfully imported.

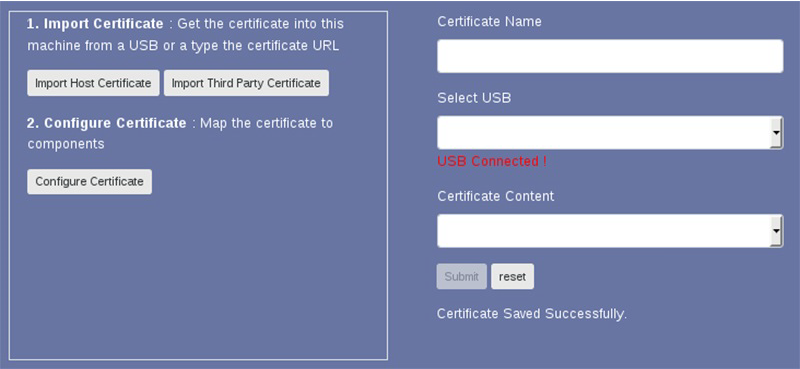

Figure 5. Import confirmation window
