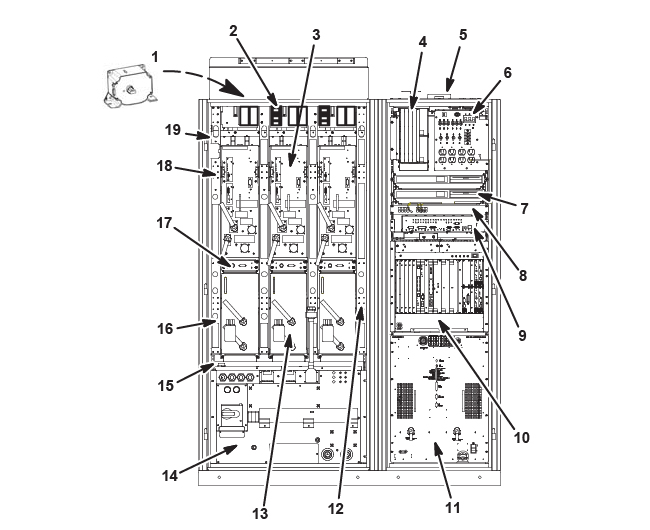

PGR Cabinet

Table 1. PGR Cabinet
Item	Part Number	Description
1	5150275	DC Current Transducer
2	5215252	Power Distribution Block
3	5184566-2	XGA Amplifier FRU (XGD) (3)
	5330684-2	XGA2 Amplifier FRU (XG2) (3)
	5330684-102	XGA2 Amplifier FRU (XG2) (3) (RoHS)
		5764096	SFP Fiber Optic Transceiver Module
		5764096-2	SFP Fiber Optic Transceiver Module
4	-	XGD Cronus Module (see Cronus Module)
5	5196748	Hoist Bracket
6	5260695	PGR Power Distribution Module (5148810 series) (PGR cabinet only)
	5371251	Power strip (5373011 series) (PGR cabinet only)
	5534330	Power strip (5373011 series) (PGR cabinet only) (RoHS)
7	-	Image Compute Node (see ICN)
8	5139592	16-Port Gigabit Ethernet Switch FRU
9	5161071	XGD Auxiliary Assembly
	5329421	XG2 PEM Assembly
	5329421-100	XG2 PEM Assembly (RoHS) Note: Must be used with compatible SW loads DV25.1 R02 or earlier.
		46-312346P4	Nut M6 x 1
	5329421-102	XG2 PEM Assembly (RoHS) Note: Compatible with SW loads DV25.1 R03 and later.
10	-	CAM Module (see CAM Module)
11	5135844-3	3T XRFD RF Amp FRU
	5135844-4	3T XRFD Power Supply FRU
	5342542-2	3T Dual Drive XRFD Amp FRU
12	5266756	Hoist Beam
13	5148804-2	XPS Power Supply FRU (XGD) (3)
	5351443-2	XPS2 Power Supply FRU (XG2) (3)
	5351443-102	XPS2 Power Supply FRU (XG2) (3) (RoHS)
		5764096	SFP F/O Transceiver Module
		5764096-2	SFP F/O Transceiver Module
14	5269769	PGR Base Cabinet with PDU FRU (XGD) (see XGD PDU2 (XG2 PDU) FRUs (5343114))
15	5194812	XPS Mod Retaining Bracket
16	5157426	Slide Rails
17	5183212	Fan Tray, Removable
	5183573	XGD Fan Box Assembly
	5498980	XGD Fan Box Assembly (RoHS)
18	5157422	XGA Slide Rails
19	46-208718P5	1/2~ ID Loop

Figure 2. PGR Cabinet (KASC/ICE/USB Hub Components)

Table 2. PGR Cabinet (KASC/ICE/USB Hub Components)
Item	Part Number	Description
1	6200100-4	ICE Assembly (MR750w, Architect T)
	5485930	ICE Fan
	5332741	ICE Slide Rail
2	5729972	USB Hub
3	-	See KASC Components.
4	5736891	MRU Converter
	5864292	ICE Bootrom Flash (DVD with ICE firmware)

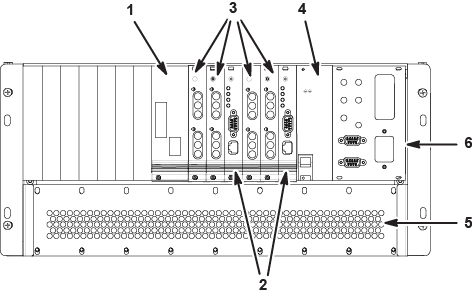

Table 3. KASC Components
Item	Part Number	Description
1	5250156-51	NB Amp Interface Board (slot 8)
2	6250266	QUPM Processor Board (slots 12/15)
	6250266-10	QUPM Processor Board
3	6250264	QUPM RF Detector Board (slots 10/11/13/14)
4	5496754	KASC Power Supply FRU (slot 16)
5	5554633	KASC Fan Assembly FRU
6	5490171	KASC chassis with power supply

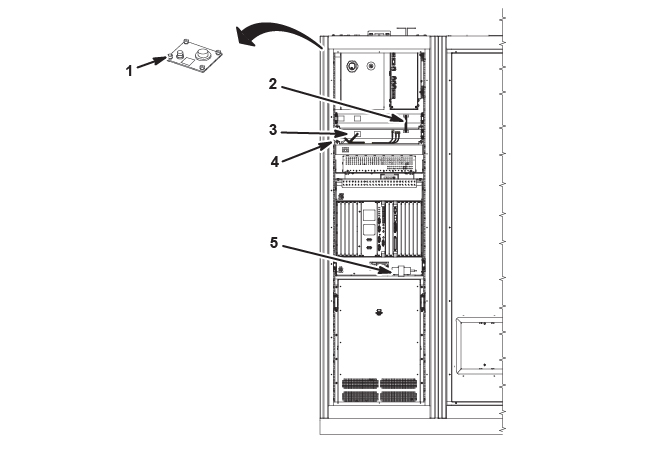

Figure 4. PGR Cabinet (Rear, System with CAM Shown)

Table 4. PGR Cabinet (Rear)
Item	Part Number	Description
1	5168052	Female-to-Female Bulkhead Connector, 7-16
2	5263113	ICN 1 to ICN 2 Connect Cable (system with CAM)
3	5257687-2	ICN 2 Power Cable (system with CAM)
4	5764096	SFP F/O Transceiver Module
	5764096-2	SFP F/O Transceiver Module
5	2379186	Term Server Power Supply with Cord (system with CAM)
	5725719	ICN PCIe Transition Cable X4-X8 for Dolphin 1 ICN (system with ICE)
	5887762	PCIe Cable for Dolphin 2 ICN

ICN

Table 5. ICN
ICN Type	ICN Part Number	Description	Supported Software		Low Level FRUs
			Min SW	Max SW	Power Supply	HDD	SDD	SD Card
Dell R640 (Gen7-DL) Performance	5941000-9	Dell R640 (Gen7-DL) Performance ICN with Dolphin 1 Interface Card and GPU Card	DV29.1	N/A	5931100-21	N/A	5941100-23 (Gen7, Gen7-DL) ICN Solid State Disk Drive	N/A
Dell R640 (Gen7)	5941000-3	Dell R640 (Gen7) Performance with Dolphin 1 Card	DV29.1	N/A	5931100-21	N/A	5941100-23 (Gen7, Gen7-DL) ICN Solid State Disk Drive	N/A
Dell R640 (Gen7-DL) Performance	5941000-10	Dell R640 (Gen7-DL) Performance ICN with Dolphin 2 Interface Card and GPU Card	DV29.1_R02 with SP01	N/A	5931100-21	N/A	5941100-23	N/A
Dell R630 (Gen6)	5931000-3	Gen6 Performance ICN with Dolphin 1 Interface Card	DV26.0 (ICE)	N/A	5931100-21 750W PS	N/A	5931100-23 Gen6 ICN SSD Drive	5931100-22 ICN Vflash Diagnostics Card, 8GB SD Card
	5931000-5	Advanced ICN with Dolphin 1 Interface Card
Dell R630 (Gen6)	5931000-2	Gen6 DV Value with VRF	DV25.1	DV26.0	5931100-20	N/A	5931100-23	5931100-22 ICN Vflash Diagnostics Card, 8GB SD Card
	5931000-4	Gen6 DV Performance with VRF			5931100-21 750W PS
	5931000-6	Gen6 DV Advanced with VRF
Dell R620 (Gen5)	5921000	DV 16-Channel ICN with VRF	DV25.0	DV26.0	5921000-8 495W PS	5921000-4 300GB SAS HDD	Not a FRU	5921000-10 VFLASH CARD for ICN
	5921000-2	DV 32-Channel ICN with VRF			5921000-9 750W PS
	5021000-3	DV Gen5 32 Ch+ ICN			5921000-9 750W PS (2 PS on ICN)
SUN 4170M2 (Gen4)	5911000	DV 16-Channel non-GEM	DV24.0	DV26.0	Not a FRU	5337894-5 4170 146GB SAS HDD	N/A	N/A
	5911000-2	DV 32-Channel 32 GB non-GEM
	5911000-3	DV 32-Channel 72 GB GEM
SUN 4170 (Gen3)	5337894	DV 16-Channel non-GEM	DV24.0	DV26.0	Not a FRU	5337894-5 4170 146GB SAS HDD	N/A	N/A
	5337894-2	DV 32-Channel non-GEM
SUN 4100 (Gen2)	5127452-2	ICN with VRF	DV24.0	DV24.0 (32ch) DV25.0 (16ch)	Not a FRU	5127452-2	N/A	N/A
	5127452-6	ICN with VRF and without Infiniband
ICN PCIe Transition Cable X4-X8 for Dolphin 1 ICN (system with ICE)	5725719	-	-	-	-	-	-	-
PCIe Cable for Dolphin 2 ICN	5887762	-	-	-	-	-	-	-

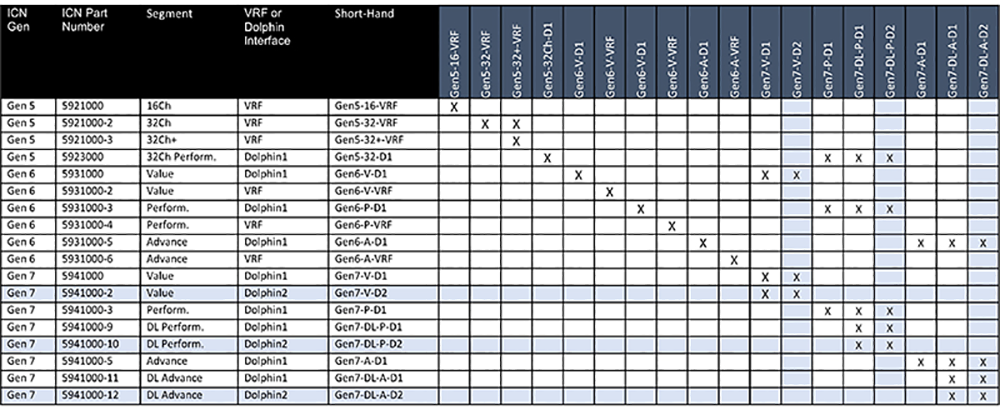

Note: This table represents the possible replacement ICNs for each model. Find the installed model on the left and see what models can be used to replace it. Make sure you have the proper software level to support all possible options as well as PCIe cable if changing dolphin board types.

PGR Cabinet Internal Cables

Table 6. 3.0T Internal Transmit Cable FRU
Item	Part Number	Description
1	5167234-2	3.0T Body TX Cable, LMR600, RF Amp J4 to I/O Panel J19
2	5192690-2	3.0T Head TX Cable, LMR600, RF Amp J3 to I/O Panel J18

Cabinets with XGD Gradient Amplifiers

Table 7. 5304065 (5148810 series) and 5388782 (5373011 series), XGD Internal Signal Cable FRU Kit (contains the items in this table)
5178931	5165870	5165970	5176566	5182238	5182238-2
5182238-3	5182238-4	5184303	5257682	5257683	5257683-2
5257684	5257685	5257685-2	5257685-3	5257685-4	5257685-5
5257685-6	5257685-10	5167344	5167005	5257680	5257681
5166354	5166222-13	5166222-18	5257685-11	5257685-12	5257685-13
5176990	5176262	5176262-2	5176262-3	5174739 (5148810 series only)	5376191 (5373011 series only)

Table 8. 5304386, XGD Internal Fiber Optical Cable FRU Kit (contains the items in this table)
5182888	5182317	5182317-2	5182317-3	5182317-4	5182317-5
5182317-6	5257686

Table 9. 5304635, XGD Internal Power Cable FRU Kit (contains the items in this table)
5173399	5164904	5165800	5172391	5174242	517242-2
5183977

Cabinets with XG2 Gradient Amplifiers

Table 10. 5421467, XG2 Internal Signal Cable FRU Kit (contains the items in this table)
5165870	5165970	5166222-13	5166222-18	5166354	5176262
5176262-2	5176262-3	5176566	5176990	5257683	5257683-2
5257685	5257685-2	5257685-3	5257685-4	5257685-5	5257685-6
5257685-11	5257685-12	5257685-13	5372109	5372109-2	5372109-3
5393662	5394284	5395495	5395496	5395497	5395497-2
5395499

Table 11. 5421464, XG2 Internal Fiber Optic Cable FRU Kit (contains the items in this table)
5372730	5372730-2	5372730-3

Table 12. 5421465, XG2 Internal Signal Cable FRU Kit (contains the items in this table)
5173399	5164904	5165800	5172391	5394269	5394279

Table 13. 5399409-2, 1.5T XRFD RF Amplifier FRU Kit (contains the items in this table)
5166222-19	5166222-20	5166222-21	516222-22	5165744	5399190
5176566-2

Table 14. 5402844, 3.0 Dual Drive RF Amplifier Cable FRU Kit (contains the items in this table)
5166222	5166222-2	5166222-3	5166222-4	5166222-5	5166222-6
5166222-7	5166222-8	5166222-23	5166222-24	5166222-25	5166222-26
5165744	5399190	5176566-2	5419640-2	5399190

PGR Cable FRUs (Systems with ICE)

Table 15. 5730631, PGR ICE-Host Communication Cable FRU Kit (contains the items in this table)
5730975	5725077-2	5725077	5167907-2	5257685-2	5257685-12

Table 16. 5730632, PGR ICE-HEC Communication Cable FRU Kit (contains the items in this table)
5728563	5167907-4	5257685-13	5729973	5168845-2

Table 17. 5741001-2, RF Amp Cable FRU Kit (contains the items in this table)
5728182-10	5728182-8	5728182-9	5728182	5728182-3	5728182-5
5728182-11	5728182-4	5728182-2	5728182-7	5728182-6	5728182-12
5176566-2	5399190	5419640-2	5722892

Table 18. 5741001-4, PGR XG2 ICE Signal Cable FRU Kit (contains the items in this table)
5722893-8	5725855-2	5724455	5722893-4	5725077-2	5725855
5728563	5725855-3	5722893-5	5257685-6	5257685-4	5257685-5
5722893-6	5722893-7	5395495	5372109	5372109-3	5394284
5165870	5176262	5176262-2	5176262-3	5372109-2	5165970
5722895	5722896	5395499	5176990

Table 19. 5741001-5, PGR XG2 ICE Internal Power Cable FRU Kit (contains the items in this table)
5722622	5724457	5172391	5394269	5173399	5164904
5165800	5394279

Table 20. 5741001-6, PGR ICE Fiber Optic Cable FRU Kit (contains the items in this table)
5722894-2	5722894-3	5722894

Table 21. 5730806, DVMR MNS Cable ICE Config FRU Kit (contains the items in this table)
5728182-19	5728182-17	5728182-20	5728182-18

Other Cabinet FRUs

Table 22. Other Cabinet FRUs
Item	Part Number	Description
1	5266125	Fluid Leak Sensor Kit (XGD only)
2	5421463	Fluid Leak Sensor Kit (XG2 only)
3	46-306565P3	Aluminum Mesh Air filter, 16 x 10
4	2109873-25	M16 X 16mm L Pan Head Screw
5	5263794	Lifting Bracket — XGA and XPS FRU
6	5461213	Cabinet Key

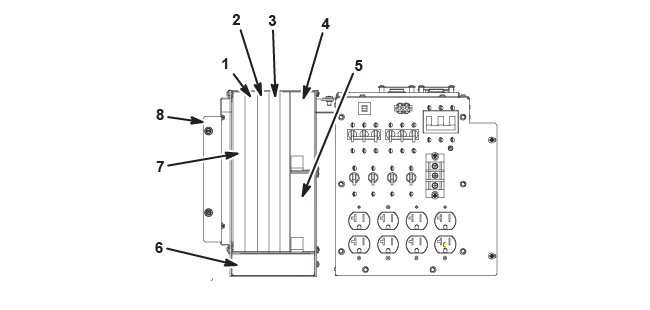

XGD PDU2 (XG2 PDU) FRUs (5343114)

Table 23. XGD PDU2 (XG2 PDU) FRUs
Item	Part Number	Description
1	2301200-3	TVSS Module
2	5343114-4	Contactor, 65A, 3-Pole
3	5343114-2	XGD PDU Control Board Assembly
4	5343114-5	XGD PDU2 Control PC Board Asm with PEM or AUX Config Switch
5	5140621-11	3-Pole Power Contactor for E-stop
6	5745311	Delta 48V 2500W Power Supply
7	5343114-10	Delta 48V Power Supply Bracket for the Gradient Subsystem (XGD) Power Distribution Unit (PDU), Blind-Mate
8	5140621-5	Fan with Tach Output
9	5604719	XGD PDU - CB1 150A Main Input Breaker Kit - ABB
10	5789504	XGD PDU - CB1 150A Main Input Breaker Kit - Eaton
11	5789505	XGD PDU - 90A Gradient Breaker Kit (CB2)
12	5789506	XGD PDU - Three-Phase Breaker FRU Kit (CB3, CB4, CB7, CB8 FRU Kit)
13	5789507	XGD PDU - Single- and Two-Phase Breaker Kit (CB5, CB6, CB9-CB11)
14	5789508	XGD PDU - Electrical Connectors Collector FRU (REC1 – REC 3, TB1 – TB3, TB6)
15	5789509	XGD PDU - Panel Buttons, Indicators and Test Points Collector FRU (IND1-3, SW1, SW2, TP1 – TP7)
16	5823568	Shunt Trip Main CB1 Accessory - EATON p/n SNT120CPK
17	5823569	CB Handle Main CB1 Accessory - EATON p/n JHMCCB
18	5823570	Shunt Trip Main CB1 Accessory - ABB p/n KXTASORCFPD
19	5823571	CB Handle Main CB1 Accessory - ABB p/n KXTCRHDSTFP

XGD PDU FRUs (5140621)

Table 24. XGD PDU FRUs
Item	Part number	Description
1	5343114-5	A1; XGD PDU2 Control PC Board Asm with PEM or AUX Config Switch
2	2301200-3	Q1-Q3; TVSS Module FRU for ACGD PDU
3	5140621-11	CON1-CON2; 3-Pole Power Contactor for E-stop (ABB PN A50-30-11-84)
4	5745311	PS1-PS2; Delta 48V 2500W Power Supply
5	5343114-10	Delta 48V Power Supply Bracket for the Gradient Subsystem (XGD) Power Distribution Unit (PDU), Blind-Mate
6	5140621-5	FAN1-FAN2; Fan with Tach Output (Sanyo PN 109E1348G101)
7	5604719	CB1; ABB Main Input Circuit Breaker
8	5789505	CB2; Gradient 420V Power Circuit Breaker (Eaton)
9	5789506	CB7, CB8; Supercon Shim Power Supply and Magnet Power Supply Circuit Breakers Note: The part kit will contain all CB3, CB4, CB7, and CB8 breakers; however, only CB7 and CB8 are compatible for XGD PDU. FRUs XGD CB3 and CB4 are not compatible with XGD PDU (5140621). Do not use CB3 or CB4 for replacement in XGD PDU.
10	5789507	CB5, CB9; Brainwave and Gradient 48V Circuit Breakers Note: The part kit will contain all CB5, CB6, CB9, CB10, and CB11 breakers; however, only CB5 and CB9 are compatible for XGD PDU. FRUs XGD CB6, CB10, and CB11 are not compatible with XGD PDU (5140621). Do not use CB6, CB10, or CB11 for replacement in XGD PDU.
11	5789508	REC1-2, TB2; Receptacles and Terminal Blocks Note: The part kit will contain all REC1-REC3, TB1-TB3, and TB6; however, only REC1-2 and TB2 are compatible for XGD PDU. FRUs XGD REC3, TB1, TB3, and TB6 are not compatible with XGD PDU (5140621). Do not use REC3, TB1, TB3, or TB6 for replacement in XGD PDU.
12	5789509	SW2, TP1-7; Switches and Test Points Note: The part kit will contain all IND1-IND3, SW1, SW2, and TP1-7; however, only SW2 and TP1-7 are compatible for XGD PDU. FRUs IND1-3 and SW1 are not compatible with XGD PDU (5140621). Do not use IND1-3 or SW1 for replacement in XGD PDU. FRUs for XGD IND1-3 or SW1 do not exist.

Cronus Module

Table 25. Cronus Module
Item	Part Number	Description
1	5250122-2*	XPS Control Board
2	5250122*	XGA Control Board
3	5250128*	XGD Gradient Master Control Board
4	5159513	XGD Cronus cPCI Power Supply 8HP 3U
5	5159512	XGD Cronus Filler Panel 8HP 3U
6	5159510	XGD Cronus Fan Assembly
7	5159511	XGD Cronus Filler Panel 4HP 6U
8	2384411	XGD Cronus Chassis
*Control boards include FRU 5764096 SFP F/O transceiver module.

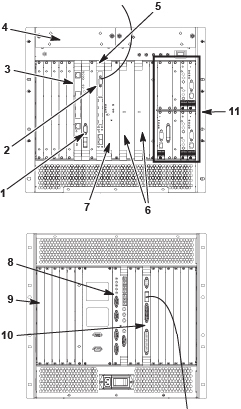

CAM Module

Table 26. CAM Module
Item	Part Number	Description
1	6250034	IXG Board Slot 7
	5250066	IRF3 Board Slot 7
	5250066-51	IRF3 Board Slot 7 (RoHS)
		5764096	SFP F/O Transceiver Module
		5764096-2	SFP F/O Transceiver Module
2	5117168	CAN Terminator
3	2294300-18	AGP2/APS2 Board
	2294300-23	AGP2/APS Board Slot 6
	2294300-24	AGP2/APS2 Board Slot 6
4	5181495-2	CAM DC Blower
	5181495-52	CAM DC Blower (RoHS)
5	2294300-22	MGD Chassis SCP3 with CAN Board
6	5181495-3	Main Power Supply (slot 14/15), Secondary Power Supply (slot 12/13)
7	6250006	PSE Board (slot 10)
	2280951	SRF/TRF Board (slot 10/11)
8	2280952-3	STIF Board (slot 10/11)
9	5181495-4	CAM Metal Cage with Midplane
10	2274196	Interface and Remote RF Transition (slot 7)
	6250034	Interface and Remote RF Transition (slot 7) (RoHS)
11	-	See UPM Modules.
12	5250066-2	ERF Board (MNS option)
	5250066-52	ERF Board (MNS option) (RoHS)
13	6250008	PSE I/O Board (research option)

UPM Modules

Table 27. UPM Modules
Item	Part Number	Description
1	5250156	NB Dual Drive AIF Board (slot 17L/18L)
	5250156-51	NB Dual Drive AIF Board (slot 17L/18L) (RoHS)
2	2329754	50 ohm SMB Terminator (slot 19 U/L, slot 20 U/L)
	2329754-51	50 ohm SMB Terminator (slot 19 U/L, slot 20 U/L) (RoHS)
3	2359518-2*	UPM Processor Board, 750w (slot 21 U/L)
	6250266*	UPM Processor Board, 750w/750w Quiet (slot 21 U/L) (RoHS)
	6250266-10	QUPM Processor Board
4	5250034	UPM RF Detector Board, 750w (slot 19 U/L, slot 20 U/L)
	6250264*	UPM RF Detector Board, 750w/750w Quiet (slot 19 U/L, slot 20 U/L) (RoHS)
*See Table 28 for the appropriate board to be used.

Table 28. PGR Cabinet - UPM Modules
Cabinet Part Number	Description	RF Detector Board	UPM Processor Board
5373012-7**	PGR Cabinet, MR750w, 32ch	5250034	2359518-2
5396502-7**	PGR Cabinet, MR750w, 32ch	5250034	2359518-2
5481500-7	PGR Cabinet, MR750w, 32ch	6250264	6250266 (RoHS)
5741000	PGR Cabinet, MR750w (first used DV26)	6250264	6250266 (RoHS)
5499460-7	PGR Cabinet, MR750w, 32ch	6250264	6250266 (RoHS)
5499460-10	PGR Cabinet, MR750w, 32ch+	6250264	6250266 (RoHS)
**NOTE: Older PGR cabinets may be upgraded to MR Silent (Quiet). If the system has the MR Silent upgrade, use the newer boards RFDB 6250264 and UPM Processor board 6250266.
