Operator Workspace

Table 1. Operator Workspace
Item	Part Number	Description
1	8771241 or 8771241-81	24-Inch LCD Monitor HP HC240 or 24-Inch LCD Monitor Eizo EV2430 Note: Eizo EV2430 replaces HP HC240 and does not require a power adapter.
	5412946-2	HP HC240 Power Adapter
2	5763460	Two-Button USB Scroll Mouse
	5339070	Main Monitor DVI-D Cable
	5339069	USB Extension Cable
3	-	HP 8400 (DV24.0, DV25.0) (see GOC Computer Cabinet with HP8400)
3	-	HP Z400 (DV24.0, DV25.0) (see GOC Computer Cabinet with HP Z400)
3	-	HP Z420 (DV25.0, DV25.1) (see GOC Computer Cabinet with HP Z420)
3	-	Dell T5810 (DV25.1, DV26.0, DV26.0 with ICE, DV27.0, DV28.0) (see GOC Computer Cabinet with Dell T5810)
3	-	Dell T5820 (DV28.0) (see GOC Computer Cabinet with Dell T5820)
4	5272868	Dust Filter Kit (8400)
	5376172	Dust Filter FRU Kit
	2156158-103	DV24 Software Collector
	2156158-104	DV25 Software Collector
	2156158-148	DV25.1 Software Collector
	2156158-145	DV26 Software Collector
	2156158-152	DV27 Software Collector (includes DV27 Service Pack 01)
	2156158-155	DV28_R05 Software Collector
	2156158-164	DV29.0_R01 Software Collector (includes 29.0_R02 Service Pack 01)
	2156158-172	DV29.1 Software Collector (includes 29.1_R02 Service Pack 01)
	5904169	DV29.1_R02 Service Pack 1 (Service Pack DVD only)
	5165713	DVD Media for Linux - 50 Pack
	2156158-92	MR750w Software Collector M3 (23.0_V01 Only)
	5861614	Backup USB with Label

Table 2. Host PC compatibility
Host PC	Part number	Supported software
HP 8400	5183547-30	DV24.0, DV25.0
HP Z400	5370415	DV24.0, DV25.0
HP Z420	5922000	DV25.0, DV25.1
Dell T5810	8770011-21	DV25.1, DV26.0
Dell T5820	8780011-02	DV28.0 and later

GOC Computer Cabinet with HP8400

Table 3. GOC Computer Cabinet with HP8400
Item	Part Number	Description
1	5183547-30	HP 8400 (includes the following items) [when ordering host PC, also order GE Equipment Maintenance Sticker (5661793)]
		5183547-15	73GB SAS Hard Drive for PC
		5183547-20	Single 1GB DIMM
		5183547-36	Single 2GB DIMM
		5183547-22	DVD-ROM Drive
		5129534-3	Host PC CMOS Battery, 3V, CR2032 [when ordering battery, also order GE Equipment Maintenance Sticker (5661793)]
2	5184500	USB to RS422 Optically-Isolated Converter
3	46-271382P6	1 Pole, 15 Amp Circuit Breaker
4	5265358	1-Wire Collector FRU (includes the following items)
	5446227	1-Wire Collector FRU for (RoHS) (includes the following items)
		FRU collector includes humidity and temperature iButton, iButton holder, USB to RS422 converter, USB and sensor cables, Run E3019, and dual locking tape.
5	2395043	GOC Audio Assembly
5	2395043-2	GOC Audio Assembly
6	5262750	PDU Assembly
7	5139480-2	8-port Switch Kit with 4 Cushions
8	5435410-2	Fiber Optic Converter Box
8	5435410-8	IRD (replaces part number 5133768-2)
9	5267342	GOC Cable Collector (includes the following items)
		5270774*	Host Power Cable
		5270803*	Main LCD Monitor Power Cable
		5263413*	Run E3046 Main Monitor DVI-D Cable
		5264533*	Run E3047 SCIM-GOCAA cable
		5267826*	Audio Cable Assembly
		5270723*	GOCAA-PDU DC power cable
		5267389*	Run E3045 Modem Cable
		5272839*	Host Hub Ethernet Cable
		5272839-2*	Hub-front Port Ethernet Cable
		5264521*	Run E3048 Extension Cable
		5169105*	Run E3016 Y6 Cable
		5265059*	Host to IRDC DVI-D Cable
		5265784*	Host to IRDC USB Cable
		5270246*	IRDC Power Cable
*Item not sold as an individual FRU.

GOC Computer Cabinet with HP Z400

Table 4. GOC Computer Cabinet with HP Z400
Item	Part Number	Description
1	5370415	HP Z400 (includes the following items) [when ordering host PC, also order GE Equipment Maintenance Sticker (5661793)]
	5370415-8	HP Z400 Q600 (includes the following items) [when ordering host PC, also order GE Equipment Maintenance Sticker (5661793)]
		5370415-2	146GB SAS Hard Drive
		5370415-4	DVD-RW Optical Drive
		5370415-6	2GB RAM
		5370415-5	Graphics Card (for Host PC 5370415)
		5370415-7	Graphics Card (for Host PC 5370415-8)
		5129534-3	Host PC CMOS Battery, 3V, CR2032 [when ordering battery, also order GE Equipment Maintenance Sticker (5661793)]
2	5184500	USB to RS422 Optically-Isolated Converter
3	46-271382P6	1 Pole, 15 Amp Circuit Breaker
4	5364704	1-Wire Collector FRU with Z400 (includes the following items)
	5446227	1-Wire Collector FRU for (RoHS) (includes the following items)
		FRU collector includes humidity and temperature iButton, iButton holder, USB to RS422 converter, USB and sensor cables, Run E3019, and dual locking tape.
5	2395043-2	GOC Audio Assembly
6	5262750	PDU Assembly
7	5139480-2	8-port Switch Kit with 4 Cushions
8	5435410-2	Fiber Optic Converter Box
	5435410-8	IRD (replaces part number 5133768-2)
9	5389531	GOC Conversion Kit to DV with Z400 FRU
	5504776	GOC Conversion Kit to Z400 (RoHS)
10	5373029	Cable FRU Kit for GOC with Z400(includes the following items)
		5330291*	Run E3046 Main Monitor DVI-D Cable
		5330293*	Run E3047 SCIM-GOCAA Cable
		5330292*	Run E3048 USB Extension Cable
		5330289*	Run E3016 Y6 Cable
		5330294*	Host to IRDC DVI-D Cable
		5330295*	Host to IRDC USB Cable
		5330303*	IRDC Power Cable
*Item not sold as an individual FRU.

GOC Computer Cabinet with HP Z420

Table 5. GOC Computer Cabinet with HP Z420
Item	Part Number	Description
1	5922000	HP Z420 Host PC, requires minimum software DV25 (includes the following items) [when ordering host PC, also order GE Equipment Maintenance Sticker (5661793)]
		5922000-2	300GB SAS Hard Drive
		5922000-3	DVD-RW Optical Drive
		5129534-3	Host PC CMOS Battery, 3V, CR2032 [when ordering battery, also order GE Equipment Maintenance Sticker (5661793)]
2	5184500	USB to RS422 Optically-Isolated Converter
3	46-271382P6	1 Pole, 15 Amp Circuit Breaker
4	5446227	1-Wire Collector FRU for (RoHS)
5	2395043-2	GOC Audio Assembly
6	5262750	PDU Assembly
7	5139480-2	8-port Switch Kit with 4 Cushions
8	5435410-2	Fiber Optic Converter Box
8	5435410-8	IRD (replaces part number 5133768-2)
9	5501276	GOC Conversion Kit to Z420
	5389531	GOC Conversion Kit to DV with Z400 FRU (includes the following items)
		5389626*	GOC Host PC Mounting Assembly for Conversion Kit
		5364484*	GOC PC holder
		5272817*	Screw for Host (2)
		5389627*	GOC Host PC Cover Assembly for Conversion Kit
		5330295-2*	Host to USB-Serial Converter USB Cable
		5330301*	Audio Cable Assembly
		5330309*	Host-hub Ethernet Cable
		5192248-4*	Dust Filter
		U0202AC*	Self-Locking Cable Tie, 176 N Tensile Strength, 150 mm Length, 35 mm Bundle (10)
10	5373029	GOC cable collector FRUCable FRU Kit for GOC with Z400 (includes the following items)
		5330291*	Run E3046 Main Monitor DVI-D Cable
		5330293*	Run E3047 SCIM-GOCAA Cable
		5330292*	Run E3048 USB Extension Cable
		5330289*	Run E3016 Y6 Cable
		5330294*	Host to IRDC DVI-D Cable
		5330295*	Host to IRDC USB Cable
		5330303*	IRDC Power Cable
*Item not sold as an individual FRU.

GOC Computer Cabinet with Dell T5810

Table 6. GOC Computer Cabinet with Dell T5810
Item	Part Number	Description
1	8770011-21	Dell T5810 Host PC (includes the following items) [when ordering host PC, also order GE Equipment Maintenance Sticker (5661793)]
		8770011-101	DVD-ROM 8x Slim-Line 12.7 mm Optical Drive
		8770011-102	512 GB SATA SSD
		5129534-3	Host PC CMOS Battery, 3V, CR2032 [when ordering battery, also order GE Equipment Maintenance Sticker (5661793)]
2	5192248-5	Dust Filter
3	2395043-2	GOC Audio Assembly
4	5447829	GOC PDU Assembly (RoHS)
5	5139480-2	8-port Switch Kit with 4 Cushions
Not shown	5727367	IPv6 Hardware
Not shown	5732423	T5810 Mount Kit
Not shown	5184500	USB to RS422 Optically-Isolated Converter
Not shown	5446227	1-Wire Collector FRU for (RoHS)
Not shown	5364705	GOC Cable Collector FRU. Contains: 5330291 Run E3046 Main Monitor DVI-D Cable* 5330293 Run E3047 SCIM-GOCAA Cable* 5330292 Run E3048 USB Extension Cable* 5330289 Run E3016 Y6 Cable* 5330294 Host to IRDC DVI-D Cable* 5330295 Host to IRDC USB Cable* 5330303 IRDC Power Cable* 5374817 Common Cable Kit (Audio, Power, Ethernet) with Z400* *Item not sold as an individual FRU.
Not shown	5731254	Antivirus Software
Not shown	5730828	GOC SCIM, Audio, and Power Cable Assembly 1

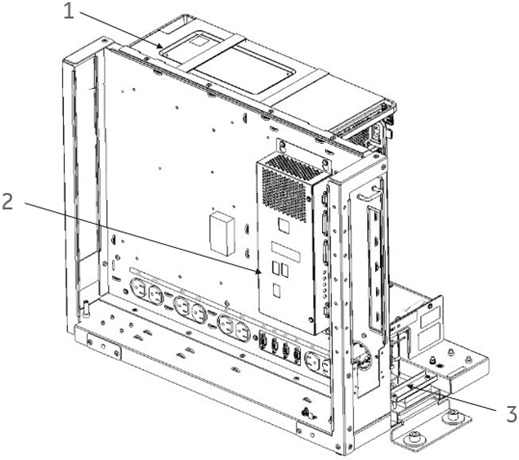

GOC Computer Cabinet with Dell T5820


Number	Part Number	Description
1	8780011-02	Dell T5820 MR Global Host W-2123 64GB Nvidia SSD
Not shown	8780011-101	Dell Slimline DVD +/- RW SATA Drive for T5820XL Workstation
Not shown	8780011-102	512GB SATA III SFF SSD 3D-TLS or V NAND Memory
Not shown	5129534-3	Host PC CMOS Battery, 3V, CR2032 [when ordering battery, also order GE Equipment Maintenance Sticker (5661793)]
2	2395043-2	GOC Audio Assembly
3	5502029-2	GOC Power Distribution Unit with 1-Wire
Not shown	5793940	GOC Dust Filter for T5820
Not shown	5796792-4	GOC Cable Collector for GOC with Dell T5820 PC
Not shown	5184500	USB to RS422 Optically-Isolated Converter
Not shown	5537279	1-Wire Collector FRU (Humidity & Temperature iButton, iButton Holder, USB to RS422 Converter, USB, Power Button, and Sensor Cables, and Dual Locking Tape)
Not shown	5125751	Stamped Aluminum GE Logo, 40 mm
Not shown	5543121-3	HDMI Splitter Assembly FRU
Not shown	5588967	GOC Power Switch
Not shown	5433295	Bulkhead Feedthru, Shielded RJ45 (RoHS)
Not shown	2341779	Dual Lock Tape, 400 Stems Per Square Inch
Not shown	2341779-2	Dual Lock Tape, 170 Stems Per Square Inch
Not shown	46-303268P1	Rating Plates Product Locator Card Form
Not shown	5730828	GOC SCIM, Audio, and Power Cable Assembly 1. Contains: 5339070 Main Monitor DVI-D Cable 5339069 USB Extension Cable 5502025-3 HDMI Splitter-J4 to Graphic Card on Host PC, HDMI to DVI Long Cable 5502128 Host-Hub Ethernet Cable 5502128-2 Hub-FrontPort Ethernet Cable 5539066 DCPS MEMS Bracket* 5761800 OW-PDM-J7 to HDMI splitter-J1, Power and 1-Wire cable 5502031 OW-PDM-J9 to GOC power on switch 5731709 RUN E3049 to GOC-PDM-J2 and to Host PC USB Port 5731703 USB Cable, 10 Pin Connector to USB Type A
Not shown	5796792-4	GOC Cable Collector for GOC with Dell T5820 PC. Contains: 5818374 Host to IRDC USB Cable 5818375 Host to IRDC J2 5818373 IRDC power cable 5818377 IRDC J5 to iButton 5818376 IRDC to RS 422 and E3018 5818379 Host to USB-Serial Converter USB Cable 5820859 GOCAA J18 to FJ5 and FJ6
* Software version DV29 and later introduces support for a non-MEMS system configuration. Existing or upgraded systems will continue to use the MEMS power supply. Newly installed or upgraded systems may not have the MEMS power supply. Identify the presence or absence of MEMS on your system by looking for the MEMS DC Power Supply Assembly (part number 6859128) in the power supply rack of the ISC.

SCIM and Keyboard

If keyboard is to be replaced, also order 2 x 4 inch adhesive-backed Velcro (46-317475P2) to attach to bottom of new keyboard.

Table 7. SCIM and Keyboard
Item	Part Number	Description
1	5143798-7	Standard USB US English Keyboard
	5143798-8	Standard USB French Keyboard
	5143798-9	Standard USB German Keyboard
	5143798-10	Standard USB Spanish Keyboard
	5143798-11	Standard USB Italian Keyboard
	5143798-12	Standard USB Portuguese Keyboard
	5143798-13	Standard USB Scandinavian Keyboard
	5183547-46	Standard USB Danish Keyboard
	5183547-47	Standard USB Dutch Keyboard
	5183547-48	Standard USB Norwegian Keyboard
2	5148389-2	MR SCIM – Black with English Overlay
	5480818-2	MR SCIM – Black with English Overlay RoHS IEC Third Edition
	5148389-9	Global Overlay Set for MR SCIM – Overlay ONLY (includes the following language overlays: French, German, Italian, Portuguese, Spanish, Mandarin, Danish, Dutch, Norwegian, Finnish, Swedish, Scandinavian, Japanese and Korean)
	5480818-9	Global Overlay Set for MR SCIM RoHS IEC Third Edition – Overlay ONLY (includes the following language overlays: French, German, Italian, Portuguese, Spanish, Mandarin, Danish, Dutch, Norwegian, Finnish, Swedish, Scandinavian, Japanese and Korean)
	46-317475P2	Adhesive-Backed Velcro, 2 x 4 inches
