Side Top Cover

Prerequisites

Table 3. Safety

danger

Strong Magnetic Field!
Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Signa Magnet.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

1 Left Side Top Cover

Procedure

Remove following covers.
- Side Middle Cover (Left)
- Side Cover(Left Rear)
Remove the four (4) M10 screws at the base of the Left Top Cover.

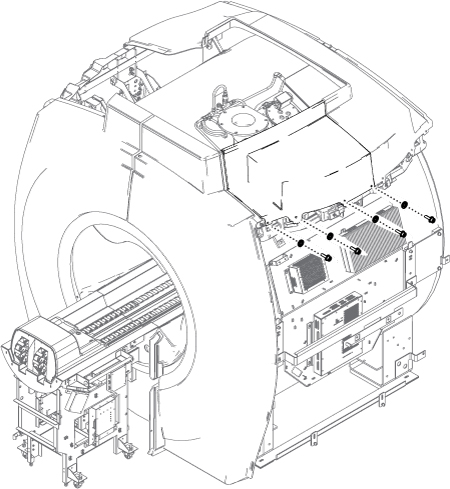

Figure 1. Screws
Remove the Left Side Top Cover.

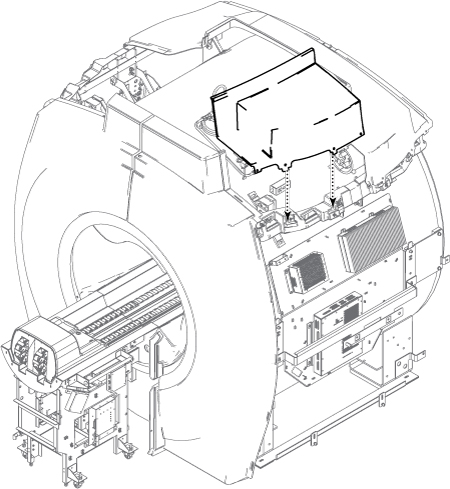

Figure 2. Left Side Top Cover Removal
Installation is reverse order of removal.

2 Right Side Top Cover

Procedure

Remove the Right Side Top Cover by the same methods as “Left Side Top Cover”.
Installation is reverse order of removal.

Finalization

No finalization steps.
