PHPS Lite 2

Prerequisites

Procedure

  1. Remove L Upper Front Cover and R Upper Front Cover. Refer to SC Cover Removal.
  2. Disconnect all connectors from front panel of PHPS Lite 2.
  3. Remove 2 screws of front side.

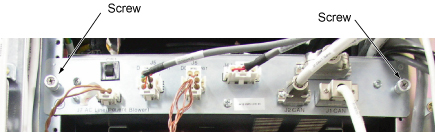

    Figure 1. PHPS Lite 2

  4. Slide PHPS Lite 2 forward, and remove PHPS Lite 2.

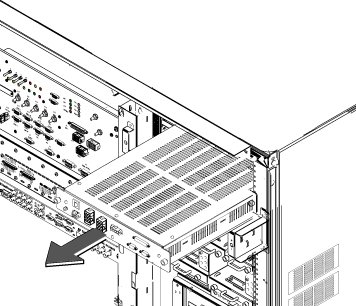

    Figure 2. PHPS Lite 2

  5. Restore PHPS-Lite 2 by reverse order of removal.
