Leak Sensor 2 (Tray1)

Prerequisites

Procedure

  1. Remove Front Lower Cover. Refer to SC Cover Removal.
  2. Disconnect the two connectors of leak sensor 2 and 3.
  3. Loosen front bottom side screw of water tray.
    4. Notice Image
    • notice
    • Pay attention to the hoses from MCS/LSC when pulling out the water tray.
    Notice Image
    • notice
    • Pay attention for leak sensor not to be wet when pulling out the water tray.
  4. Withdraw water tray assy.

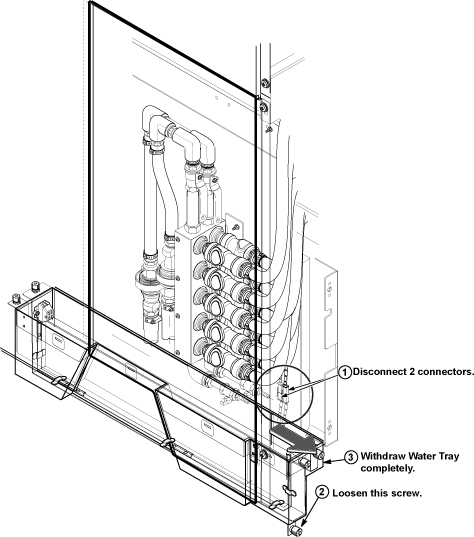

    Figure 1. Water Tray

  5. Remove Water Tray Leak Sensor 2 Assy from the water tray by loosening 2 screws.

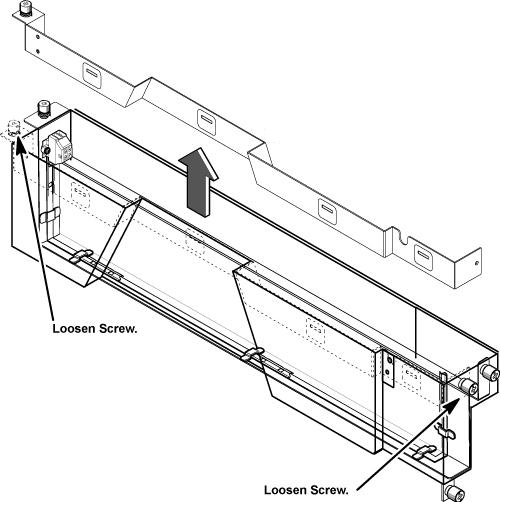

    Figure 2. Leak Sensor 2

    6. Notice Image
    • notice
    • Note that there's a plate at the back of water tray when restoring.
  6. Installation is reverse order of removal.
