Removing the host computer

Remove the host computer from the GOC when upgrading the system.

1. Remove the two screws that secure the left side panel of the GOC.

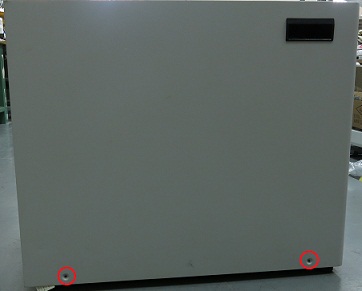

   Figure 1. GOC left side panel



   note: The side panel has a short ground lead connecting it to the main chassis. When removing the side panel, do not strain this ground lead.
2. Disconnect the short ground lead that connects the side panel to the GOC main chassis at the center of the lead.

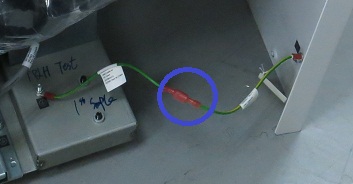

   Figure 2. Left side panel ground lead



3. Remove the left side panel and put it in a safe place.
4. Make sure all the cables are properly labeled. If not, note their locations for reattachment.
5. Remove all the cables connected to the computer.
6. Remove the strap(s) from the computer.
7. Remove the host computer from the GOC.
   Loosen or remove the brackets if necessary.
