1.5T Neurovascular Array Mirror Replacement

Prerequisites

Table 1 Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-

Table 2 Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Pair of Adjustable Pliers	1	-	-	-
#1 Philips Screwdriver	1	-	-	-

Table 3 Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
5117092-7: 1.5T NV Array Mirror Replacement Kit	1	-	-	-

Follow this process to replace the mirror assembly on the 1.5T Neurovascular (NV)Array by Medrad (M3087JJ).

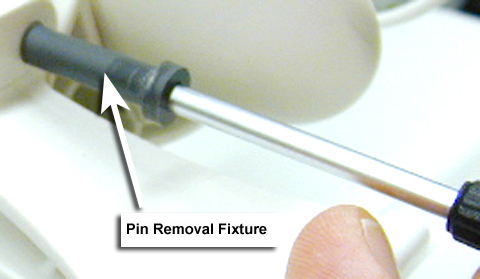

Insert a #1 Philips screwdriver into the pin removal fixture supplied with the replacement mirror. See Figure 1.

Figure 1. Positioning the Pin Removal Fixture

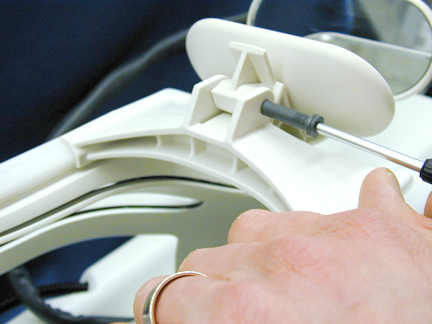

Place the pin removal fixture over the mirror pivot pin and begin to apply pressure. See Figure 2.

Figure 2. Applying Pressure to the Pin Removal Fixture

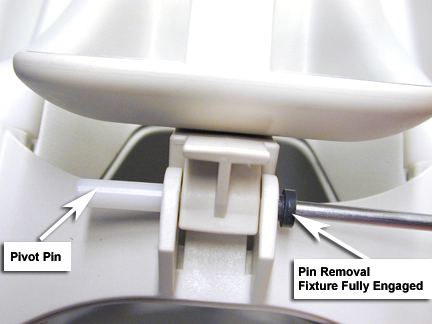

Apply pressure to the pin removal fixture until the fixture is fully engaged. See Figure 3.

Figure 3. Pin Removal Fixture Fully Engaged

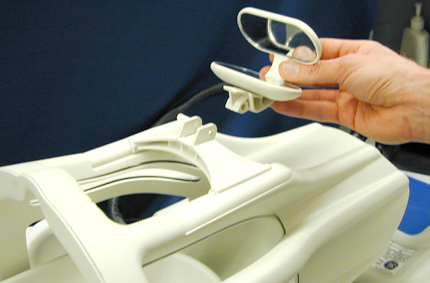

Remove and replace the mirror assembly. See Figure 4.

Figure 4. Removal/Replacement of Mirror Assembly

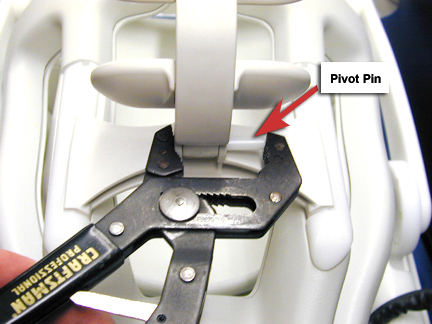

Press the mirror pivot pin back into place. See Figure 5.

Figure 5. Installing Mirror Pivot Pin

No finalization steps.
