1.5T 8-CH CTL Cable Replacement

Prerequisites

Table 1 Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	30 minutes	Not Applicable

Table 2 Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Standard Tool Set	1	-	-	-

Table 3 Replacement parts
Item	Quantity	Effectivity	Part number	Manufacturer
FRU Cable, GE Signa HD 1.5T 8CH CTL	1	-	2417263	-

Lay the CTL coil on its side and remove the 19 screws holding the base cover on the unit as shown in Figure 1.

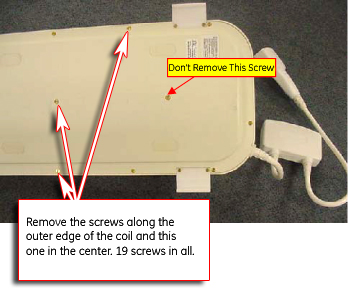

Figure 1. Remove Screws
Disconnect the RF cables and the DC wires from the Multiplexer Board, as shown in Figure 2.

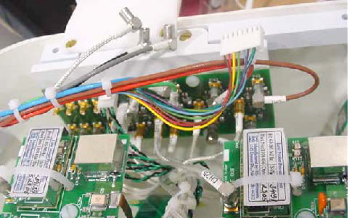

Figure 2. Disconnect Cabling From Multiplexer Board
Remove two screws on the clamp of Strain Relief as shown in Figure 3.

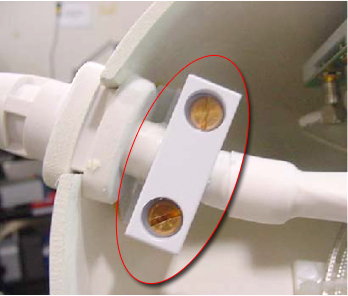

Figure 3. Remove Two Strain Relief Screws
Remove the cable from the base of the coil.
Insert the new cable to the coil.
Connect the DC wires to the multiplexer board.
Connect the corresponding RF cables to the multiplexer board (note: the cables are marked for proper placement).
Place the clamp and tighten the two screws.
Replace the bottom cover and the 19 retaining screws.

No finalization steps.
