T/R Quad Extremity Coil Parts

Overview

This document identifies field replaceable units and additional accessories for the Invivo T/R Quad Extremity Coil.

Field Replaceable Units

Table 1 Field Replaceable Units
Item Description GE Part Number Supplier Part Number
1.5T
1 HD T/R Quad Extremity Assembly with Cable 5147225-2 870323
2 HD T/R Quad Extremity Coil Cable Assembly 5147225-6 870290
3 Coil Repair Kit (Table 2) 2357819-10 14234

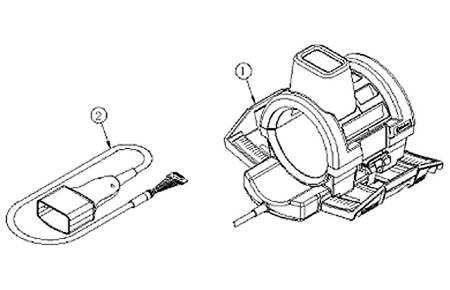

Figure 1. Field Replaceable Units

Additional Accessories

Table 2 Spare Parts Repair Kit
Item Quantity Description Supplier Part Number
1 2 Draw Latch 20074P2
2 4 No. 6-32 x 0.438 FHMS, Brass Screws 20117P25
3 2 Handle, Coil Lock 19711P1
4 2 Cover, Lock Handle 19712P1
5 4 No. 4-40 x 0.375 PHMS, Brass Screws 20136P2
6 1 T-Bracket 19713P1
7 3 No. 10-32 x 0.375 PHMS, Brass Screws 20136P14
8 4 Rubber Bumper 19727
9 4 No. 6-32 x 0.50 PHMS, Brass Screws 20136P6

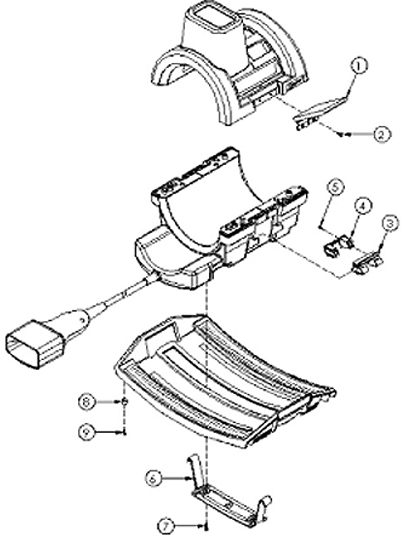

Figure 2. Spare Parts Repair Kit

The part number’s Revision will be the last digit and replace the * (asterisk).
